Raymarine Axiom+RV MFD No Transducer Lighthouse North America Chart.

$2,226.95

~~$2,964.99~~ $2,226.95

Sold out

-25%

Shipping calculated at checkout.

Low stock: 6 left

Screen Size: 12 inch 12 inch 7 inch

Description

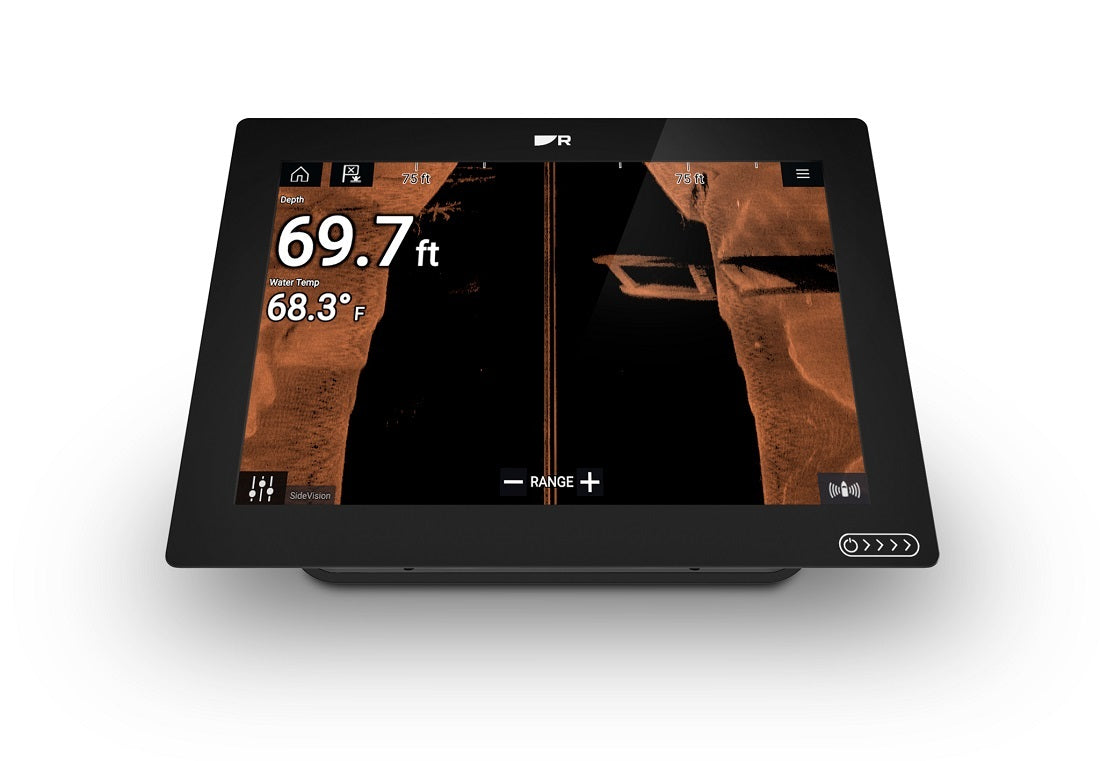

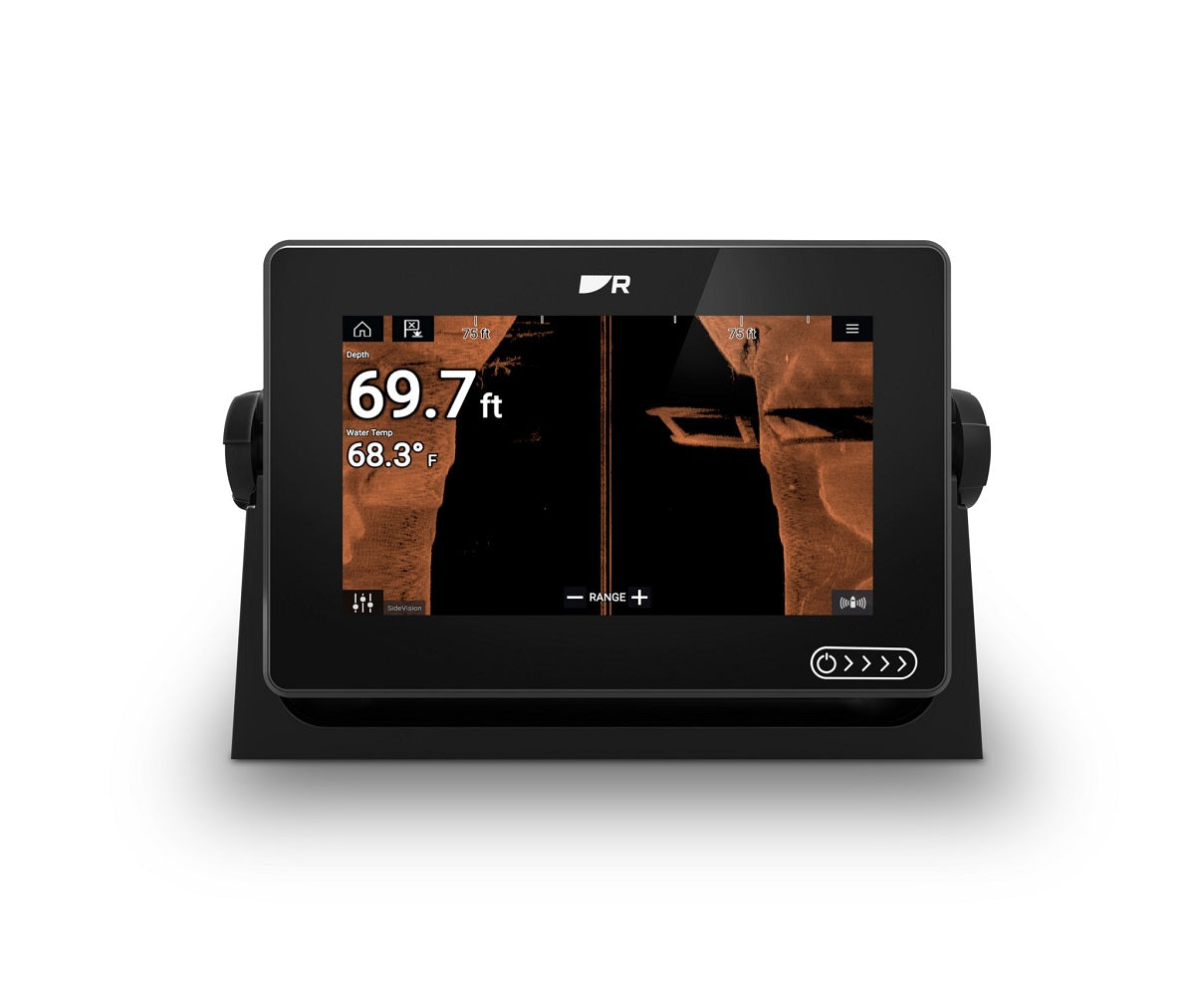

Raymarine Axiom+ RealVision™ Multifunction Displays (No Transducer)

Models: Axiom+ 12 RV E70639-00-102 | Axiom+ 7RV E70635-00-102
Includes Lighthouse North America mSD Charts

PRODUCT DESCRIPTION

The Raymarine Axiom+ RV series represents the next generation of award-winning multifunction displays. Equipped with a powerful quad-core processor, LightHouse 3 OS, and RealVision™ 3D sonar capability, Axiom+ delivers unmatched chart redraws, network integration, and sonar performance. Whether you choose the full-size 12-inch Axiom+ 12 RV or the compact 7-inch Axiom+ 7RV, you’ll enjoy a sunlight-viewable IPS HydroTough™ touchscreen, a fully networkable platform, and support for RealVision™, CHIRP, DownVision™, and SideVision™ sonar technologies.

With increased internal storage, enhanced GPS sensitivity, and compatibility across LightHouse, C-MAP, and Navionics charts, Axiom+ is built to perform and expand with your boat’s electronics network.

KEY FEATURES

Fluid, fast chart redraws on LightHouse, Navionics, and C-MAP charts
Quad-core processor for ultra-smooth responsiveness
LightHouse 3 OS — intuitive, customizable, and app-ready
RealVision™ 3D sonar-capable (requires compatible transducer)
HydroTough™ nano-coated IPS touchscreen — repels water and smudges
ClearCruise™ Augmented Reality ready
10 Hz GPS/GNSS receiver with 4× improved sensitivity
Network with radars, sonar modules, autopilot, cameras, and displays
Rugged IPX6 / IPX7 waterproof construction
Compatible with FLIR thermal, Quantum radar, Evolution autopilot, and EmpirBus/C-Zone digital switching

COMPARISON TABLE

Feature	Axiom+ 12 RV	Axiom+ 7RV
Model	E70639-00-102	E70635-00-102
Display Size	12.1" IPS	7.0" IPS
Resolution	1280 × 720 (WXGA)	1024 × 600 (WSVGA)
Brightness	1,800 nits	1,500 nits
Touchscreen	Multitouch HydroTough™	Multitouch HydroTough™
Processor	Quad-core	Quad-core
GPS/GNSS	10 Hz (GPS/GLONASS/Galileo/Beidou)	10 Hz (GPS/GLONASS/Galileo/Beidou)
Internal Storage	16 GB SSD	16 GB SSD
External Memory	1 × microSD	1 × microSD
Networking	1 × RayNet, NMEA2000 (DeviceNet), Wi-Fi, Bluetooth	1 × RayNet, NMEA2000 (DeviceNet), Wi-Fi, Bluetooth
Power (max)	19.96 W @ 12 VDC	7.34 W (RV version 9.84 W) @ 12 VDC
Waterproof Rating	IPX6 / IPX7	IPX6 / IPX7
Mounting Options	Surface, Flush, Trunnion	Surface, Flush, Trunnion
Sonar (Built-in)	RealVision™ 3D, High CHIRP, DownVision™, SideVision™	RealVision™ 3D, High CHIRP, DownVision™, SideVision™
Sonar Depth (max)	900 ft (CHIRP), 600 ft (DownVision), 300 ft (SideVision / RV3D)	900 ft (CHIRP), 600 ft (DownVision), 300 ft (SideVision / RV3D)
Operating Temp	−25°C to +55°C	−25°C to +55°C
Dimensions (W × H × D)	12.36 × 8.54 × 3.0 in	7.92 × 5.24 × 3.0 in
Radar Compatibility	Quantum, Digital, HD Colour, Magnum	Quantum, Digital, HD Colour, Magnum
Autopilot Control	Yes (Evolution Autopilot)	Yes (Evolution Autopilot)
Video / Cameras	Up to 10 IP cameras	Up to 10 IP cameras
Digital Switching	Yes (EmpirBus / C-Zone)	Yes (EmpirBus / C-Zone)
Audio / SiriusXM	NMEA2000 / Bluetooth / SiriusXM	NMEA2000 / Bluetooth / SiriusXM
Augmented Reality	ClearCruise™ AR	ClearCruise™ AR
Thermal / FLIR	M232, M300, M400, M500	M232, M300, M400, M500
