Raymarine Axiom+ MFD No Transducer No Chart.

$2,914.99

~~$2,914.99~~ $2,914.99

Sold out

Shipping calculated at checkout.

16 in stock

Screen Sizes: 12 inch 12 inch 7 inch

Description

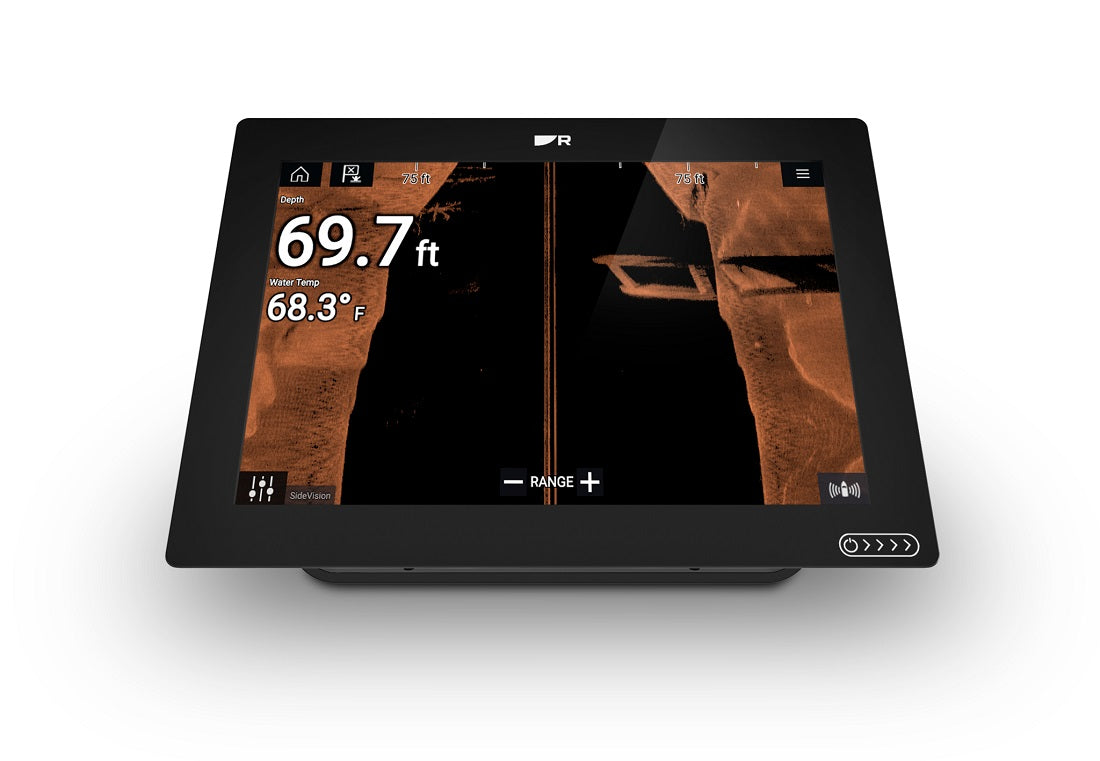

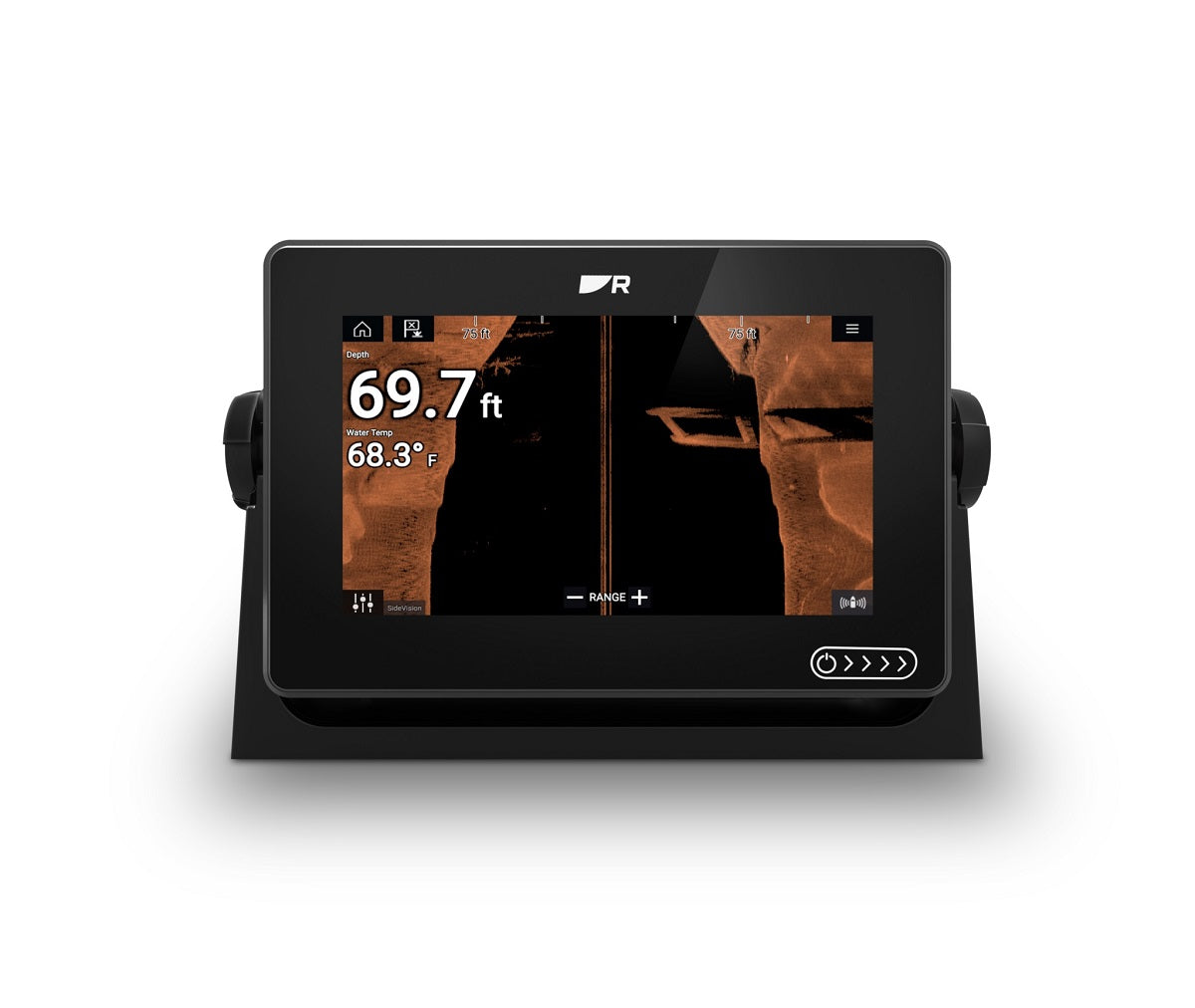

Raymarine Axiom+ 12RV 12in, 7RV 7in Series Muilti-Function Display with RealVision Sonar - No Transducer No Chart

Models: Axiom+ 12RV (E70639) | Axiom+ 7RV (E70635)

PRODUCT DESCRIPTION

Experience high-performance navigation and sonar with the Raymarine Axiom+ Series. Powered by a fast quad-core processor and running the intuitive LightHouse 3 operating system, Axiom+ delivers fluid chart redraws, crisp RealVision™ 3D sonar imagery, and responsive touch control across bright, high-definition IPS displays.

The Axiom+ family is designed for power, speed, and clarity, featuring new day/night color palettes, built-in high-sensitivity GPS/GNSS, ClearCruise™ Augmented Reality capability, and networking support for radar, sonar modules, cameras, autopilot, and digital switching. With integrated Wi-Fi and Bluetooth, Axiom+ connects seamlessly to mobile devices and other Raymarine components for a fully expandable helm system.

Built tough with Nano-coated, impact-resistant HydroTough™ glass, Axiom+ displays repel water, oil, and fingerprints while providing reliable touch response in all conditions. The Axiom+ Series is ready to power your next adventure, from offshore cruising to sport fishing.

KEY FEATURES

Quad-core processor for fast chart redraws and system response
LightHouse 3 OS for intuitive navigation and sonar control
Bright IPS displays with 25% higher brightness than previous Axiom models
HydroTough™ glass screen repels water and smudges
ClearCruise™ Augmented Reality compatible
Built-in RealVision™ 3D, CHIRP, DownVision™, and SideVision™ sonar (RV models)
Supports external sonar modules (CP100/200/370/470/570/RVX1000)
Built-in 10 Hz GPS/GNSS receiver with GPS/GLONASS/Galileo/Beidou support
Network with Quantum, HD, Super HD, and Magnum radars
Compatible with FLIR thermal cameras, Evolution autopilot, and digital switching
Integrated Wi-Fi and Bluetooth for mobile connectivity
Chart compatibility: LightHouse Charts, Navionics, and C-MAP

COMPARISON TABLE

Feature	Axiom+ 12RV (E70639)	Axiom+ 7RV (E70635)
Display Size	12.1" High-Density IPS	7.0" High-Density IPS
Resolution	1280 × 720 (WXGA)	1024 × 600 (WSVGA)
Brightness	1800 nits	1500 nits
Viewing Angle	88° (All directions)	85° (All directions)
Dimensions (W × H × D)	12.36 × 8.54 × 3.0 in	7.92 × 5.24 × 3.0 in
Power Consumption	19.96 W	7.34 W (9.84 W RV version)
Built-in Sonar	RealVision™ 3D, DownVision™, SideVision™, CHIRP	RealVision™ 3D, DownVision™, SideVision™, CHIRP
GPS	Built-in 10 Hz (GPS/GLONASS/Galileo/Beidou)	Built-in 10 Hz (GPS/GLONASS/Galileo/Beidou)
Networking	RayNet Ethernet, NMEA2000 via DeviceNet	RayNet Ethernet, NMEA2000 via DeviceNet
Wi-Fi / Bluetooth	Yes / v4.0	Yes / v4.0
External Memory	1 × MicroSD Slot	1 × MicroSD Slot
Internal Storage	16 GB Solid State	16 GB Solid State
Waterproof Rating	IPX6 / IPX7	IPX6 / IPX7
Operating Temp	-25 °C – +55 °C	-25 °C – +55 °C
Mounting Options	Surface, Flush, Trunnion	Surface, Flush, Trunnion
Radar Support	Quantum, Digital, HD, Magnum	Quantum, Digital, HD, Magnum
Autopilot & Digital Switching	Yes	Yes
Thermal Camera Support	FLIR AX8, M232, M300, M400, M500	FLIR AX8, M232, M300, M400, M500
