Raymarine Axiom+ MFD RV100 Transom Transducer Lighthouse North America Chart.

Raymarine Axiom+12 RV, 7 RV Series MFD RV100 Transom Transducer Lighthouse North America Chart

Models: Axiom+ 12 RV (E70639-03-102) | Axiom+ 7RV (E70635-03-102)

PRODUCT DESCRIPTION

The Raymarine Axiom+ RV Series delivers professional-level navigation and sonar performance in a sleek, responsive package. Powered by a quad-core processor and running the intuitive LightHouse 3 operating system, Axiom+ offers fluid chart redraws, seamless touch control, and advanced RealVision™ 3D sonar for a complete view beneath your vessel.

The sunlight-viewable IPS displays feature up to 25% greater brightness, nano-coated glass for superior clarity, and wide viewing angles. Axiom+ units are fully networkable with radars, sonar modules, cameras, autopilots, and other Raymarine devices for a complete helm integration. Built-in GNSS with enhanced sensitivity ensures pinpoint positioning, while built-in Wi-Fi and Bluetooth enable wireless control and connectivity.

Whether you’re cruising, fishing, or exploring, Axiom+ RV brings together power, clarity, and simplicity in a robust, all-in-one MFD solution.

Key Features:

• Quad-core processor for ultra-fast chart redraw and seamless operation

• LightHouse 3 OS for intuitive, touch-optimized control

• RealVision™ 3D sonar with CHIRP DownVision, SideVision, and High CHIRP

• ClearCruise™ Augmented Reality-capable for smarter navigation

• Nano-coated HydroTough™ glass for water, oil, and smudge resistance

• IPS display with high brightness (up to 1,800 nits) and wide viewing angles

• Built-in 10 Hz GPS/GNSS receiver with 4x higher sensitivity

• Compatible with LightHouse, Navionics, and C-MAP charts

• Network-ready via RayNet, NMEA2000, Wi-Fi, and Bluetooth

• Supports Raymarine Quantum, Magnum, and HD Color radars

• Evolution autopilot, FLIR thermal camera, AIS, and digital switching integration

---

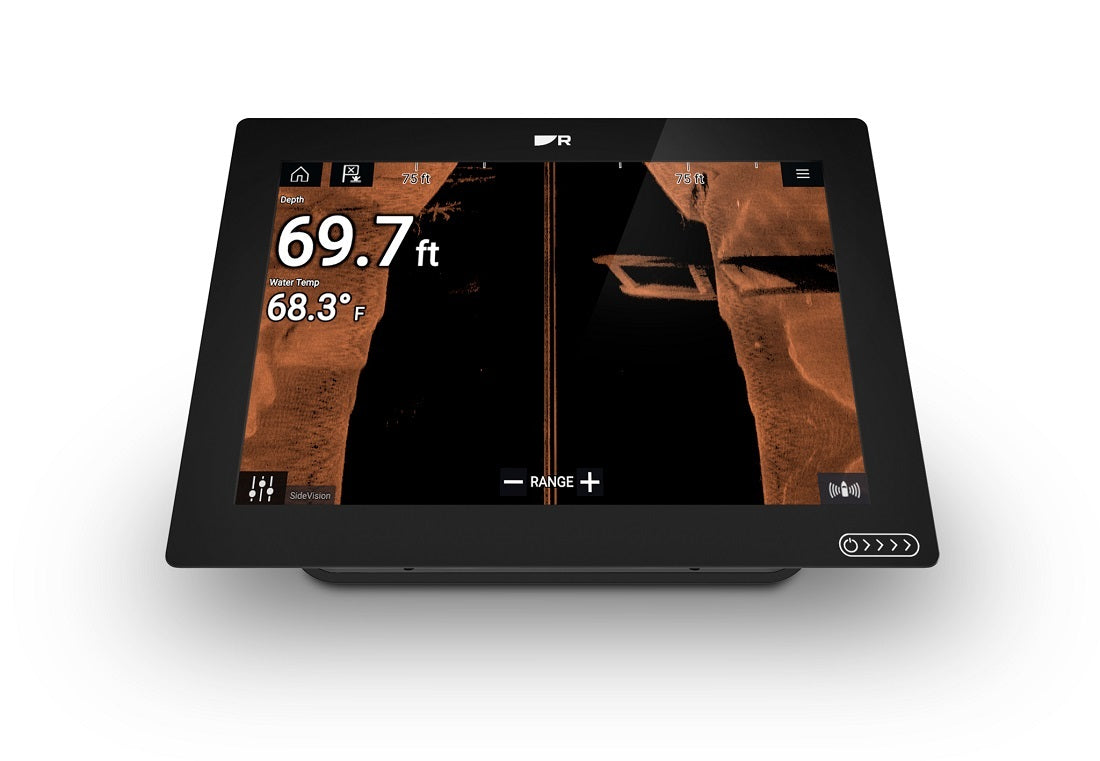

Raymarine Axiom+ 12 RV

Model: E70639-03-102

Display: 12.1" IPS, 1280x720, 1,800 nits brightness
Power: 12V DC, 19.96W (full brightness)
Sonar: Built-in RealVision™ 3D, CHIRP DownVision, SideVision, High CHIRP
GNSS: Built-in GPS/GLONASS/Galileo/Beidou (10 Hz, 28-channel)
Networking: 1x RayNet Ethernet, NMEA2000 (DeviceNet), Wi-Fi, Bluetooth
Cartography: LightHouse, Navionics, and C-MAP
Memory: 16 GB internal + MicroSD slot
Mounting: Surface, Flush, or Trunnion
Waterproof: IPX6/IPX7
Dimensions (W x H x D): 12.36 x 8.54 x 3.0 in

WHAT’S IN THE BOX

• Axiom+ 12 RV Multifunction Display

• RV100 Transducer

• Trunnion bracket and knobs

• Suncover (Trunnion mount)

• Panel mount gasket

• 4x M5x58 threaded studs and 4x M5 thumb nuts

• Power/NMEA2000 cable (1.5 m power lead, 0.5 m NMEA2000 lead)

• DeviceNet to SeaTalkng adaptor cable (120 mm)

• Rear mounting brackets

• LightHouse North America Charts microSD card

• Documentation pack

---

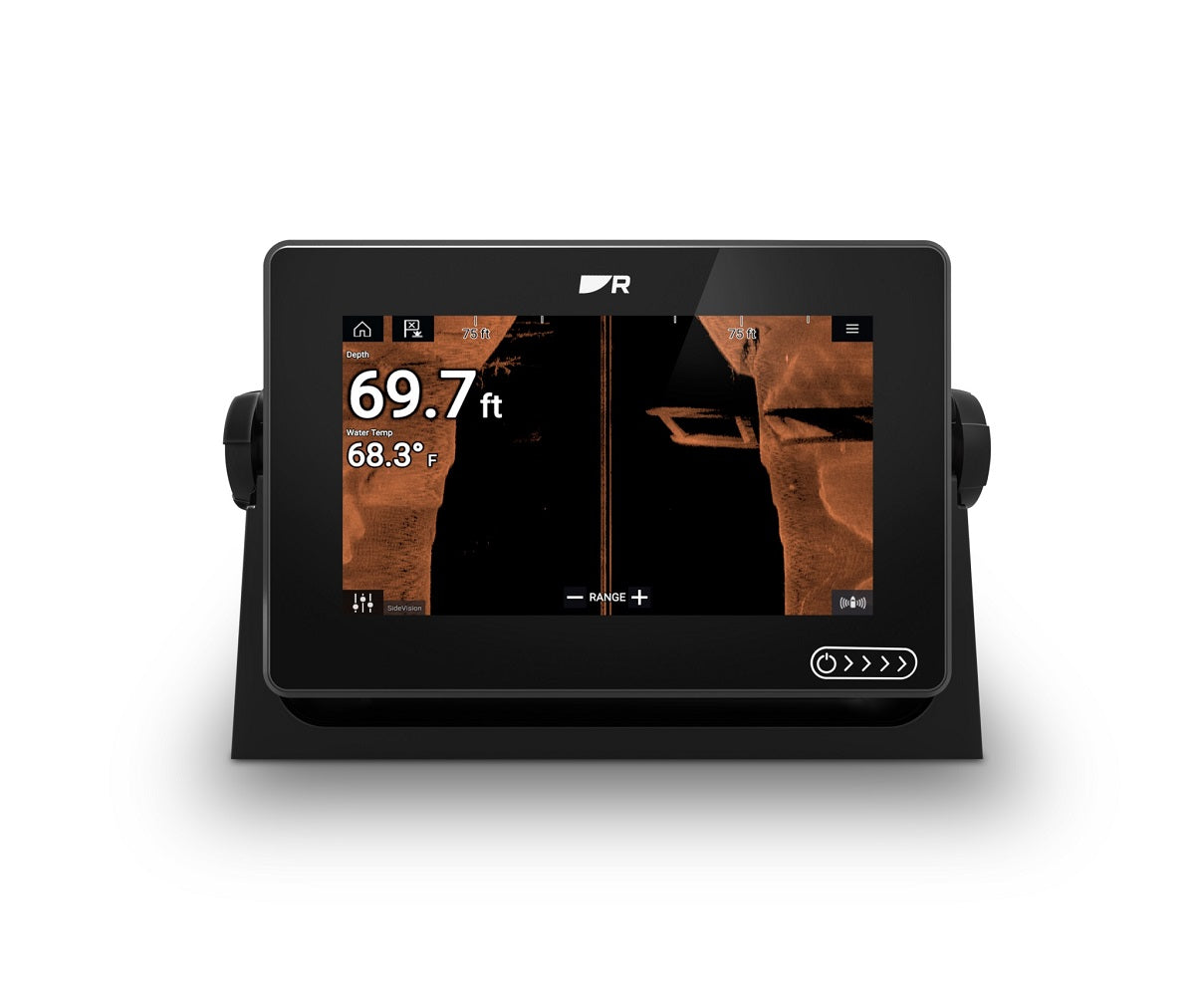

Raymarine Axiom+ 7RV

Model: E70635-03-102

Display: 7" IPS, 1024x600, 1,500 nits brightness
Power: 12V DC, 9.84W (RV Sonar version)
Sonar: Built-in RealVision™ 3D, CHIRP DownVision, SideVision, High CHIRP
GNSS: Built-in GPS/GLONASS/Galileo/Beidou (10 Hz, 28-channel)
Networking: 1x RayNet Ethernet, NMEA2000 (DeviceNet), Wi-Fi, Bluetooth
Cartography: LightHouse, Navionics, and C-MAP
Memory: 16 GB internal + MicroSD slot
Mounting: Surface, Flush, or Trunnion
Waterproof: IPX6/IPX7
Dimensions (W x H x D): 7.92 x 5.24 x 3.0 in

WHAT’S IN THE BOX

• Axiom+ 7RV Multifunction Display (with trunnion adaptor)

• RV100 Transducer

• Trunnion bracket and knobs

• Suncover (Trunnion mount)

• Panel mount gasket

• 4x M5x58 threaded studs and 4x M5 thumb nuts

• Power/NMEA2000 cable (1.5 m power lead, 0.5 m NMEA2000 lead)

• DeviceNet to SeaTalkng adaptor cable (120 mm)

• LightHouse North America Charts microSD card

• Documentation pack

---
