Raymarine Axiom XL MFD Series.

Raymarine Axiom XL 24in, 22in  Series Chart Plotter / MFD

Models: Axiom XL 24 (E70401) | Axiom XL 22 (E70515)

---

PRODUCT DESCRIPTION

The Raymarine Axiom XL series represents the pinnacle of premium glass-bridge marine displays. Engineered for professional captains and luxury yacht installations, the Axiom XL family combines sleek all-glass design, Full HD IPS displays, and Raymarine’s powerful LightHouse 3 OS to deliver a fast, fluid, and intuitive navigation experience.

Driven by a quad-core processor, Axiom XL MFDs integrate seamlessly with radar, sonar, thermal cameras, and digital switching systems. Designed for total helm control, users can operate via multi-touch gestures or add the RMK-10 remote keypad for full command in any sea condition.

Each Axiom XL features three RayNet Ethernet ports, HDMI video input and output, and support for up to four simultaneous camera feeds, including FLIR thermal imaging. The system’s integrated Wi-Fi and Bluetooth connectivity enable streaming, control, and integration with LightHouse Apps such as Netflix, Spotify, and Lumishore lighting.

With their rugged IPX6/IPX7 waterproof construction, Axiom XL MFDs bring total situational awareness and elegant power to any helm, whether you’re navigating, fishing, or managing vessel systems.

---

KEY FEATURES

• Full HD multi-touch IPS displays (1080p and WUXGA)

• Quad-core processor for blazing-fast performance

• Powered by LightHouse 3 OS — clean, fast, and intuitive

• 3 RayNet Ethernet ports for radar, sonar, cameras, and multi-display integration

• HDMI input for PC mirroring and HDMI output for external monitors

• View up to 4 IP or analog camera streams simultaneously

• Integrated Wi-Fi and Bluetooth for mobile apps and audio streaming

• Compatible with FLIR ClearCruise™ thermal imaging and Quantum 2 Doppler radar

• Optional RVX1000 3D CHIRP sonar module for advanced fishfinding

• Supports digital switching, Seakeeper, and Lumishore integration

• Available in 21.5" FHD and 24" WUXGA sizes

• Optimized for flush or surface mounting with an elegant all-glass design

---

WHAT’S IN THE BOX

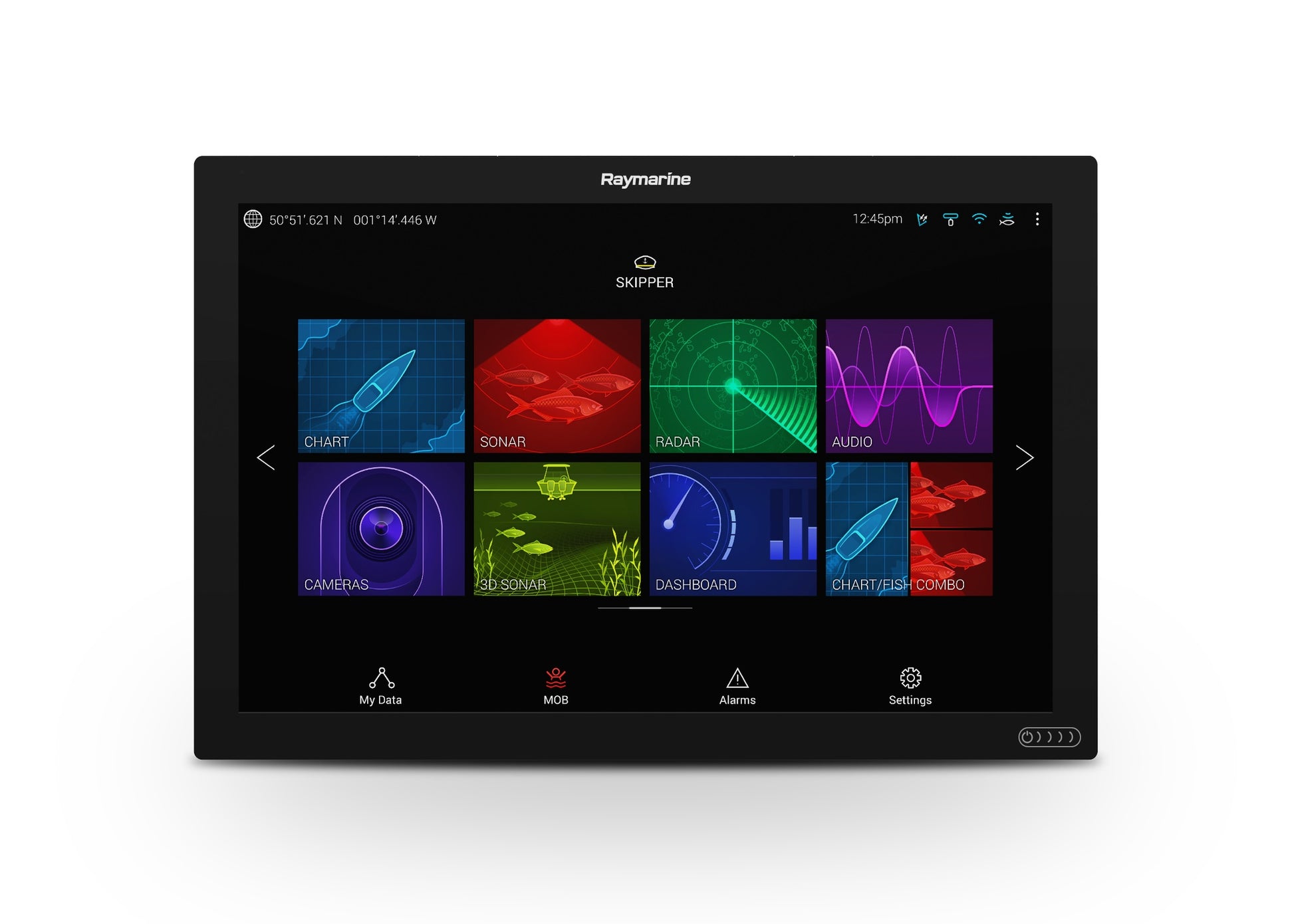

Axiom XL 24 (Model E70401)

• Axiom XL 24 MFD

• Mounting kit

• Right-angle power cable

• STNG–DeviceNet adapter

• RayNet Ethernet cable

• Gasket material

• Silicone sun cover

• Documentation pack

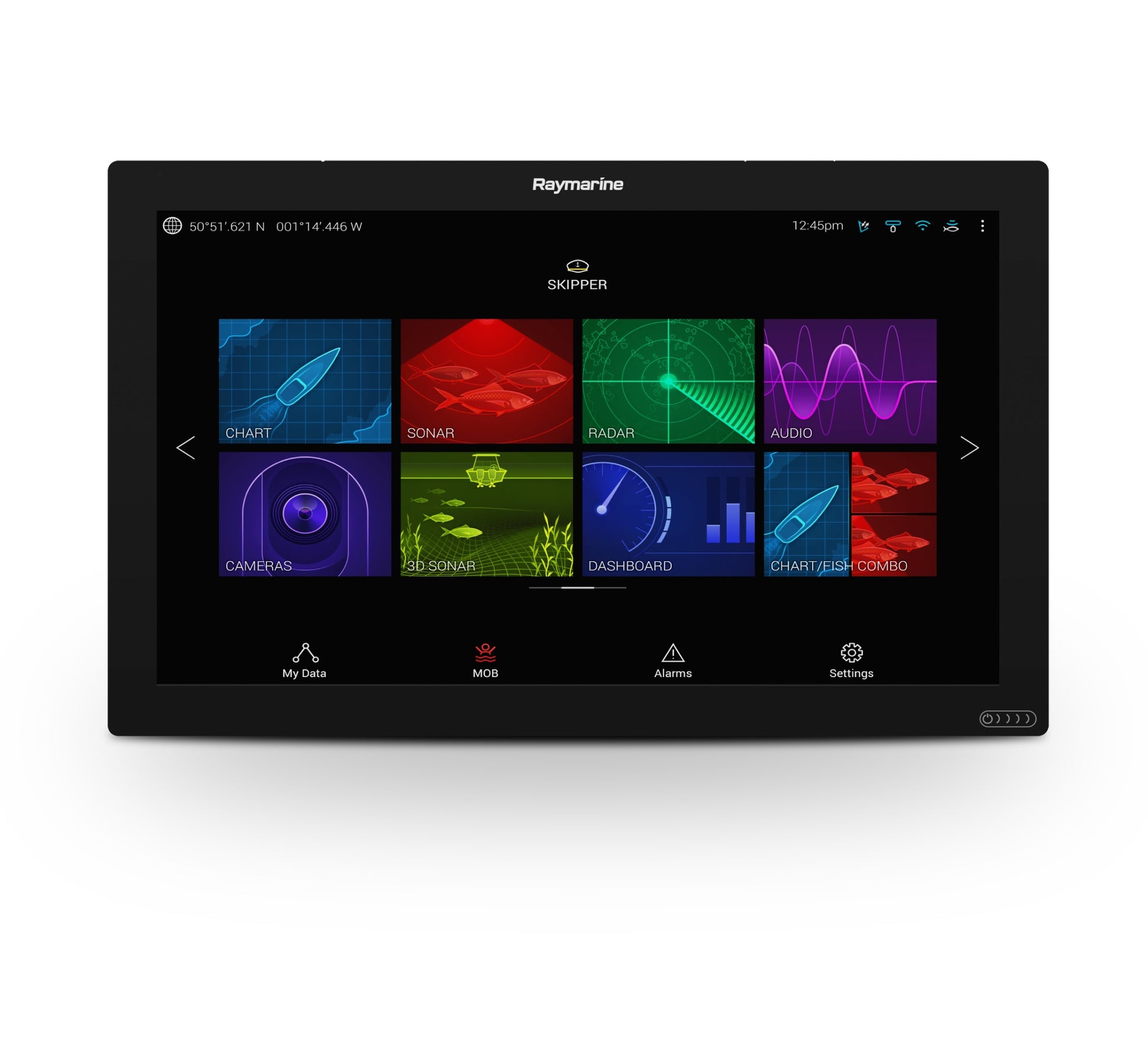

Axiom XL 22 (Model E70515)

• Axiom XL 22 MFD

• Mounting kit

• Right-angle power cable

• STNG–DeviceNet adapter

• RayNet Ethernet cable

• Gasket material

• Silicone sun cover

• Documentation pack

---

COMPARISON TABLE
