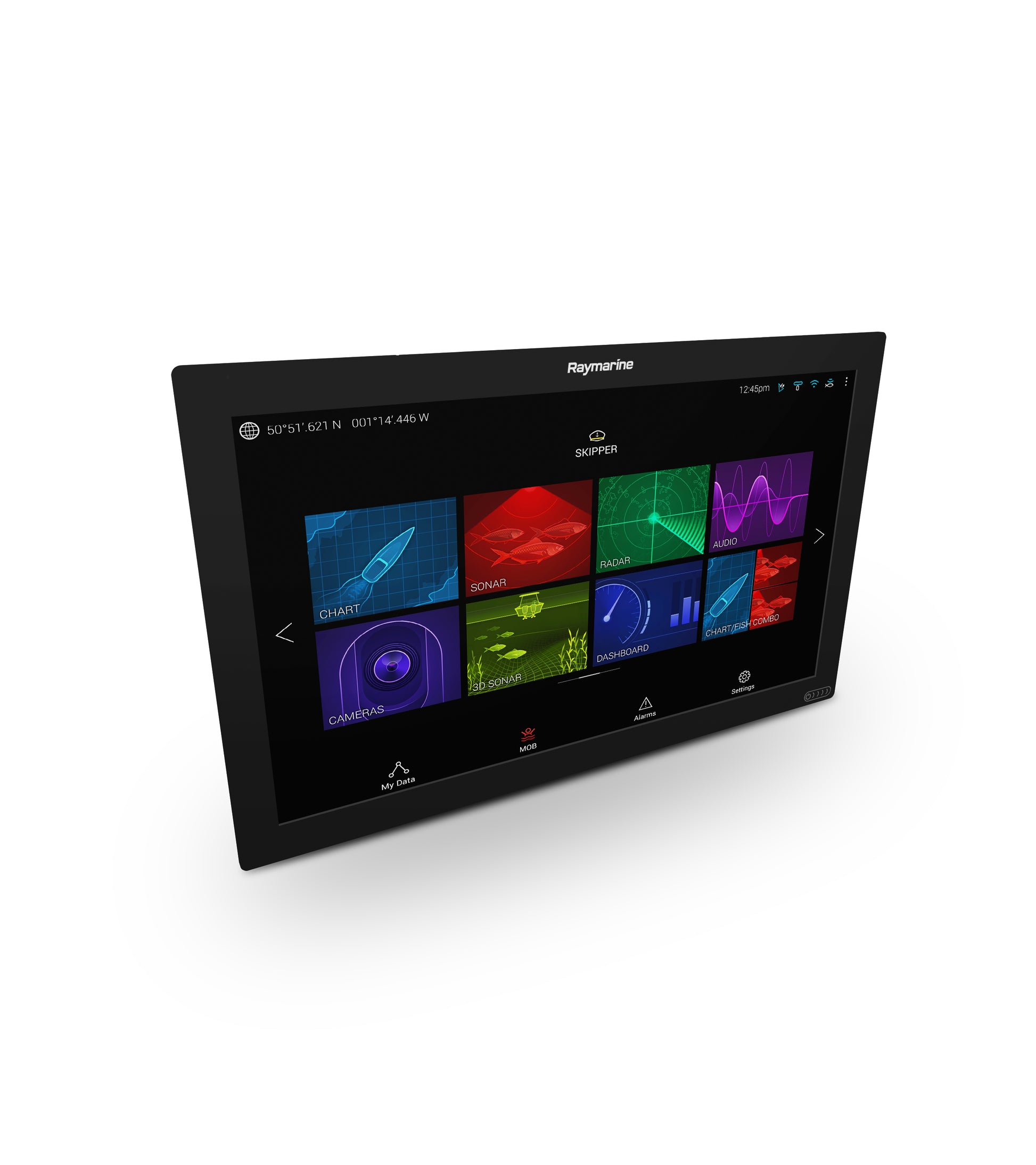

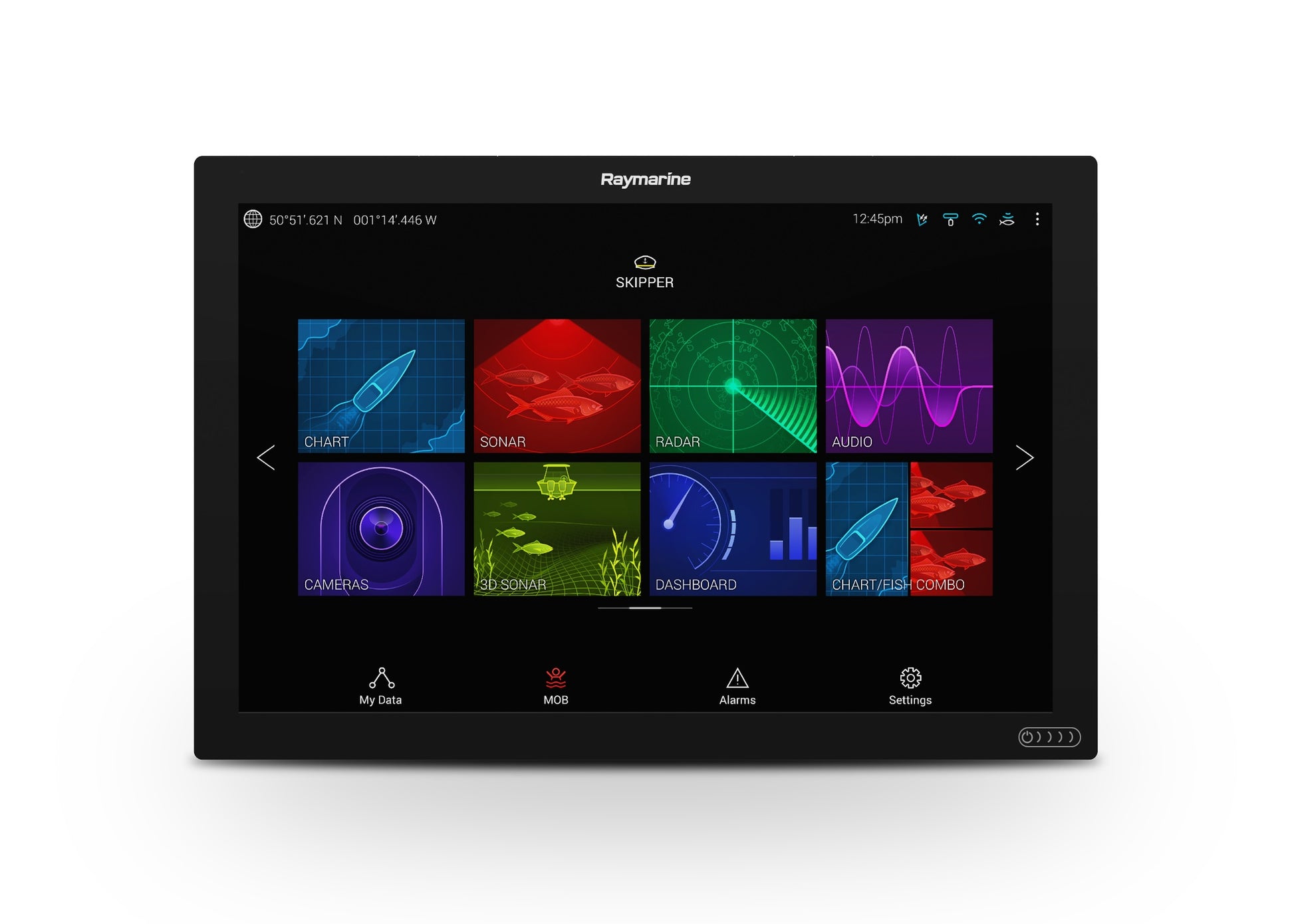

Raymarine Axiom XL MFD Kit.

Raymarine Axiom XL 24in, 22in  MFD Kits

Models: Axiom XL 24 Kit (T70430) | Axiom XL 22 Kit (T70429)

---

PRODUCT DESCRIPTION

The Raymarine Axiom XL MFD Kits bring the power and performance of the Axiom XL family with enhanced connectivity and included alarm and remote card reader (RCR-SD). Designed for luxury and professional vessels, the kits combine Full HD IPS displays, a quad-core processor, and Raymarine’s LightHouse 3 OS to deliver a fast, intuitive, and multi-functional navigation experience.

Each kit includes everything needed for integration with radar, CHIRP and 3D sonar modules, cameras, and digital switching systems. Axiom XL MFD Kits offer multi-touch control, optional RMK-10 keypad, HDMI input/output for PC and entertainment integration, and support for up to four simultaneous video streams, including FLIR thermal cameras.

The MFD Kits also feature integrated Wi-Fi and Bluetooth, LightHouse Apps streaming, and compatibility with marine partners such as Seakeeper, Lumishore, and Mazy. Rugged and waterproof with an all-glass design, these kits provide full helm control, onboard security, and advanced situational awareness.

---

KEY FEATURES

• Full HD multi-touch IPS displays (1080p FHD / WUXGA)

• Quad-core processor for fast and responsive performance

• Powered by LightHouse 3 OS — clean, fast, and intuitive

• 3 RayNet Ethernet ports for radar, sonar, cameras, and multi-display setups

• HDMI input/output for PC mirroring and entertainment

• View up to 4 IP or analog camera feeds simultaneously

• Integrated Wi-Fi and Bluetooth for apps and audio streaming

• FLIR ClearCruise™ thermal imaging compatible

• Optional RVX1000 3D CHIRP sonar module for fishing

• Vessel automation with digital switching solutions

• Pre-packaged kits include alarm system and RCR-SD for added security

• Optimized for flush or surface mounting with an all-glass buttonless design

---

WHAT’S IN THE BOX

Axiom XL 24 Kit (Model T70430)

• Axiom XL 24 MFD

• Mounting kit

• Right-angle power cable

• STNG–DeviceNet adapter

• RayNet Ethernet cable

• Gasket material

• Silicone sun cover

• Documentation pack

• External alarm

• Video/alarm cable

• Remote card reader (RCR-SD)

Axiom XL 22 Kit (Model T70429)

• Axiom XL 22 MFD

• Mounting kit

• Right-angle power cable

• STNG–DeviceNet adapter

• RayNet Ethernet cable

• Gasket material

• Silicone sun cover

• Documentation pack

• Remote card reader (RCR-SD)

• Alarm

• Video/alarm cable

---
