Raymarine Axiom 2 Pro RVM HybridTouch Series (No Transducer)
Professional Navigation, Sonar and Control — All in One System

The Raymarine Axiom 2 Pro RVM Series combines advanced chartplotting, RealVision MAX CHIRP sonar, radar, and autopilot control in a single integrated system for serious anglers and blue‑water navigators. Powered by a six‑core processor and the LightHouse operating system, Axiom 2 Pro delivers lightning‑fast chart rendering, seamless sonar switching, and fluid multitasking.

Each HybridTouch™ unit combines intuitive multitouch operation with tactile keypad control for dependable use in rough sea conditions. RealVision MAX multi‑channel CHIRP sonar offers unrivaled underwater clarity, while a dedicated 1 kW CHIRP system ensures superior deep‑water performance.

---

Model Numbers

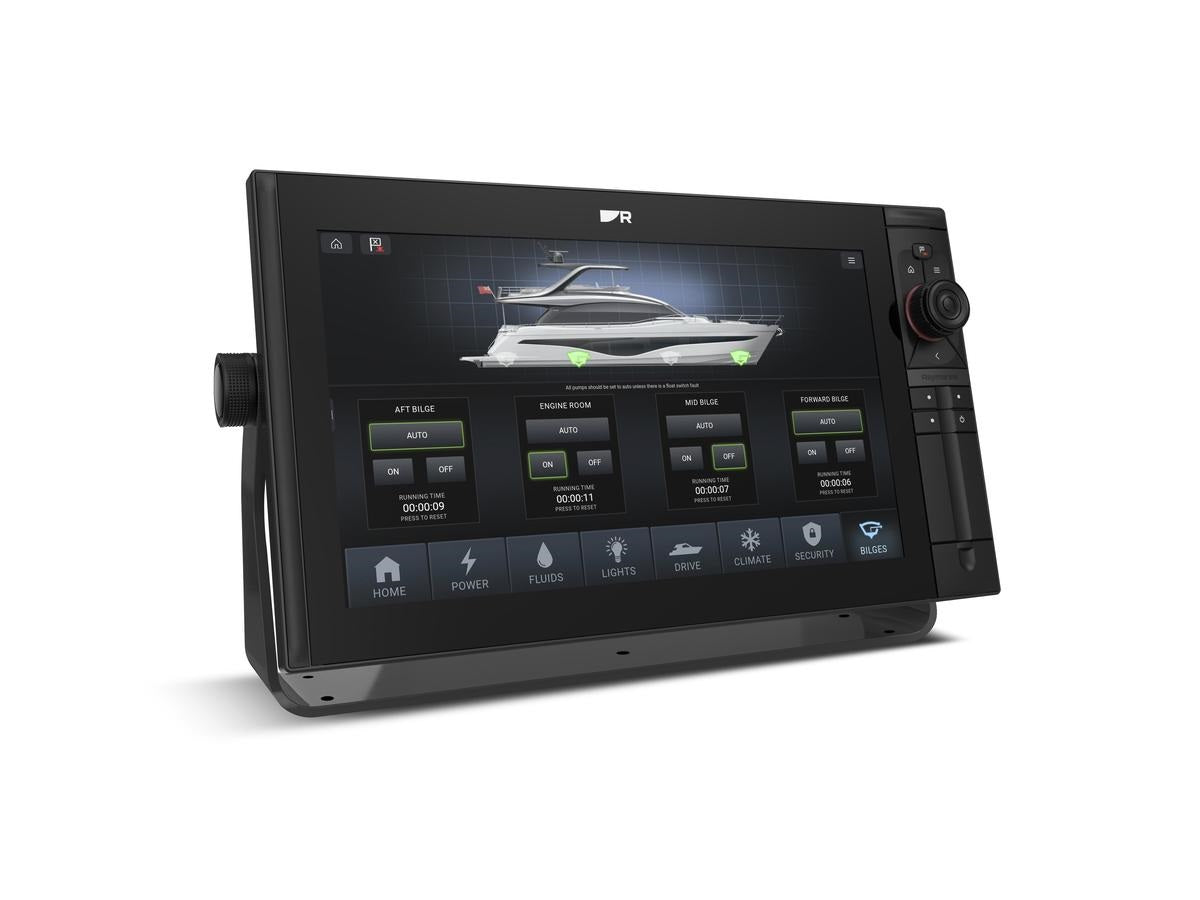

- Axiom 2 Pro 16 RVM – Model: E70658‑00‑102

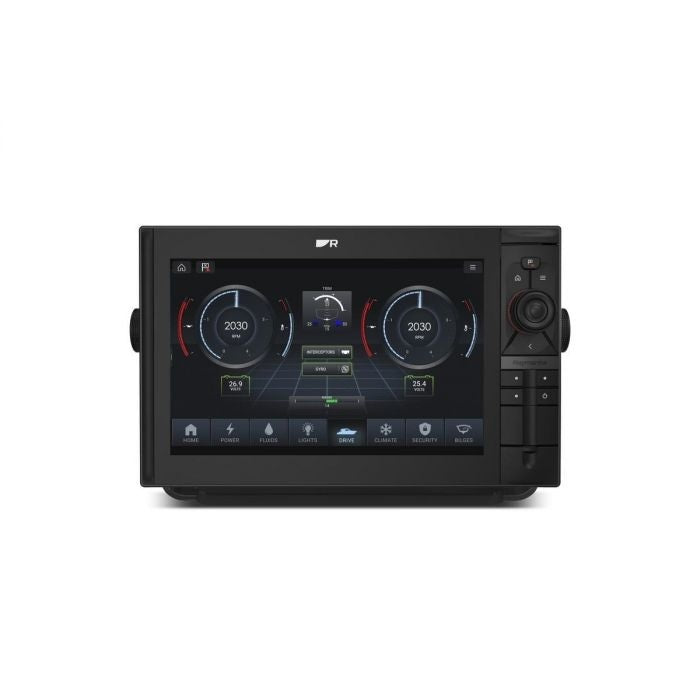

- Axiom 2 Pro 12 RVM – Model: E70656‑00‑102

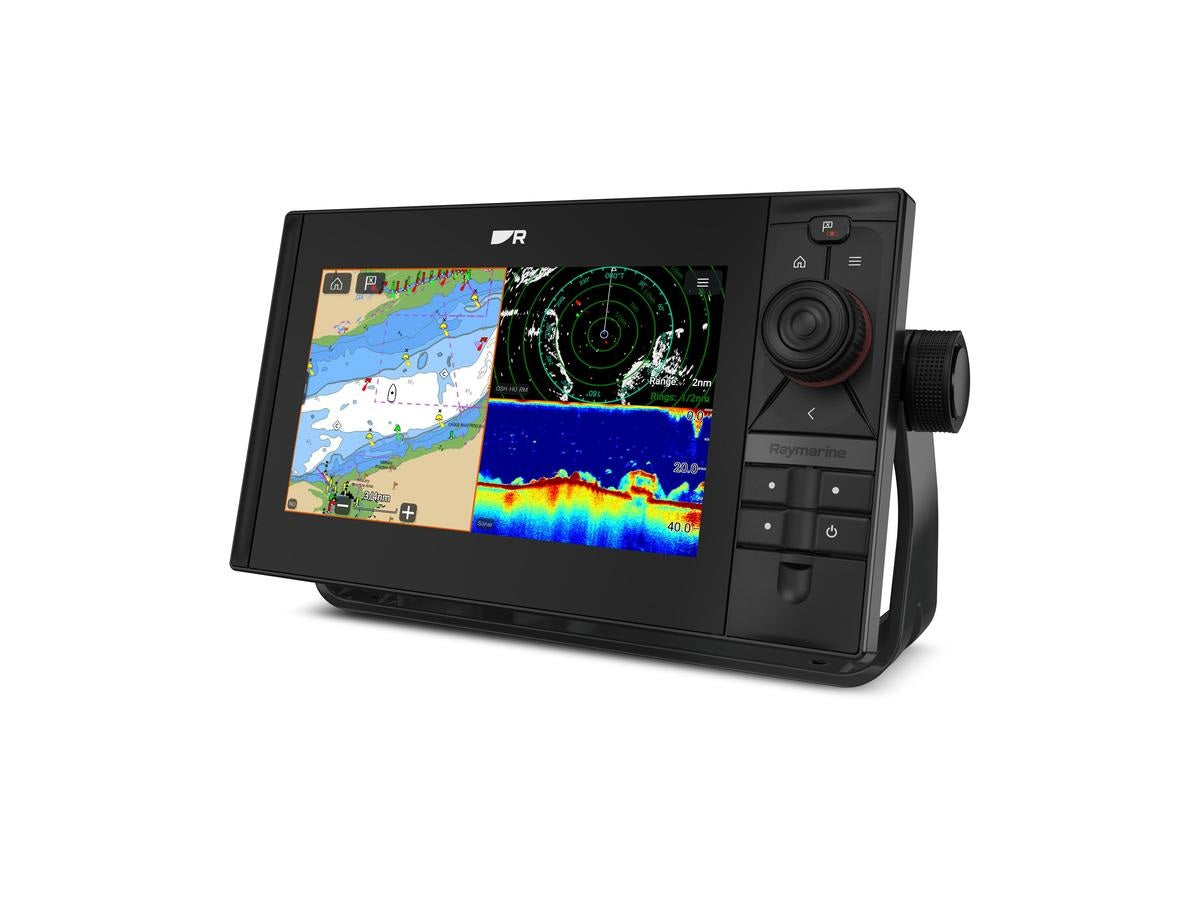

- Axiom 2 Pro 9 RVM – Model: E70654‑00‑102

---

Key Features

- HybridTouch™ interface: touchscreen and keypad operation for any condition.
- Built‑in RealVision MAX™ CHIRP Sonar: DownVision™, SideVision™, RealVision 3D™, and High CHIRP.
- 1 kW dual‑channel CHIRP port for deep‑water fishing (up to 3000 ft / 914 m).
- Powerful 6‑core processor for chartplotting, sonar, video and radar integration.
- HydroTough™ nano‑coated IPS display for superior touch performance and sunlight readability.
- Smart backlighting and ambient sensor adjust brightness automatically.
- Extensive I/O connectivity: dual RayNet Ethernet (1 Gbit), NMEA 2000, Wi‑Fi 2.4/5 GHz, Bluetooth 4.0, HDMI Out, USB, BNC video In.
- Pre‑loaded with LightHouse North America charts.
- Rugged IPX6 / IPX7 construction for reliability in all conditions.

---

Model Comparison

---

Technical Specifications

- Sonar Channels: RealVision MAX (High CHIRP 200 kHz, Down/Side 350 kHz) + 1 kW CHIRP (42–250 kHz)
- GNSS Support: GPS, Galileo, GLONASS, Beidou, SBAS – 28 channels @ 10 Hz
- Connectivity: 2 × 1 Gbit RayNet, DeviceNet NMEA 2000, Wi‑Fi 2.4 / 5 GHz, Bluetooth 4.0, USB Micro‑B, HDMI Out, BNC In
- Operating Temp: –25 °C to +55 °C (–13 °F to +131 °F)
- Environmental Rating: IPX6 / IPX7 (front panel)
- Internal Storage: 64 GB SSD | Mount Styles: Surface, Flush, or Trunnion

---

What’s in the Box

Axiom 2 Pro 16 RVM (E70658‑00‑102):
- Axiom 2 Pro 16 RVM Display
- Suncover / Gasket / Mounting Hardware (× 4)
- Trunnion Knobs (× 2) and Optional Grounding Kit
- DeviceNet to SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Network Cable (2 m)
- 1.5 m Power/Video/Audio Cable
- LightHouse North America Chart
- Documentation Pack

Axiom 2 Pro 12 RVM (E70656‑00‑102):
- Axiom 2 Pro 12 RVM Display
- Suncover, Gasket, and Trunnion Bracket
- Mounting Fixings (× 4), Trunnion Knobs (× 2)
- Grounding Kit, DeviceNet to SeaTalkNG Cable (1 m)
- RayNet (F‑F) Network Cable (2 m)
- 1.5 m Power/Video/Audio Cable
- LightHouse North America Chart
- Documentation Pack

Axiom 2 Pro 9 RVM (E70654‑00‑102):
- Axiom 2 Pro 9 RVM Display
- Suncover / Gasket / Trunnion Bracket (9 & 12 Models)
- Trunnion Knobs (× 2), Mount Fixings (× 4)
- DeviceNet Adapter Cable (1 m) + RayNet Cable (2 m)
- Optional Grounding Kit, 1.5 m Power/Video/Audio Cable
- LightHouse North America Chart and Documentation Pack
