Raymarine Axiom2 Pro RVM No Transducer No Chart.

Raymarine Axiom 2 Pro RVM HybridTouch™ Chartplotter / Fish Finder Series
All‑in‑One Performance Display with RealVision MAX and 1 kW CHIRP Sonar

The Axiom 2 Pro RVM Series represents Raymarine’s most advanced HybridTouch™ navigation displays, combining chartplotting, sonar, radar, autopilot, and video into a unified system for professional‑grade fishing and navigation. Powered by a six‑core processor and the intuitive, Axiom 2 Pro delivers fluid multitasking with instant response times.

Each unit features RealVision MAX™ CHIRP Sonar (DownVision™, SideVision™, RealVision 3D™, and High CHIRP) combined with a dedicated 1 kW dual‑channel CHIRP port for superior deep‑water target separation and clarity down to 3,000 ft (914 m). With its HybridTouch™ interface, users can navigate by touch or keypad, ensuring total control even in tough conditions.

The display boasts HydroTough™ IPS glass with a nano‑coating for excellent visibility in sun or spray, smart backlighting for night/day use, and an IPX6/IPX7 rating for all‑weather protection.

---

Model Numbers

- Axiom 2 Pro 16 RVM – 15.6" Display  Model: E70658
- Axiom 2 Pro 12 RVM – 12.1" Display  Model: E70656

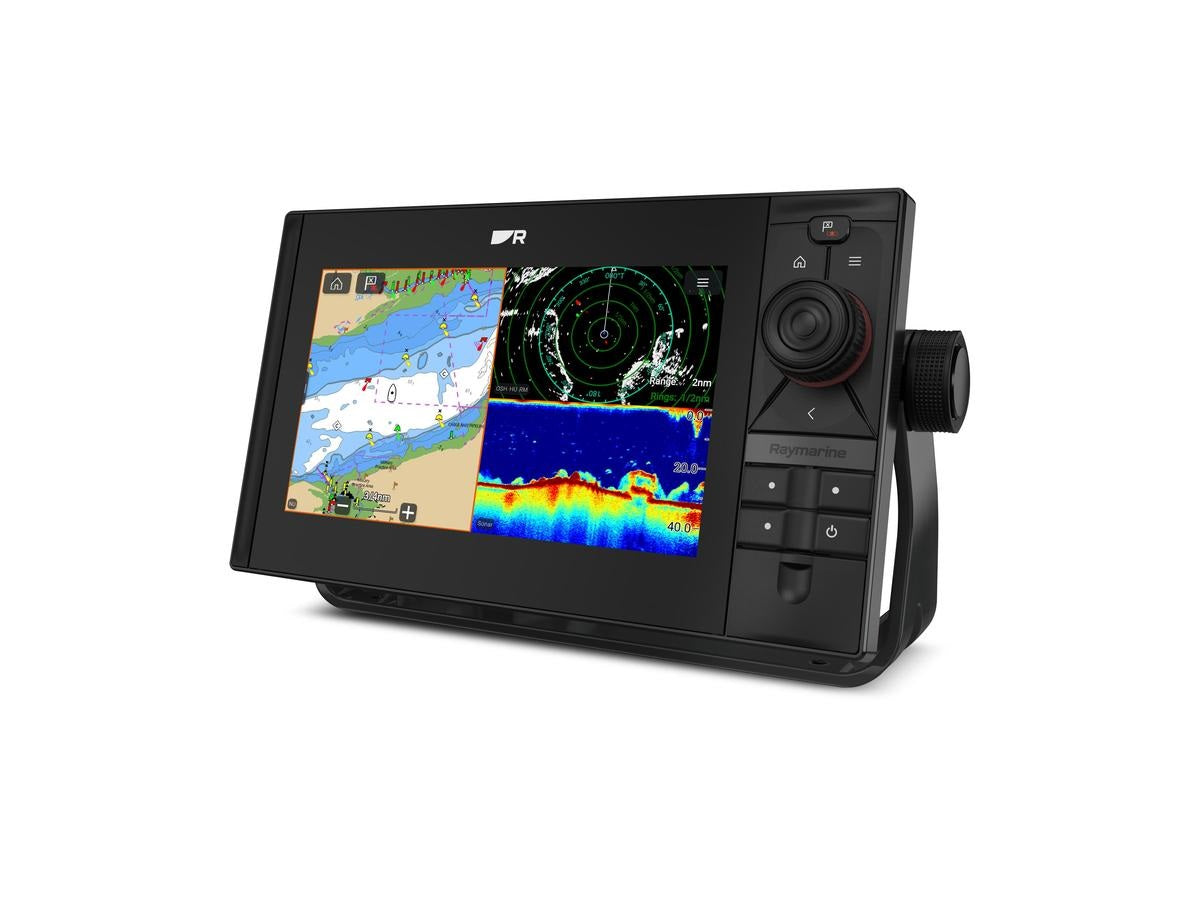

- Axiom 2 Pro 9 RVM – 9.0" Display  Model: E70654

---

Key Features

- HybridTouch™ control: touchscreen plus keypad for reliable operation in rough conditions.
- RealVision MAX™ multi‑channel CHIRP sonar: High CHIRP, DownVision™, SideVision™, and RealVision 3D™.
- Integrated 1 kW dual‑channel CHIRP sonar for deep‑water fishing and multi‑species targeting.
- Six‑core CPU with fast, lag‑free chart, radar, and video rendering.
- HydroTough™ IPS display: repels water, enhances color fidelity, and improves touch accuracy.
- Smart ambient light sensor for automatic brightness adjustment.
- Interchangeable keypads for autopilot control or custom soft keys.
- Dual RayNet Ethernet, NMEA 2000, Wi‑Fi (2.4 / 5 GHz), and Bluetooth 4.0 for network integration.
.

---

Model Comparison

---

Technical Highlights

- Antenna / GNSS: GPS, Galileo, GLONASS, Beidou | 28 channels | 10 Hz update rate.
- Connectivity: 2 × RayNet (1 Gbit/s), DeviceNet NMEA 2000, USB Micro‑B, HDMI Out, BNC In, RCA Audio In.
- Wireless: Dual‑band Wi‑Fi (2.4 / 5 GHz) + Bluetooth v4.0.
- Display Type: IPS LCD, 24‑bit color, hydrophobic coating, wide 88° viewing.
- Operating Temp: –25 °C to +55 °C  |  Storage: –30 °C to +70 °C.
- Environmental: Humidity ≤ 93% @ 40 °C | Waterproof IPX6/IPX7.

---

What’s in the Box

Axiom 2 Pro 16 RVM (E70658):
- Axiom 2 Pro 16 RVM Display
- Suncover and Gasket
- Trunnion Knobs (× 2) | Mounting Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Network Cable (2 m)
- 1.5 m Power/Video/Audio Cable
- Optional Grounding Hardware
- Documentation

Axiom 2 Pro 12 RVM (E70656):
- Axiom 2 Pro 12 RVM Display
- Suncover, Gasket, and Trunnion Bracket (9 & 12 Models)
- Trunnion Knobs (× 2) + Mount Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Network Cable (2 m)
- 1.5 m Power/Video/Audio Cable
-  Documentation

Axiom 2 Pro 9 RVM (E70654):
- Axiom 2 Pro 9 RVM Display
- Suncover and Gasket + Trunnion Bracket (9 & 12)
- Mount Fixings (× 4) + Trunnion Knobs (× 2)
- 1 m DeviceNet Adaptor + 2 m RayNet Cable
- 1.5 m Power/Video/Audio Cable
- Optional Grounding Hardware
- Documentation
