Raymarine Axiom 2 Pro S Series HybridTouch™ Chartplotters
All‑in‑One Navigation System with Integrated CHIRP Sonar and Advanced Sailing Tools

The Raymarine Axiom 2 Pro S Series delivers a complete helm solution for cruising, sailing, and racing yachts. Combining chartplotter, sonar, radar, autopilot, and video in one touchscreen display, Axiom 2 Pro S units run on the LightHouse operating system and a six‑core processor, offering blazing‑fast chart redraws and ultra‑smooth control.

The HybridTouch™ interface combines touchscreen simplicity with precision key and rotary controls — ideal for use under sail or in rough weather. Water‑repellent HydroTough™ IPS displays provide vivid color and superior visibility under sunlight and spray. Built for sailors, the "Axiom Pro S" adds enhanced sailing tools like VMG steering, laylines, SmartStart™ race timers, and polar performance tracking.

---

Model Numbers

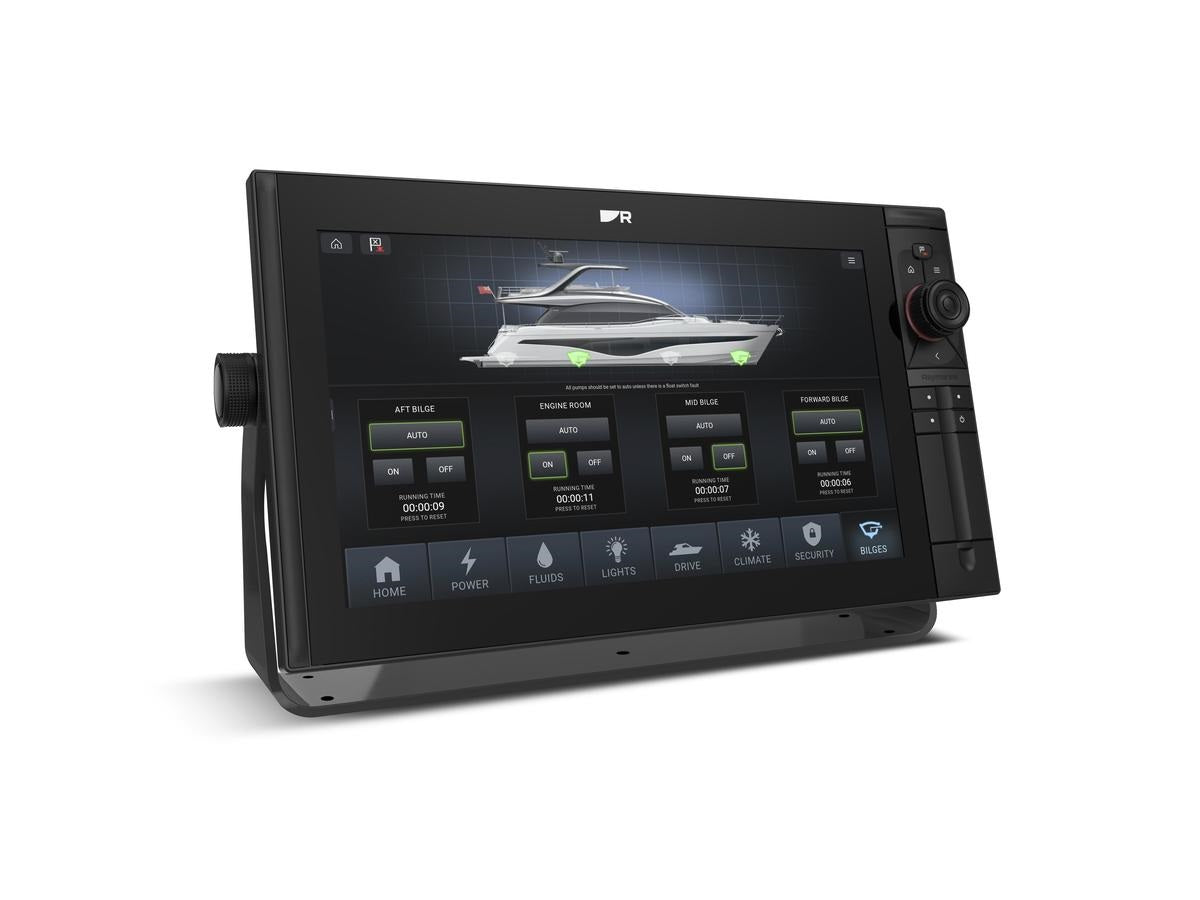

- Axiom 2 Pro 16S (15.6") – Model: E70657‑00‑102

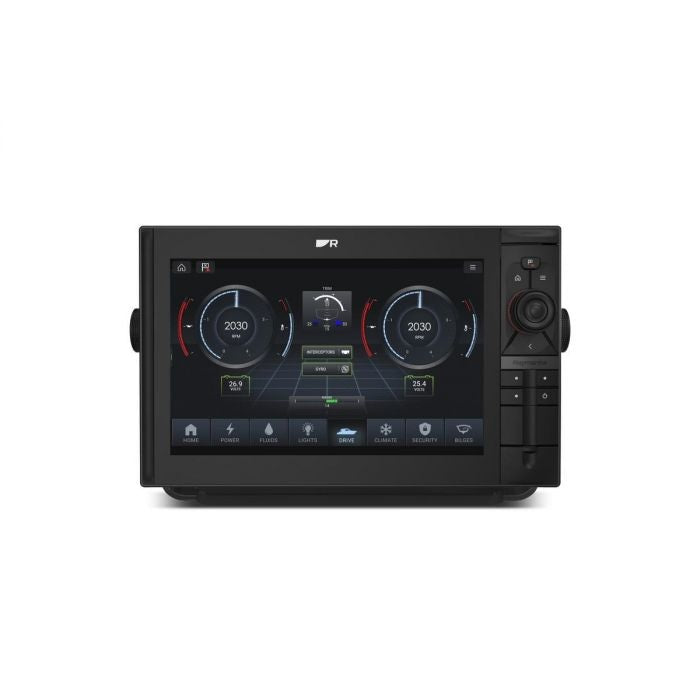

- Axiom 2 Pro 12S (12.1") – Model: E70655‑00‑102

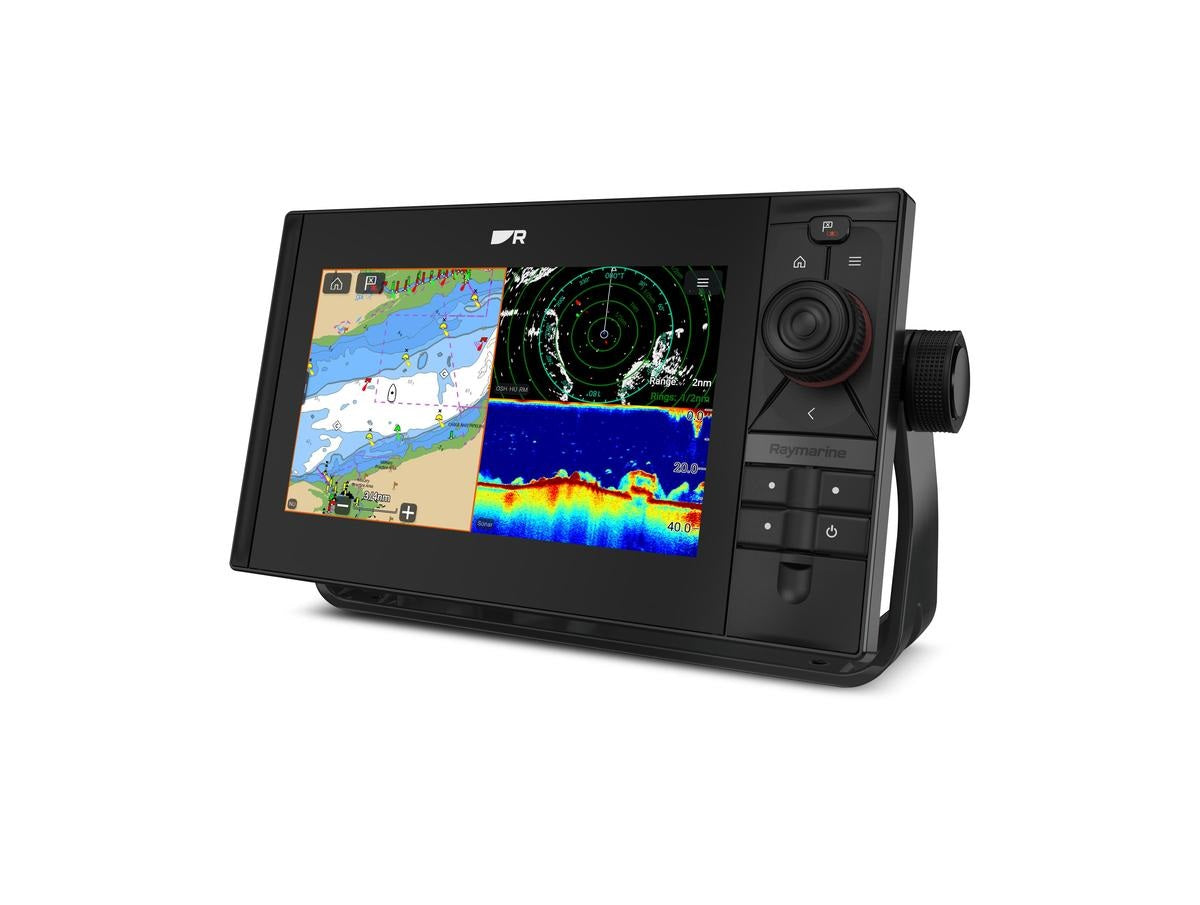

- Axiom 2 Pro 9S (9.0") – Model: E70653‑00‑102

---

Key Features

- HybridTouch™ control: touch + keypad precision operation.
- Built‑in High CHIRP Sonar: reliable single‑channel CHIRP depth and bottom tracking.
- Performance Sailing Suite: VMG steering, laylines, polars & SmartStart™ racing timer.
- Powerful six‑core processor for instant responses and smooth chart motion.
- HydroTough™ IPS display: 1200–1300 nits brightness, nano‑coating, wide‑angle view.
- Smart backlighting and ambient sensor for day/night luminosity control.
- Dual Gigabit RayNet Ethernet + NMEA 2000 (DeviceNet) for complete system integration.
- HDMI output, BNC video input, and RCA audio connectivity.
- Wi‑Fi (2.4 / 5 GHz) and Bluetooth v4.0 for wireless data and remote devices.
- 64 GB solid‑state storage + dual MicroSDXC slots.
- Preloaded LightHouse North America charts.
- Rugged IPX6 / IPX7 design for cockpit or flybridge mounting.

---

Model Comparison

---

Technical Specifications

- GNSS: 10 Hz GPS, GLONASS, Galileo, Beidou (receiver, ≤ 5 m accuracy with SBAS).
- Connectivity: 2 × RayNet (1 Gbit), DeviceNet NMEA 2000, Wi‑Fi (2.4/5 GHz), Bluetooth 4.0.
- Video / Audio: HDMI Out (Micro D), BNC Analog In, RCA Audio In.
- Power Consumption: 9S – 33.1 W  |  12S – 29.9 W  |  16S – 42.4 W (@ 12 V DC).
- Operating Temp: −25 °C to +55 °C (−13 °F to 131 °F).
- Environmental: Waterproof IPX6/IPX7 | Humidity ≤ 93 %.
- Display Type: IPS Panel, 24‑bit color, wide 88° view angles.

---

What’s in the Box

Axiom 2 Pro 16S (E70657‑00‑102):
- Axiom 2 Pro 16S Display
- Suncover & Gasket
- Trunnion Knobs (× 2) | Mounting Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Network Cable (2 m)
- 1.5 m Power/Video/Audio Cable
- Optional Grounding Connector set
- LightHouse North America Chart & Documentation

Axiom 2 Pro 12S (E70655‑00‑102):
- Axiom 2 Pro 12S Display
- Suncover & Gasket  |  Trunnion Bracket (9 & 12 Models)
- Trunnion Knobs (× 2) + Mount Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Network Cable (2 m)
- 1.5 m Power/Video/Audio Cable
- Grounding Hardware | LightHouse Charts | Documentation

Axiom 2 Pro 9S (E70653‑00‑102):
- Axiom 2 Pro 9S Display
- Suncover, Gasket, and Trunnion Bracket
- Trunnion Knobs (× 2) | Mounting Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Cable (2 m)
- 1.5 m Power/Video/Audio Cable
- Grounding Connector Set | Documentation + LightHouse Charts
