Raymarine Axiom2 Pro S MFD No Transducer No Chart.

Raymarine Axiom 2 Pro S Series HybridTouch™ Chartplotters
Advanced Navigation and Sailing Displays with Integrated High CHIRP Sonar

The Raymarine Axiom 2 Pro S Series is an elite all‑in‑one navigation platform engineered for cruisers and sailors demanding performance, precision, and simplicity. Combining chartplotter, radar, autopilot, and video integration with built‑in High CHIRP sonar, Axiom 2 Pro S delivers superb situational awareness and sonar clarity.

Powered by a six‑core processor and running Raymarine’s intuitive LightHouse OS, these HybridTouch™ displays offer fluid chart navigation and rapid system responses. Their HydroTough™ IPS displays combine 1200 to 1300‑nit brightness with water‑repellent nano‑coating for exceptional viewing in sun or spray.

For racers and performance sailors, the series integrates sailing tools like polar profiles, dynamic laylines, VMG steering indicators, and SmartStart™ race timers to optimize tactics and speed.

---

Model Numbers

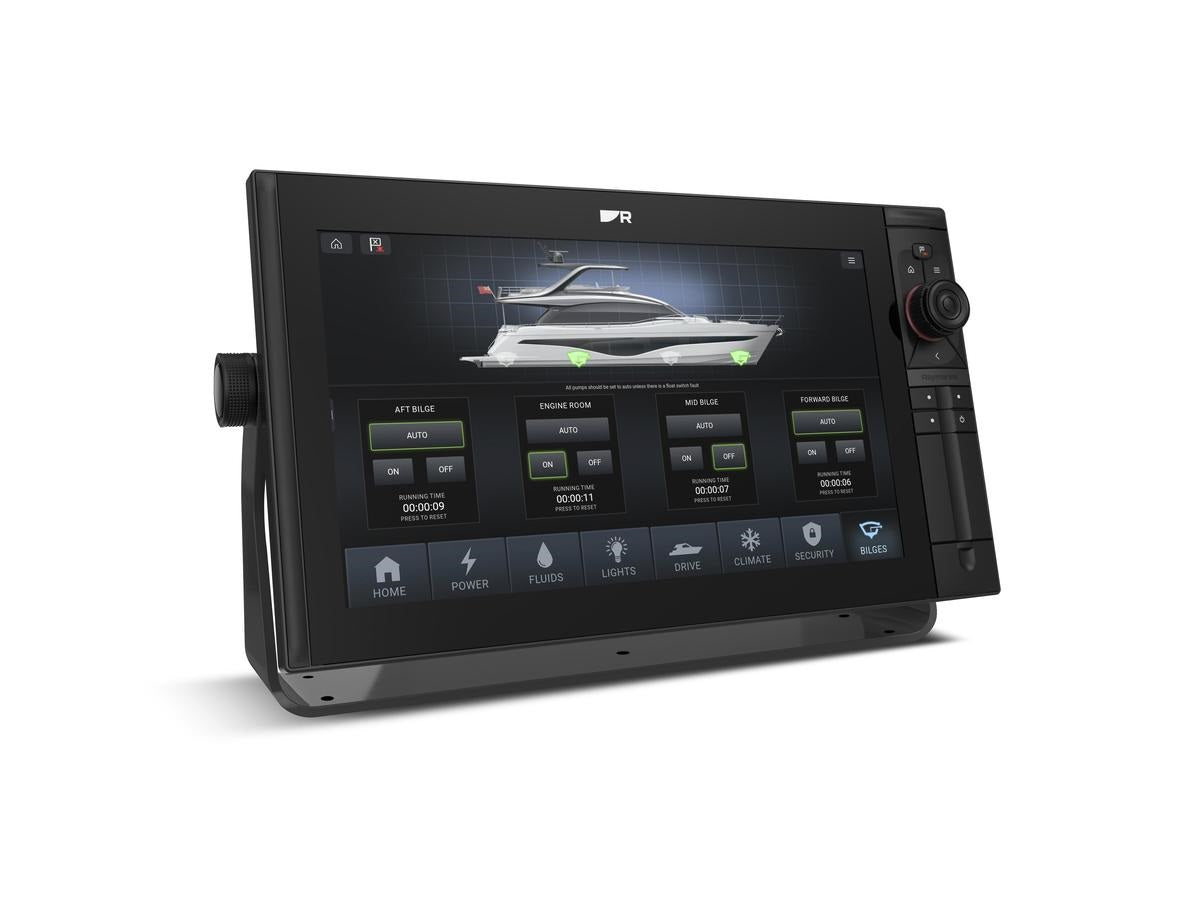

- Axiom 2 Pro 16S – Model: E70657

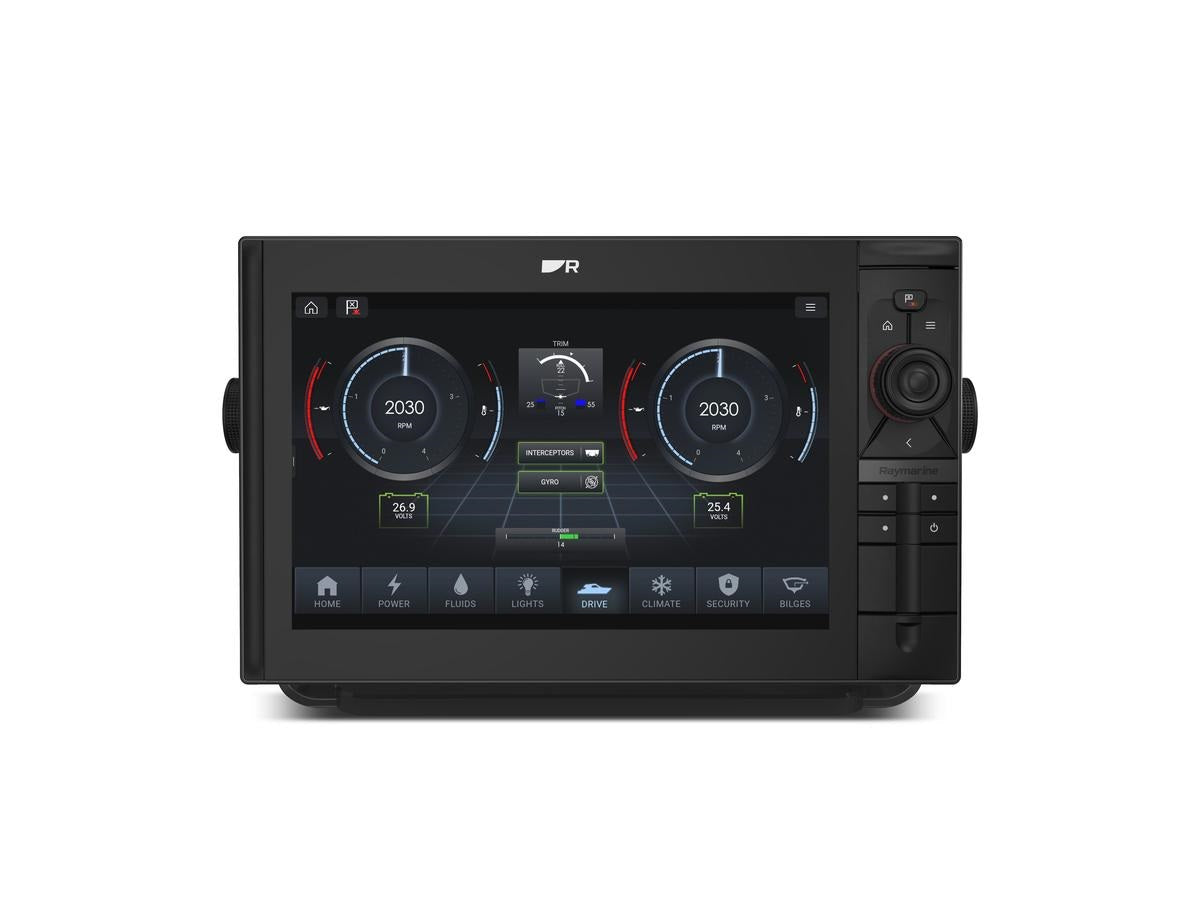

- Axiom 2 Pro 12S – Model: E70655

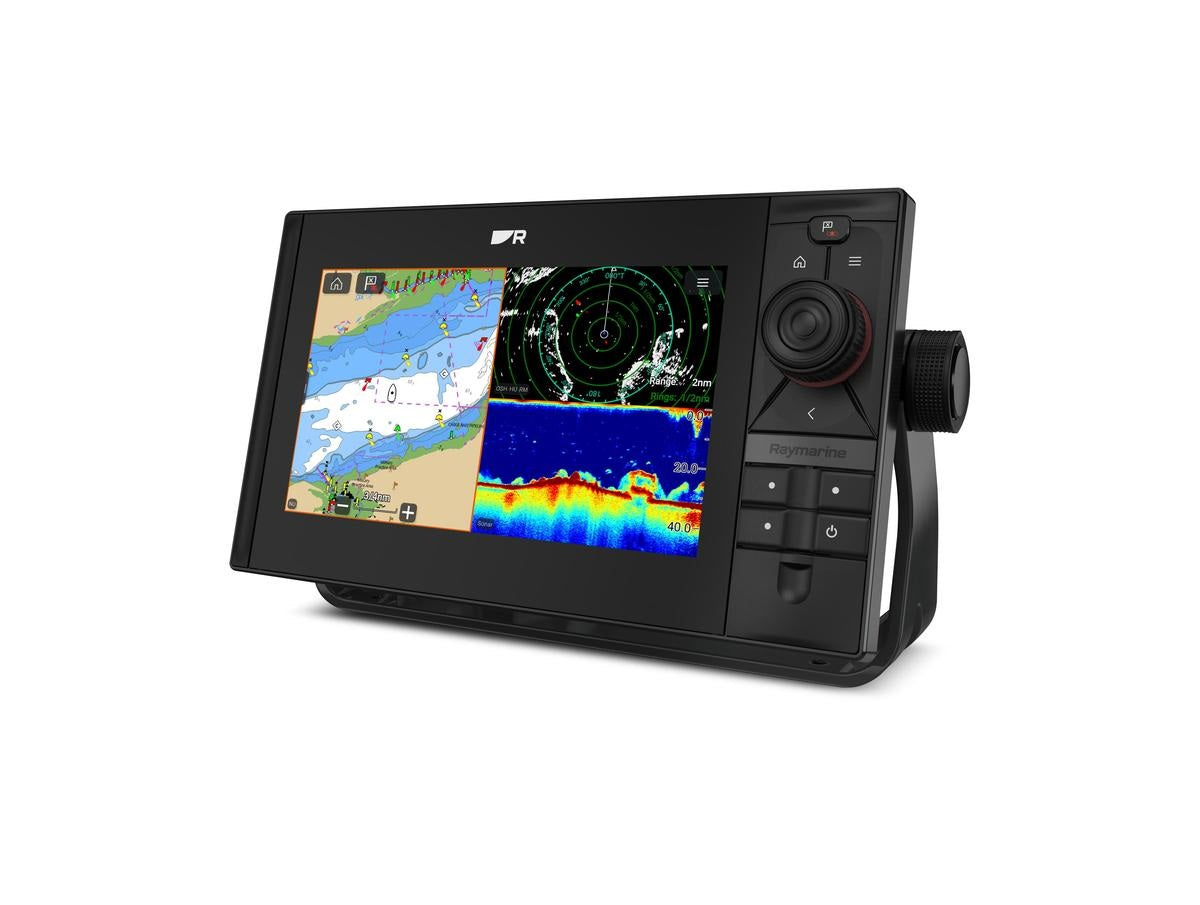

- Axiom 2 Pro 9S – Model: E70653

---

Key Features

- HybridTouch™ control: touchscreen + keypad with rotary knob for rough‑sea precision.
- Integrated single‑channel High CHIRP sonar for accurate depth and bottom readings.
- Advanced sailing tools: laylines, polars, VMG steering, race timers, and SmartStart™.
- HydroTough™ IPS display: bright, color‑rich 1200–1300 nits with nano‑coating.
- Six‑core processor with ultra‑fast chart render and system integration.
- Smart backlighting + ambient light sensor for day/night visibility.
- Dual RayNet (1 Gbit) Ethernet, NMEA 2000, Wi‑Fi (2.4/5 GHz), Bluetooth v4.0.
- Video / Audio: HDMI Out (Micro), BNC Analog In, RCA Audio inputs.
- 64 GB SSD storage + Dual MicroSDXC slots.
- IPX6 / IPX7 durability rating for installation on deck or flybridge.
- Pre‑loaded with LightHouse North America charts.

---

Model Comparison

---

Technical Specifications

- GNSS: 10 Hz GPS / GLONASS / Galileo / Beidou receiver ( ± 5 m accuracy with SBAS ).
- Connectivity: 2 × RayNet (1 Gbit), DeviceNet NMEA 2000, USB Micro‑B, HDMI Out, BNC In, RCA Audio In.
- Operating Temp: –25 °C to +55 °C (–13 °F to 131 °F).
- Environmental: IPX6 / IPX7 rated | Humidity ≤ 93 % @ 40 °C.
- Display Type: IPS Panel, 24‑bit color depth, 88° wide view angles.
- Storage: 64 GB SSD | External: 2 × MicroSDXC slots (front).
- Power: Nominal 12/24 V DC (8–32 V range), Fuse Rating 15 A.

---

What’s in the Box

Axiom 2 Pro 16S (E70657):
- Axiom 2 Pro 16S Display
- Suncover and Gasket
- Trunnion Knobs (× 2) | Mounting Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Network Cable (2 m) 
- 1.5 m Power/Video/Audio Cable
- Optional Grounding Connector set
- Documentation Pack

Axiom 2 Pro 12S (E70655):
- Axiom 2 Pro 12S Display
- Suncover and Gasket | Trunnion Bracket (12 & 9 models)
- Trunnion Knobs (× 2) + Mount Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Cable (2 m) 
- 1.5 m Power/Video/Audio Cable
- Grounding Hardware and Documentation

Axiom 2 Pro 9S (E70653):
- Axiom 2 Pro 9S Display
- Suncover & Gasket + Trunnion Bracket (9 & 12 only)
- Trunnion Knobs (× 2) | Mount Fixings (× 4)
- DeviceNet → SeaTalkNG Adaptor Cable (1 m)
- RayNet (F‑F) Cable (2 m) 
- 1.5 m Power/Video/Audio Cable
- Optional Grounding Hardware | Documentation Pack
