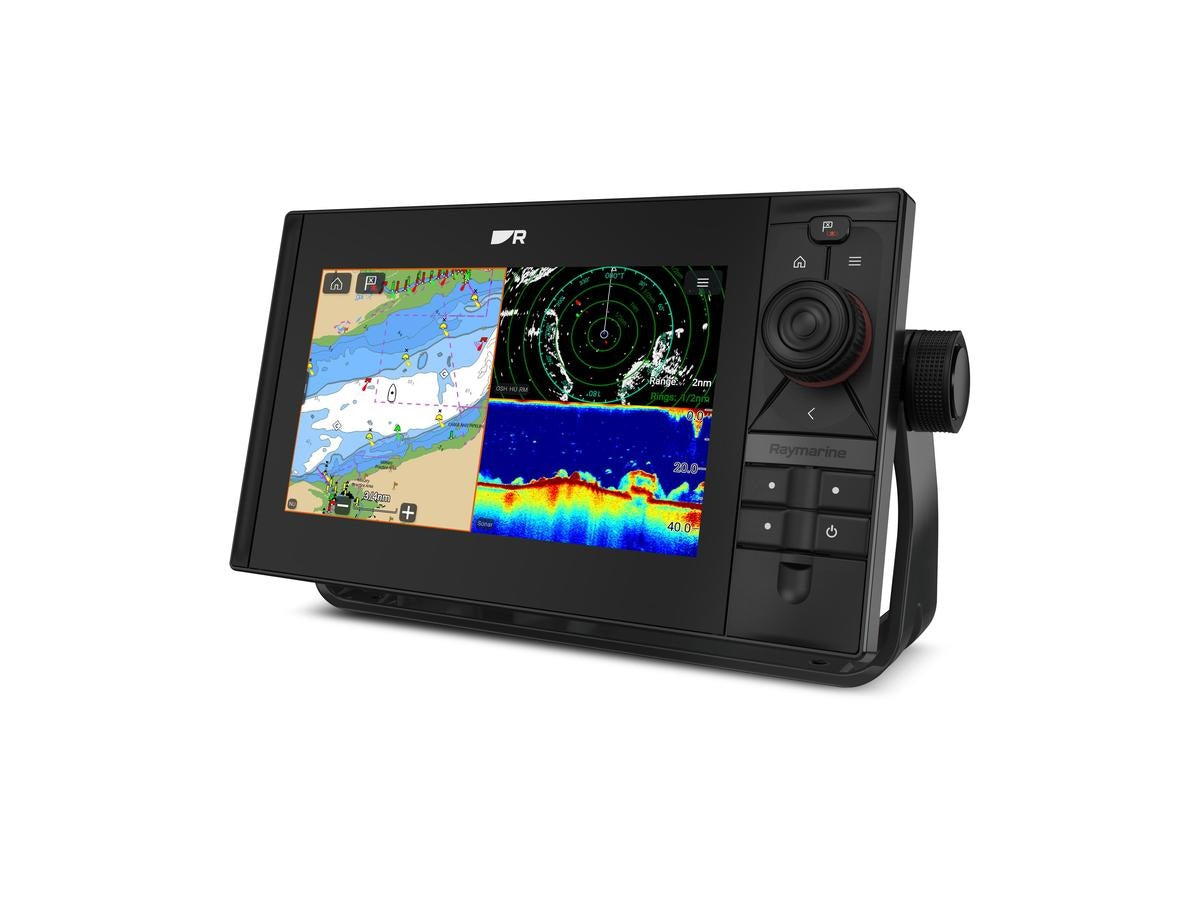

Raymarine Axiom2 Pro 9 RVM No Transducer Lighthouse North America Chart

Raymarine Axiom2 Pro 9RVM - HybridTouch™ Chartplotter with RealVision MAX & 1 kW CHIRP Sonar

Models:

• Axiom2 Pro 9 RVM No Transducer No Chart (E70654)

• Axiom2 Pro 9 RVM No Transducer Lighthouse North America Chart (E70654-00-102)

PRODUCT DESCRIPTION

The Raymarine Axiom2 Pro 9RVM Series is an all-in-one offshore and coastal navigation and fishing system. It combines chartplotter, fish finder, radar, autopilot, and video in a single display, powered by a 6-core processor for fast chart redraws and seamless system integration.

HybridTouch™ control allows you to operate the system via a responsive touchscreen with reliable keypad fallback—essential for rough seas. RealVision MAX CHIRP sonar provides high-resolution fish targets and detailed underwater imaging, while a dedicated 1 kW dual-channel CHIRP port enables deep-water fish-finding up to 3,000 ft.

The HydroTough™ IPS display with water-repellent nano-coating ensures excellent visibility, vibrant colors, and reliable touchscreen performance in sunlight or wet conditions. Smart backlighting automatically adjusts brightness for day or night.

Interchangeable keypads allow users to choose dedicated Evolution autopilot controls or user-programmable soft keys. Full network connectivity includes dual RayNet Ethernet, NMEA 2000, Wi-Fi, Bluetooth, HDMI output, and analog video/audio inputs.

---

KEY FEATURES

• HybridTouch™ touchscreen with keypad fallback for precise operation

• RealVision MAX multichannel sonar (High CHIRP, DownVision, SideVision, RealVision 3D)

• 1 kW dual-channel CHIRP sonar for deep-water fishing

• 6-core CPU with 64 GB SSD + dual microSDXC slots

• HydroTough™ IPS display with 1300-nit brightness

• Smart backlighting for automatic day/night adjustment

• Dual RayNet Ethernet, NMEA 2000, Wi-Fi, and Bluetooth connectivity

• HDMI output and BNC/RCA analog inputs

• IPx6/IPx7 waterproof rating; −25 °C to +55 °C operating temperature

---

COMPARISON TABLE

---

WHAT’S IN THE BOX

Axiom2 Pro 9 RVM No Transducer No Chart (E70654-00-101)

• Axiom2 Pro 9RVM display

• Suncover

• Gasket

• Trunnion knobs × 2

• Trunnion bracket (Axiom 2 Pro 9 and 12 Only)

• Optional grounding connection (screw, washer, terminal)

• DeviceNet → SeaTalkng adaptor cable (1 m / 3.28 ft)

• RayNet (female–female) network cable (2 m / 6.56 ft)

• Mounting fixings × 4

• Power / Video / Audio cable (1.5 m / 4.92 ft)

• Documentation pack

Axiom2 Pro 9 RVM No Transducer Lighthouse North America Chart (E70654-00-102)

• All items above plus Lighthouse North America Chart
