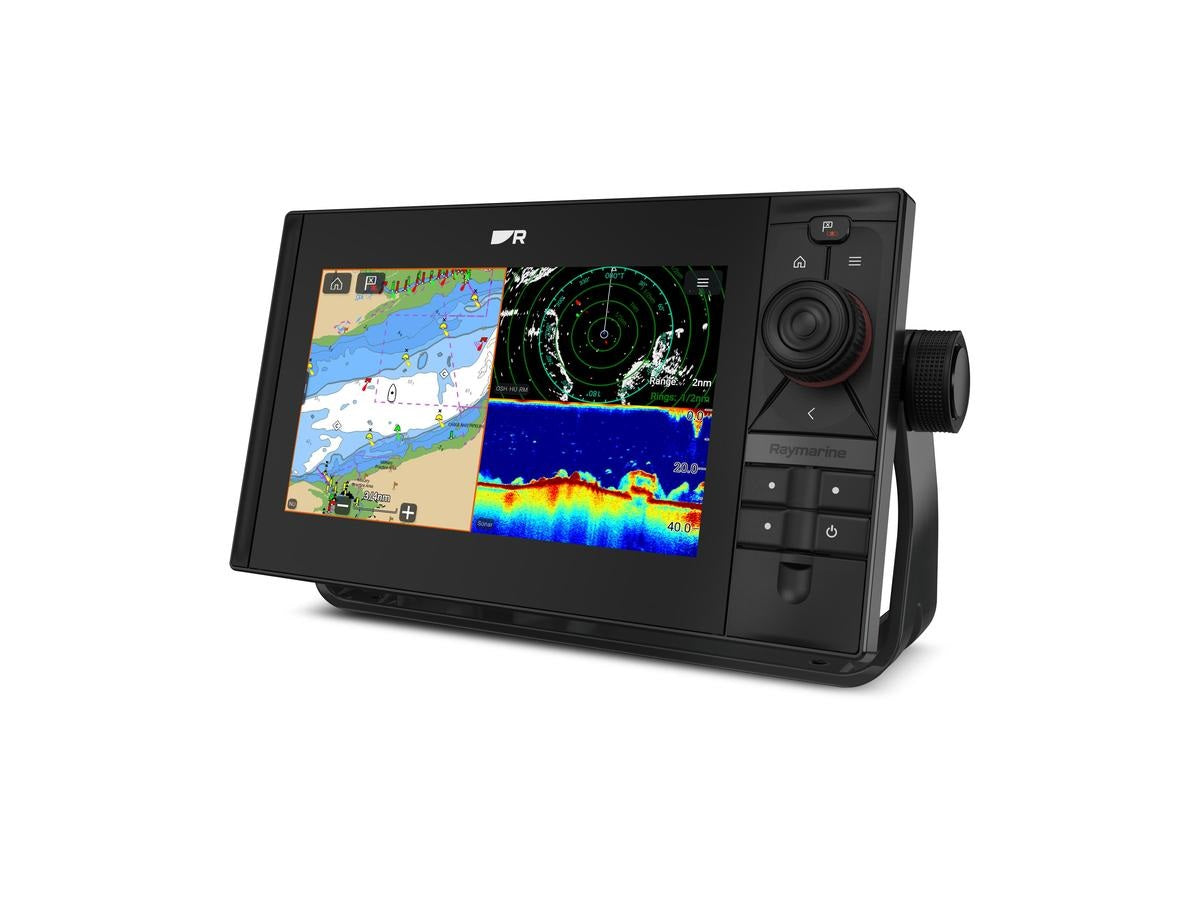

Raymarine Axiom2 Pro 9S HybridTouch Chartplotters – No Transducer Variants

Models:

• Axiom2 Pro 9S MFD No Transducer No Chart E70653

• Axiom2 Pro 9S MFD No Transducer Lighthouse North America Chart E70653-00-102

PRODUCT DESCRIPTION

The Raymarine Axiom2 Pro 9S MFD is an all-in-one chartplotter and navigation system designed for sailing and coastal cruising. It features the HybridTouch™ interface, combining a responsive touchscreen with keypad fallback for reliable control in rough seas.

The system is powered by a 6-core processor and runs LightHouse OS, delivering fast chart redraws, smooth system integration, and easy operation. HydroTough™ IPS display with water-repellent nano-coating ensures excellent sunlight visibility, while smart backlighting automatically adjusts brightness for day or night use.

The units are offered in two variants: one with the Lighthouse North America Chart preloaded for immediate navigation, and one without any chart for users who prefer to load their own. Both models support networked operation with multiple Axiom units via RayNet, interchangeable keypads, and accessory connectivity for NMEA 2000, Wi-Fi, Bluetooth, HDMI, and analog video/audio inputs.

KEY FEATURES

• HybridTouch™ touchscreen with keypad fallback

• 6-core processor for fast chart redraws and smooth system integration

• HydroTough™ 9" IPS display, 1280 × 720 HD, 1300-nit brightness

• Smart backlighting with ambient light sensor for day/night adjustment

• Dual RayNet Ethernet, NMEA 2000, Wi-Fi, and Bluetooth v4.0 connectivity

• HDMI output and BNC/RCA analog video/audio inputs

• 64 GB internal SSD with dual microSDXC card slots

• IPx6/IPx7 waterproof rating, operating temperature −25 °C to +55 °C

• Interchangeable keypads for Evolution autopilot or programmable soft keys

• Supports networked Axiom displays

COMPARISON TABLE

WHAT’S IN THE BOX (Both Variants)

• Axiom2 Pro 9S display

• Suncover

• Gasket

• Trunnion knobs ×2

• Trunnion bracket (Axiom 2 Pro 9 and 12 Only)

• Optional grounding connection (Screw M3x5, Spring washer M3, Crimp terminal M3)

• DeviceNet → SeaTalkng adaptor cable 1 m (3.28 ft)

• RayNet (female–female) network cable 2 m (6.56 ft)

• Mounting fixings ×4

• Power / Video / Audio cable 1.5 m (4.92 ft)

• Documentation pack

• Lighthouse North America Chart (included only in the “Chart” variant)
