Vendor: Raymarine
Sku: RAYE70664

Raymarine Axiom2 XL MFD Series.

$15,195.00
$15,195.00 $15,195.00
Sold out
Shipping calculated at checkout.
Low stock: 1 left
Screen Size: 24 inches

Description

Caret Down

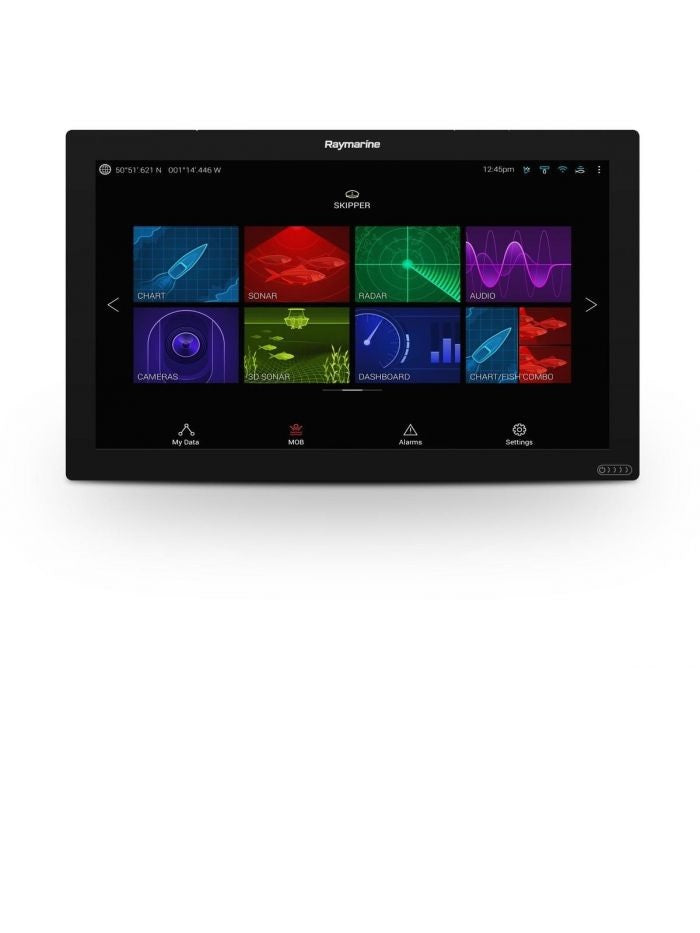

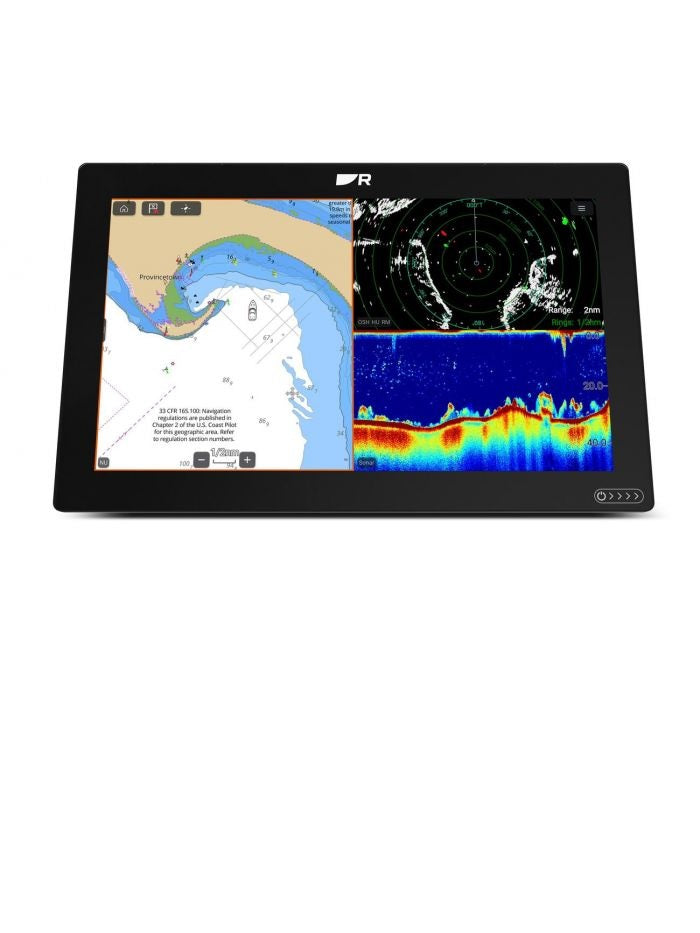

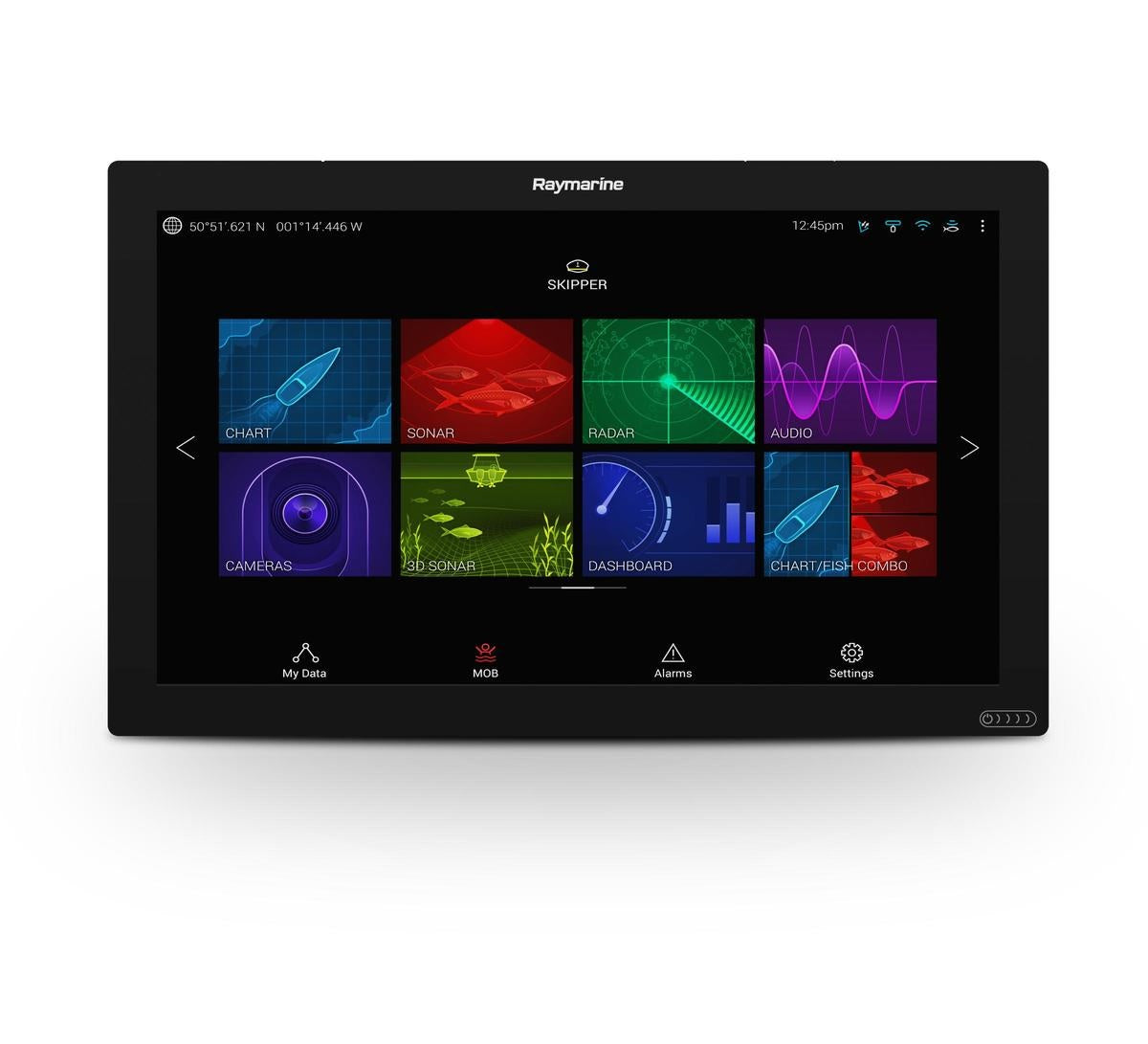

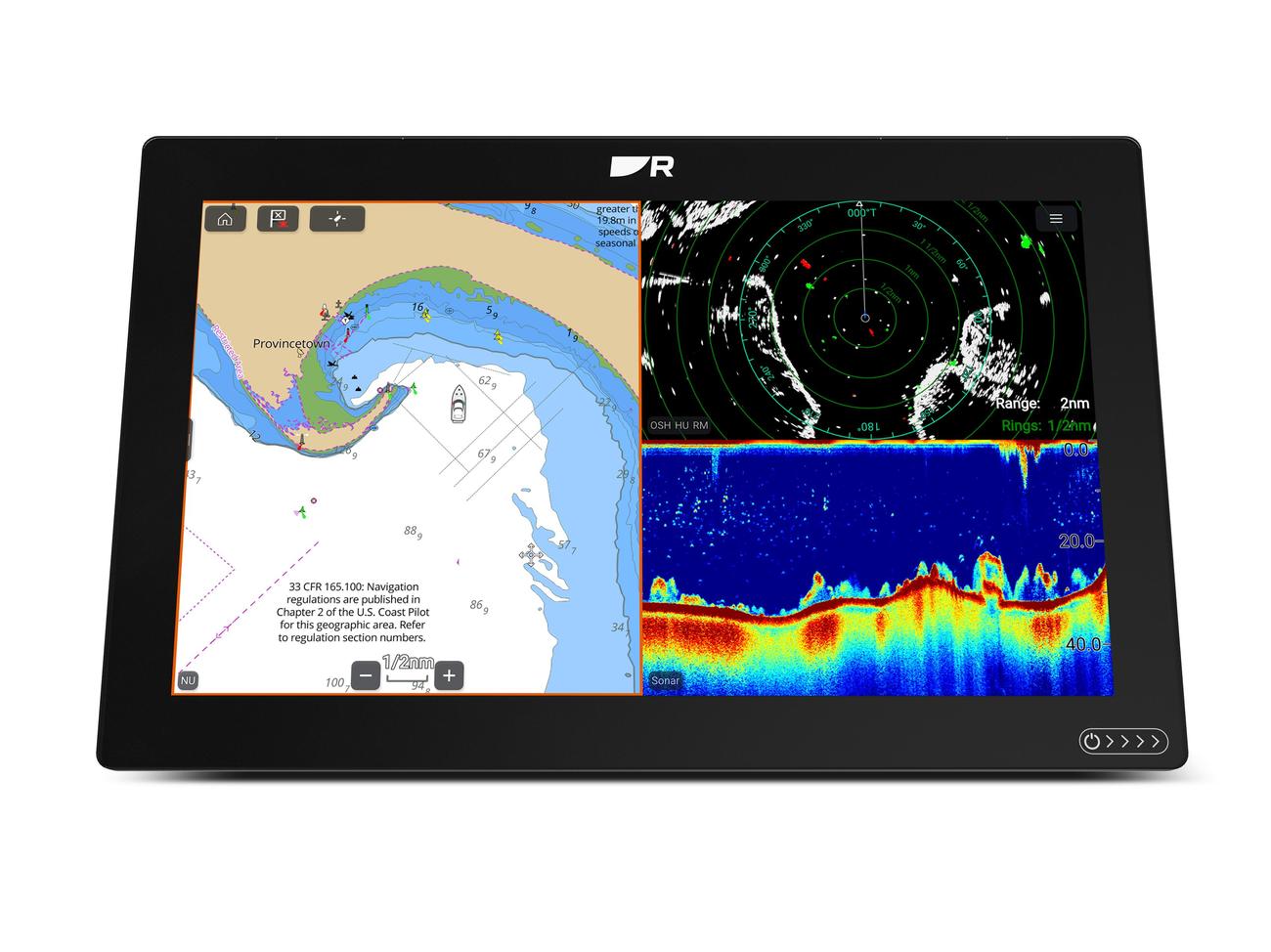

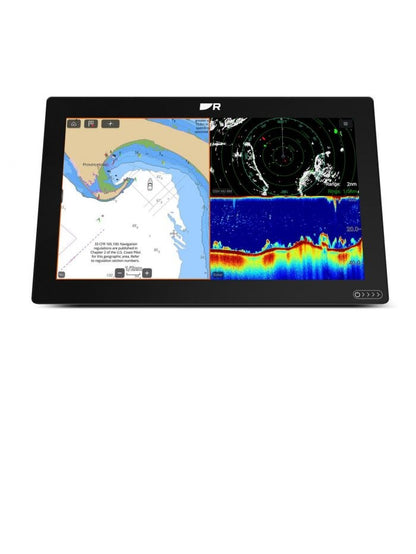

Raymarine Axiom2 XL Multifunction Displays – MFD Only

Models:

  • Axiom2 XL 24" (E70664)

  • Axiom2 XL 22" (E70663)

  • Axiom2 XL 19" (E70662)

  • Axiom2 XL 16" (E70661)

PRODUCT DESCRIPTION

The Raymarine Axiom2 XL series are flagship multifunction displays (MFDs) offering large-format navigation, chartplotter performance, and integration with radar, sonar, thermal imaging, autopilot, and video systems.

Built on the intuitive LightHouse operating system, the Axiom2 XL MFDs deliver fast chart redraws, seamless sensor integration, and touch or keypad control. HydroTough™ nano-coating ensures water-repellent, sunlight-readable displays, while smart backlighting automatically adjusts for day or night.

The XL series can integrate Quantum 2 or Cyclone radars, FLIR thermal cameras, CHIRP sonar modules (CP570 or RVM1600), and ClearCruise augmented reality cameras for enhanced situational awareness. Sailing features include preloaded polars, layline overlays, race timers, and dashboards for tactical sailing performance.

KEY FEATURES

  • Large-format HydroTough™ IPS display with Nano-coating for water-repellent, high-brightness performance

  • LightHouse OS for intuitive charting, navigation, and sensor integration

  • Compatible with Quantum 2 radome, Cyclone open array radar, and FLIR thermal cameras

  • CHIRP sonar compatible (CP570 deep water or RVM1600 RealVision MAX)

  • Smart sailing features: layline overlays, preloaded polars, sailing dashboards, race timers

  • Optional RMK-10 remote keypad for full control from helm

  • Built-in Wi-Fi & Bluetooth (except 16" variant), PoE RayNet Ethernet, HDMI in/out, USB connections

  • IPx6/IPx7 waterproof rating, operating temperature −25 °C to +55 °C

  • Rugged, weather-resistant design for open cockpit or glass bridge installations

COMPARISON TABLE

Feature Axiom2 XL 24" (E70664) Axiom2 XL 22" (E70663) Axiom2 XL 19" (E70662) Axiom2 XL 16" (E70661)
Display Size 24" 21.5" 18.5" 16"
Weight 11.3 kg (24.9 lbs) 9.9 kg (21.83 lbs) 7.6 kg (16.76 lbs) 5.9 kg (13 lbs)
Power Consumption @ 12 V DC 92.5 W 94.25 W 85.42 W 76.56 W
Power Consumption @ 24 V DC 77.96 W 79.46 W 73.98 W 71.53 W
Off Current @ 12 V DC PoE: 2,135 mA / No PoE: 352 mA PoE: 2,135 mA / No PoE: 352 mA PoE: 2,135 mA / No PoE: 352 mA PoE: 2,135 mA / No PoE: 352 mA
Operating Voltage 8–32 V DC 8–32 V DC 8–32 V DC 8–32 V DC
Fuse Rating 15 A 15 A 15 A 15 A
HydroTough™ Display Yes Yes Yes Yes
Touchscreen Yes Yes Yes Yes
Ethernet PoE RayNet 10/100/1000 Mbit/s PoE RayNet 10/100/1000 Mbit/s PoE RayNet 10/100/1000 Mbit/s PoE RayNet 10/100/1000 Mbit/s ×3
HDMI In/Out Yes Yes Yes Yes
USB Connections USB-A/B USB-A/B USB-A/B USB-A/B
Wireless Wi-Fi / Bluetooth Wi-Fi / Bluetooth Wi-Fi / Bluetooth USB accessory required
Best For Large helm stations, radar & sonar integration Large helm stations, radar & sonar integration Mid-size helm stations Compact helm stations

WHAT’S IN THE BOX (All Axiom2 XL Models)

  • Axiom2 XL MFD

  • Mounting gasket tape

  • Rear mounting bars ×2

  • Mounting bar fixings (M5x20 Pozi countersunk) ×4

  • Mounting feet ×4, bolts, wavy washers, nuts (M5x35)

  • Optional grounding connection (Screw M3x5, Spring washer M3, Crimp terminal M3)

  • DeviceNet → SeaTalkng adaptor cable 1 m (3.28 ft)

  • RayNet (Female–Female) network cable 2 m (6.56 ft)

  • Power/Video/Audio cable 1.5 m (4.92 ft) right-angled

  • Documentation
