Raymarine Augmented Reality & CAM300 Camera Systems
High‑Definition Marine Video and ClearCruise™ Augmented Navigation
The Raymarine CAM300 HD Marine Camera brings crystal‑clear video imaging, advanced low‑light performance, and complete Axiom integration in a compact, weather‑sealed design. Designed for above‑ or below‑deck mounting, it delivers a 160° wide‑angle HD view for situational awareness, crew monitoring, or fishing oversight.
When paired with the AR200 Augmented Reality Sensor (included with the Augmented Reality Pack), the system activates ClearCruise™ AR, which overlays live AIS targets, waypoints, and chart objects directly on the Axiom video feed for enhanced navigation awareness.
Model Numbers

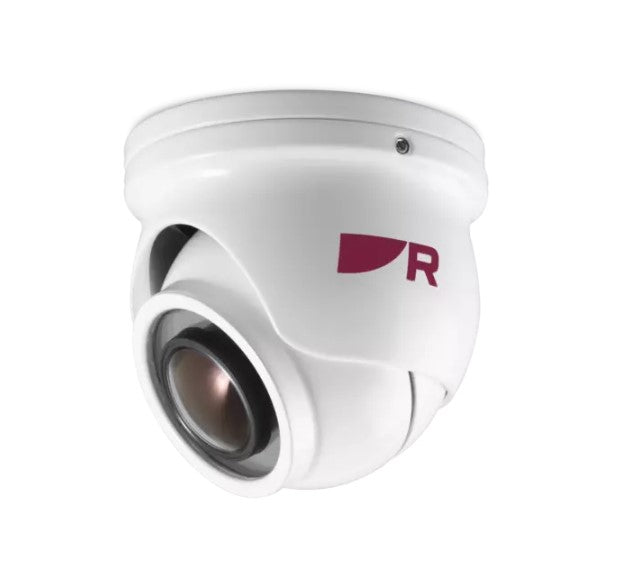

- Raymarine Augmented Reality Pack (CAM300 + AR200) – Model: T70581

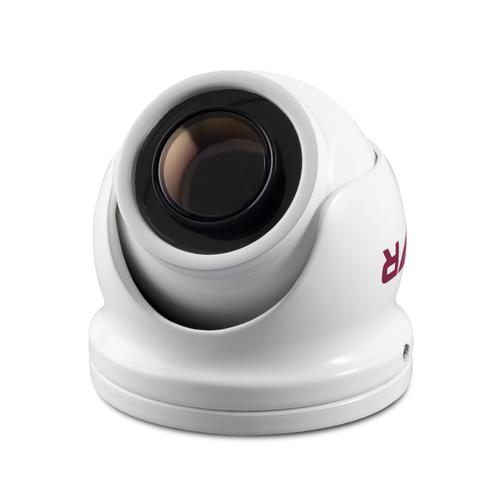

- Raymarine CAM300 HD Video Camera (Standalone) – Model: E70660
Key Features
- Crystal‑clear HD video feed with 3 MP CMOS sensor (1080p / 3 MP max output).
- Wide 160° × 130° field‑of‑view for maximum coverage on deck or aft.
- 6 IR LED emitters for night vision up to 33 ft (10 m) range.
- ONVIF Profile S support for third‑party integration.
- Image invert/flip modes for ball‑up or ball‑down mounting.
- IP66 waterproof aluminum housing for harsh marine environments.
- Power over Ethernet (IEEE 802.3af, Class 1) or 12 V DC connection.
- Compact design: Base diameter 59.5 mm × height 52.9 mm, weight 0.42 kg.
- View up to four CAM300 streams simultaneously on a single Axiom display.
- ClearCruise™ AR capable when combined with AR200 sensor.
Model Comparison
| Model | T70581 (AR Pack) | E70660 (CAM300) |
|---|---|---|
| Includes Camera | Yes (CAM300 included) | Yes |
| Includes AR Sensor | AR200 included | No |
| Augmented Reality Support | ClearCruise™ AR (when used with Axiom 4.2 +) | Optional (AR200 required) |
| Mounting | Flexible ball‑swivel, ball‑up or ball‑down | Flexible ball‑swivel |
| Night Vision | Infrared emitters – 33 ft range | Infrared emitters – 33 ft range |
| Power Options | PoE or 12 V DC | PoE or 12 V DC |
| Networking | Ethernet / ONVIF Profile S | Ethernet / ONVIF Profile S |
| Waterproof Rating | IP66 | IP66 |
| Operating Temp | –30 °C to +60 °C | –30 °C to +60 °C |
| Field of View | 160° H × 130° V | 160° H × 130° V |
Technical Specifications
- Sensor: 3 MP CMOS (1/4") Codec: H.264 / dual stream
- Resolution: 2304 × 1296 (3 MP max) Frame Rate: 25 fps
- Voltage: 10.8 – 15.6 V DC | PoE Class 1 (1.8 W max)
- Power Use: 1 W nominal | 1.8 W max (with IR LEDs on)
- Operating Temp: –30 °C to +60 °C Water Rating: IP66
- Dimensions: 59.5 mm Ø × 52.9 mm H Weight: 0.42 kg (0.93 lb)
- Compatibility: Axiom Series running LightHouse 4.2 or later
What’s in the Box
Augmented Reality Pack (T70581):
- CAM300 Mini HD IP Camera
- AR200 Augmented Reality Sensor
- 1 m SeaTalkNG Backbone Cable
- T‑Connector
- 10 m RayNet Cable
CAM300 Standalone (E70660):
- CAM300 Camera with 670 mm fitted RJ45/power cable
- Mounting screws (× 3) and waterproof gasket
- Hex wrench (Allen key)
- Documentation
