Raymarine CP Series Sonar Modules.

Raymarine CP Series Sonar Modules

Models:

• CP370 Digital Sonar Module (Model: E70297)

• CP470 CHIRP Sonar Module (Model: E70298)

• CP570 Professional Grade CHIRP Sonar Module (Model: E70258)

Key Features

Raymarine’s CP series sonar modules deliver high-resolution sonar performance for serious anglers and offshore fishing enthusiasts. Utilizing advanced CHIRP technology and ClearPulse processing, these sonar modules provide superior target separation, clutter reduction, and detailed underwater imagery up to great depths.

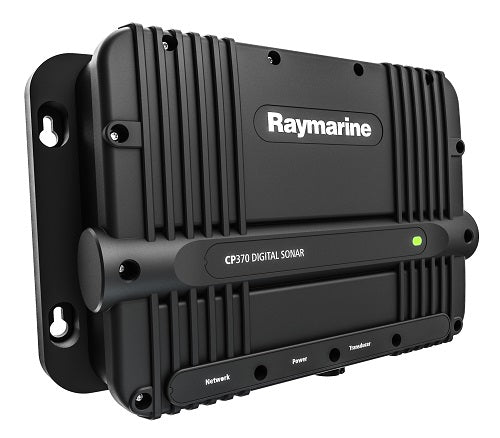

CP370 Digital Sonar Module

• Up to 1000W power, dual-frequency 50/200 kHz operating range

• ClearPulse digital sonar with automatic noise filtering and sensitivity control

• Depth range up to 5000 ft (1500m)

• Enhanced bottom tracking algorithms for challenging conditions

• Compatible with aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, and E-Widescreen displays

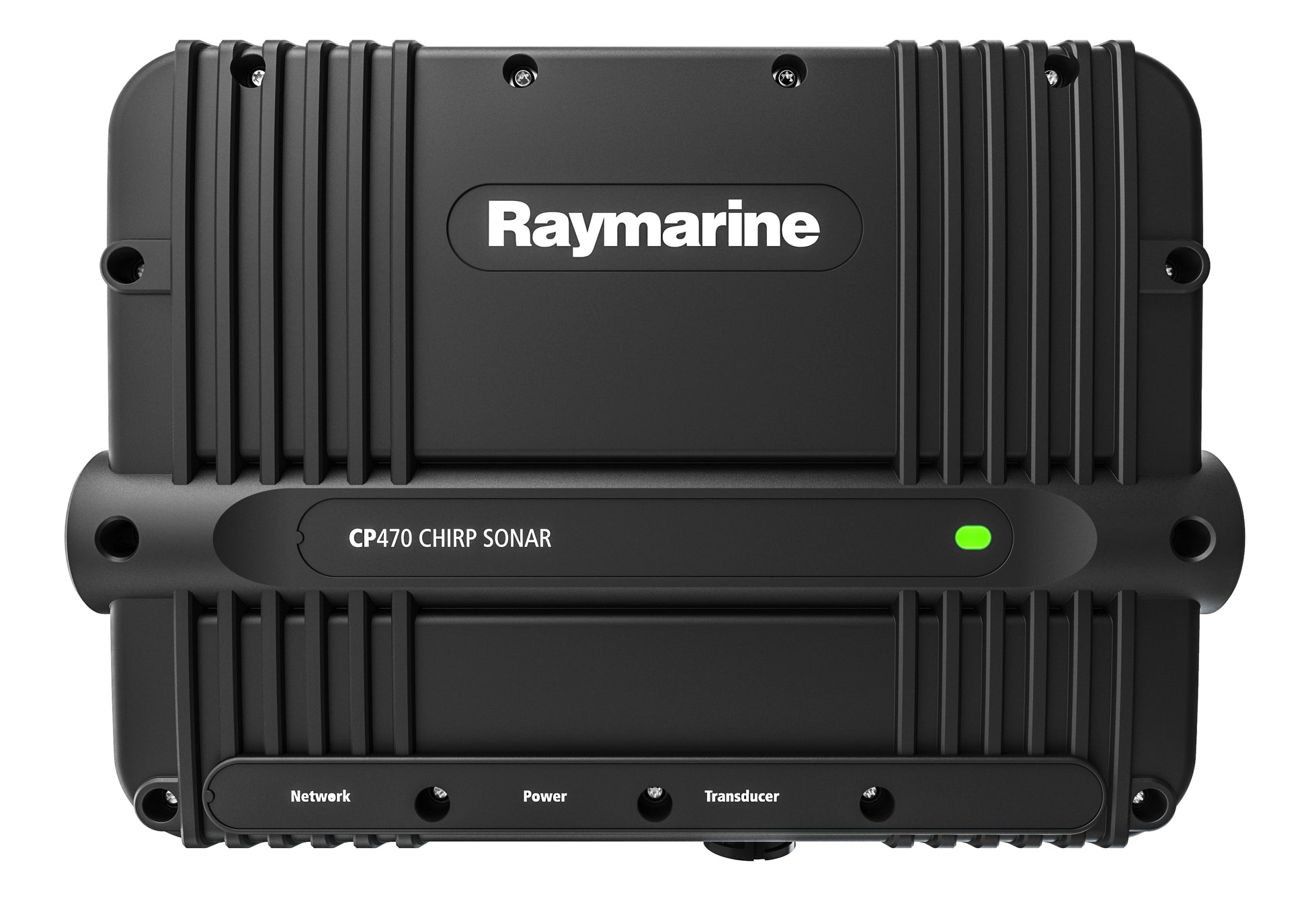

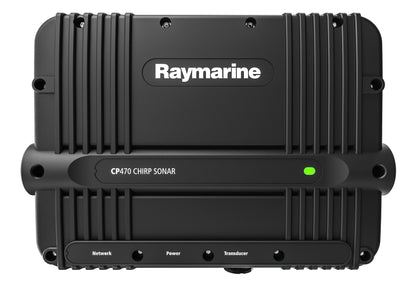

CP470 CHIRP Sonar Module

• 1kW / 2kW power depending on transducer

• Dual CHIRP channels with wide frequency range (25-250 kHz)

• Depth range up to 10,000 ft (3000m)

• Improved target definition and noise reduction

• Compatible with aSeries, cSeries, eSeries, gS Series

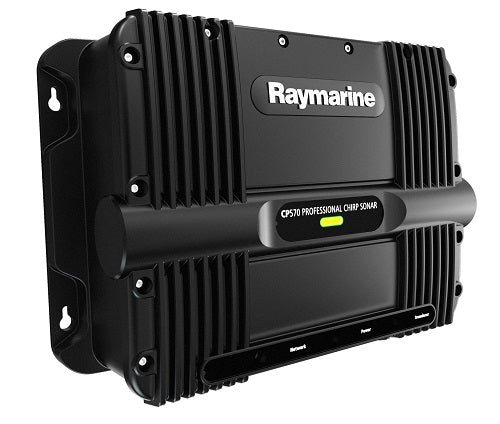

CP570 Professional Grade CHIRP Sonar Module

• Max 4kW output power using two independent CHIRP channels

• Wide spectrum CHIRP sonar technology for enhanced sensitivity and target separation

• Depth range up to 10,000 ft (3000m)

• TruZoom™ magnification without resolution loss

• Ultra-fast ping for accurate bottom tracking offshore

• Compatible with aSeries, cSeries, eSeries, and gS Series

Comparison Table

What’s in the Box

• CP370, CP470, or CP570 Sonar Module unit

• Power cable (1.5m)

• RayNet Female to Female network cable (2m)

• Fixing screws (4x No.8)

• Documentation pack
