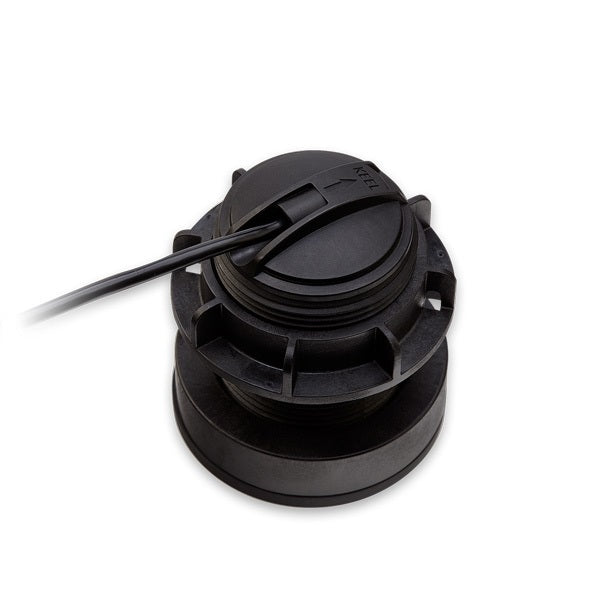

Raymarine CPT-S Plastic TH High Chirp Transducer Series.
Couldn't load pickup availability
Description
Description
Raymarine CPT-S Plastic Through-Hull CHIRP Sonar Transducers
Models:
-
CPT-S Plastic 20° Angled Element (Model: A80447)
-
CPT-S Plastic 12° Angled Element (Model: A80448)
-
CPT-S Plastic 0° Angled Element (Model: E70339)
These CPT-S plastic through-hull transducers provide reliable, high-resolution CHIRP sonar depth information with a wide 25° conical beam. Designed for use on fiberglass and aluminum hulls, each model compensates for specific deadrise angles to optimize the sonar beam alignment and performance.
Key Features
-
Installation Type: Through Hull
-
Material: Urethane (plastic)
-
Max. Depth: 900 ft (274 m)
-
Frequency: High CHIRP Fishfinder (170-230 kHz)
-
Beam Width: 25°
-
Records: Depth
-
Supported Deadrise Angles:
-
A80447: 16° to 25°
-
A80448: 6° to 15°
-
E70339: 0° to 5°
-
These transducers support Raymarine Axiom, Element S, and other compatible chartplotters, providing excellent sonar performance for various hull configurations.
Comparison Table
| Feature | A80447 (20°) | A80448 (12°) | E70339 (0°) |
|---|---|---|---|
| Installation Type | Through Hull | Through Hull | Through Hull |
| Material | Urethane (Plastic) | Urethane (Plastic) | Urethane (Plastic) |
| Max Depth (ft) | 900 | 900 | 900 |
| Frequency | CHIRP Fishfinder | CHIRP Fishfinder | CHIRP Fishfinder |
| Beam Width | 25° | 25° | 25° |
| Records | Depth | Depth | Depth |
| Supported Deadrise | 16°–25° | 6°–15° | 0°–5° |
What’s in the Box
-
Raymarine CPT-S Plastic Through Hull Transducer (model ordered)
-
10 m (approx.) cable with Raymarine connector
-
Mounting gasket and installation hardware
-
Installation guide and manual
