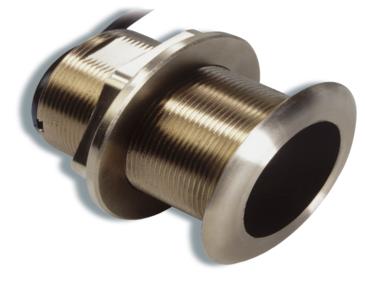

Raymarine Tilted Element Bronze TH 50/200 B60.

Raymarine B60 Tilted Element Through-Hull Transducers

Models:

• B60 20° Tilted Element – Model: E66085

• B60 12° Tilted Element – Model: E66086

 Key Features

Raymarine’s B60 Bronze Tilted Element Transducers combine compact, low-profile design with dual-frequency 50/200 kHz CHIRP-enabled depth and temperature sensing. Their flush-mount style eliminates the need for a fairing block, minimizing drag and enhancing sonar performance.

A built-in Tilted Element Technology compensates for your hull’s deadrise angle, directing the sonar beam straight down for clearer, more accurate bottom tracking, even on deep or angled hulls.

These highly reliable, mid-performance transducers are ideal for smaller powerboats and sailboats with fiberglass or wooden hulls, and are directly compatible with Raymarine CP300, CP370, DSM30, and DSM300 sonar modules.

Key Features

• Dual frequency operation (50 kHz / 200 kHz)

• Power rating: 600 W RMS

• Bronze housing – ideal for fiberglass or wood hulls

• Depth and fast-response temperature sensing

• Flush, low-profile design minimizes drag (extends only 3/16" from the hull)

• Ceramic element fixed at angle to compensate for deadrise (12° or 20°)

• Built-in temperature sensor

• Excellent echo returns for better bottom tracking and target detection

Specifications

What’s in the Box

• • Raymarine B60 Bronze Tilted Element Transducer (12° or 20° model ordered)

  • 10 m (33 ft) cable with Raymarine 8‑pin connector

  • Rubber mounting gasket and installation hardware

  • Installation template and documentation
