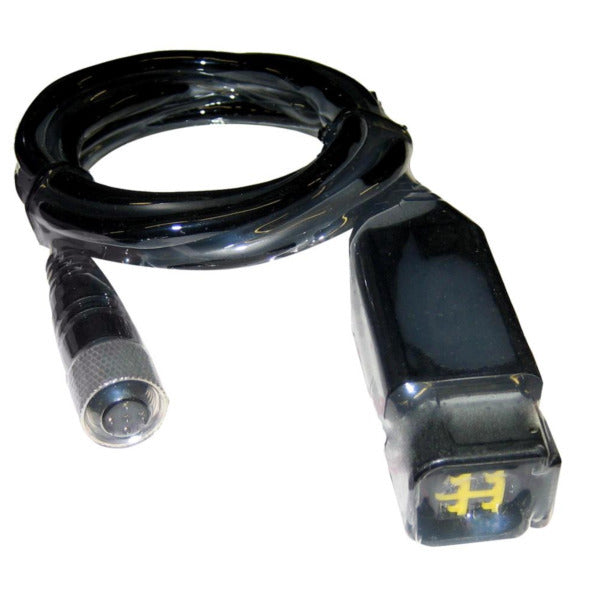

Raymarine E70242 Yamaha Cable For COMMAND-LINK Plus

Product Description

Raymarine Yamaha Command-Link Plus Cable (E70242) connects the NMEA2000 (DeviceNet) port of the ECI-100 interface to Yamaha Command-Link or Command-Link Plus engine hubs. This 1-meter cable enables engine data integration into Raymarine SeaTalkNG networks on marine vessels.

Product Overview

Boat technicians use this cable to link Yamaha outboard engines with Raymarine displays for real-time monitoring. It supports tachometer readings, fuel flow, trim position, and alarms during navigation and fishing operations.

Key Specifications

• 1-meter length for engine compartment routing.

• NMEA2000 DeviceNet male to Yamaha Command-Link Plus connector.

• Waterproof, corrosion-resistant marine-grade construction.

• Compact boxed dimensions: 2"H x 9"W x 12"L; weight 0.4 lbs.

Technical Specifications

• Interfaces Yamaha Command-Link Plus data bus with SeaTalkNG protocols.

• Backbone-powered via 12V DC with bidirectional engine parameter flow.

• Threaded connectors for secure vibration-resistant marine attachment.


What's in the Box

• Single E70242 Yamaha Command-Link Plus Cable (1m).

• No additional adapters, terminators, or mounting hardware included.
