Raymarine Element HV100 Transom Transducer Lighthouse North America Chart.

$1,389.95

~~$1,399.99~~ $1,389.95

Sold out

Shipping calculated at checkout.

Out of stock

Screen Size: 12 inch 12 inch 9 inch 7 inch

Description

Raymarine Element HV Series - HyperVision™ Sonar/GPS Combo with HV-100 Transducer & LightHouse North America Chart

Models:

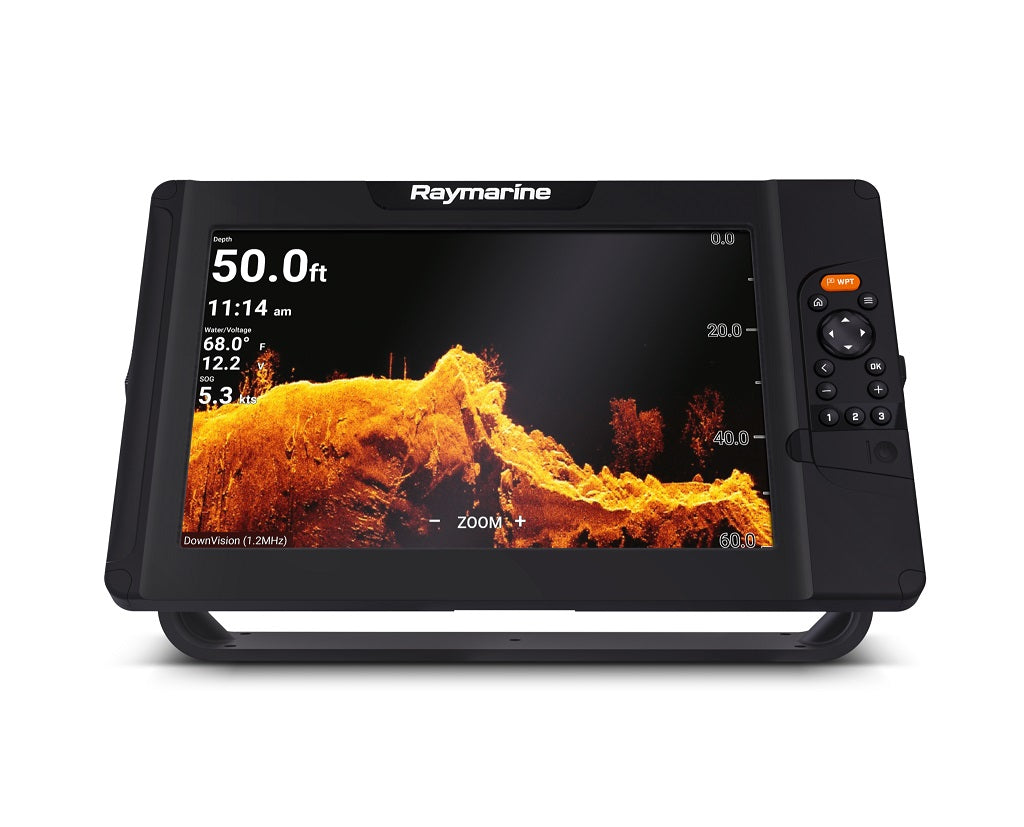

Element 12HV (E70536-05-102)

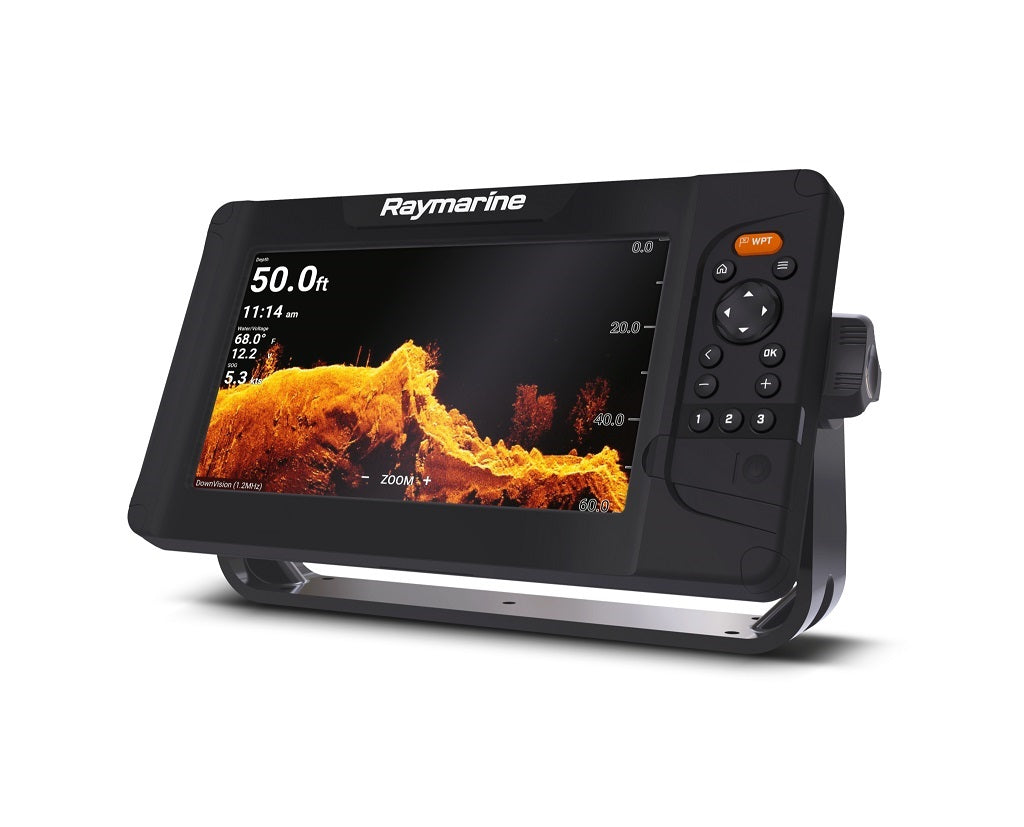

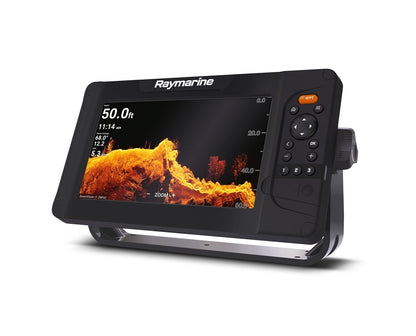

Element 9HV (E70534-05-102)

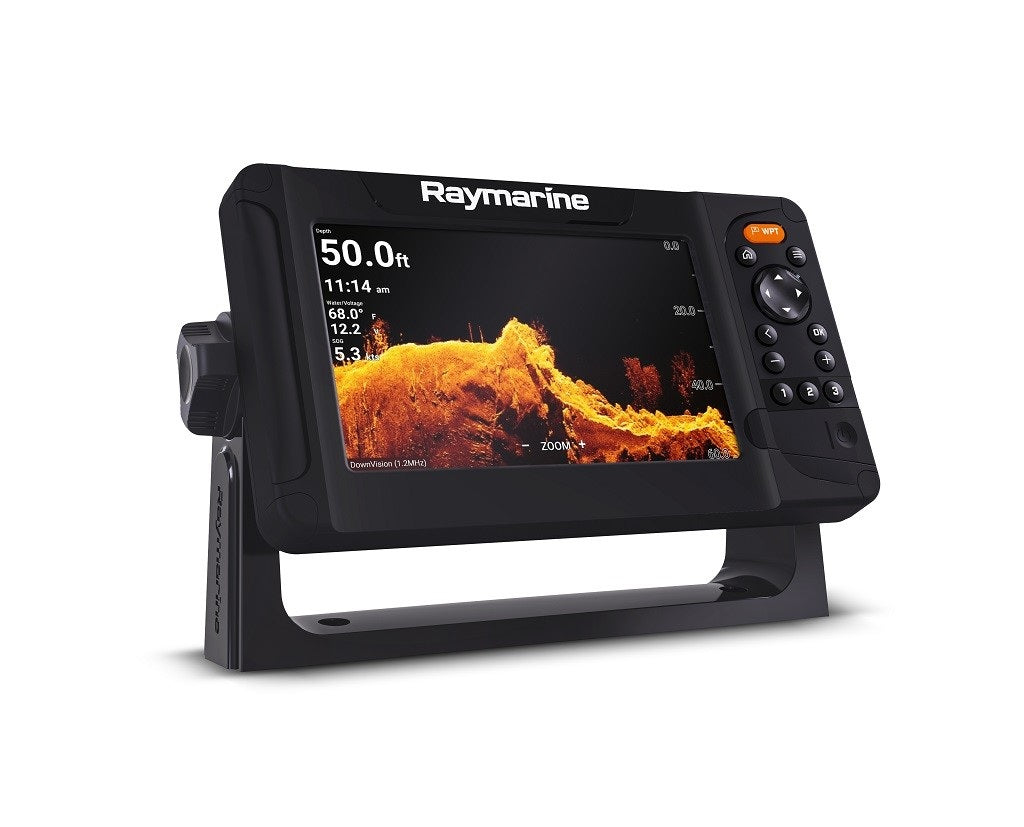

Element 7HV (E70532-05-102)

Product Description

The Raymarine Element HV Series combines cutting-edge sonar clarity with advanced charting performance in a rugged, high-brightness package designed for serious anglers.
Featuring HyperVision™ 1.2 MHz sonar for photo-like underwater imaging and RealVision™ 3D for unparalleled structure awareness, Element displays reveal the underwater world with incredible detail.

Powered by a quad-core processor, the Element HV Series ensures instantaneous sonar refresh and chart redraws.
Each unit comes complete with an HV-100 transducer and LightHouse North America Chart (Fishing Hot Spots), offering an all-in-one solution ready for immediate use.

With intuitive keypad control, RealBathy™ live mapping, and NMEA2000 integration, these units are engineered for freshwater and coastal fishing—offering precision, power, and reliability on every trip.

Key Features

HyperVision™ 1.2 MHz CHIRP sonar for ultra-high-resolution DownVision™, SideVision™, and RealVision™ 3D
RealBathy™ live bathymetry mapping – create detailed depth maps on the fly
Quad-core processor for fast sonar refresh and chart redraws
Built-in 10 Hz GPS / GLONASS receiver for accurate positioning
Dedicated keypad interface with large waypoint key and user-programmable shortcuts
Preloaded LightHouse North America Chart (Fishing Hot Spots)
NMEA2000 connectivity for autopilot, engines, tanks, and other networked devices
IPx6 / IPx7 waterproof rating – built for harsh marine conditions
Dual voltage (8–16 V DC) power input
Comes complete with HV-100 transducer, mounting accessories, and chart card

Comparison Table

Feature	Element 12HV (E70536-05-102)	Element 9HV (E70534-05-102)	Element 7HV (E70532-05-102)
Display Size & Type	12.0" Optically bonded LCD	9.0" Optically bonded LCD	7.0" Optically bonded LCD
Resolution	1280 × 800 (WXGA)	800 × 480 (WVGA)	1280 × 800 (WXGA)
Brightness	1,500 nits	1,500 nits	1,500 nits
Display Type	Non-touch, keypad control	Non-touch, keypad control	Non-touch, keypad control
Sonar Technology	HyperVision™ 1.2 MHz, CHIRP Down/SideVision™, RealVision™ 3D	HyperVision™ 1.2 MHz, CHIRP Down/SideVision™, RealVision™ 3D	HyperVision™ 1.2 MHz, CHIRP Down/SideVision™, RealVision™ 3D
Sonar Depth	600 ft (350 kHz) / 100 ft (1.2 MHz)	600 ft (350 kHz) / 100 ft (1.2 MHz)	600 ft (350 kHz) / 100 ft (1.2 MHz)
Transducer	HV-100 Transom Mount	HV-100 Transom Mount	HV-100 Transom Mount
Processor	Quad-core	Quad-core	Quad-core
GPS / GNSS	Built-in 10 Hz GPS / GLONASS	Built-in 10 Hz GPS / GLONASS	Built-in 10 Hz GPS / GLONASS
Networking	1 × NMEA2000 (DeviceNet microC)	1 × NMEA2000 (DeviceNet microC)	1 × NMEA2000 (DeviceNet microC)
Wi-Fi / Bluetooth	Yes (802.11 b/g/n, BT 4.0)	Yes (802.11 b/g/n, BT 4.0)	Yes (802.11 b/g/n, BT 4.0)
Power Consumption (12 V DC)	25 W max	20 W max	15 W max
Voltage Range	8–16 V DC	8–16 V DC	8–16 V DC
Internal Memory	8 GB	8 GB	8 GB
External Memory	1 × microSD slot	1 × microSD slot	1 × microSD slot
Waterproof Rating	IPx6 / IPx7	IPx6 / IPx7	IPx6 / IPx7
Operating Temperature	−25 °C to +55 °C	−25 °C to +55 °C	−25 °C to +55 °C
Dimensions (W × H × D)	357 × 215 × 62 mm	287 × 161 × 62 mm	240 × 135 × 62 mm
Weight	6.5 lb	5.0 lb	3.0 lb
Included Chart	LightHouse North America Chart (Fishing Hot Spots)	LightHouse NC2 US w/ Fishing Hot Spots	LightHouse North America Chart (Fishing Hot Spots)
Best For	Offshore / large vessel sportfishing	Mid-size fishing and coastal boats	Compact craft / kayak / freshwater fishing
