Raymarine Element HV No Transducer Lighthouse North America Chart.

$1,299.95

~~$1,299.99~~ $1,299.95

Sold out

Shipping calculated at checkout.

Out of stock

Screen Size: 12 inch 12 inch 9 inch 7 inch

Description

Raymarine Element HV Series Chartplotter / Fish Finder Combos (No Transducer)
High‑Definition HyperVision™ Sonar and LightHouse NC3 Charting for Anglers and Adventurers

The Raymarine Element HV (HyperVision™) Series combines advanced CHIRP sonar imaging, lightning‑fast performance, and intuitive operation for anglers who demand clarity and speed on the water. Powered by a quad‑core processor and featuring bright, sunlight‑viewable displays, Element HV delivers crisp real‑time sonar views and instantaneous chart redraws.

Each display offers HyperVision™ 1.2 MHz CHIRP, DownVision™, SideVision™, and RealVision™ 3D for photo‑like underwater imaging and precise fish identification. RealBathy™ personal mapping and preloaded LightHouse NC3 US Charts with Fishing Hot Spots make these units ready for action both offshore and inland.

Model Numbers

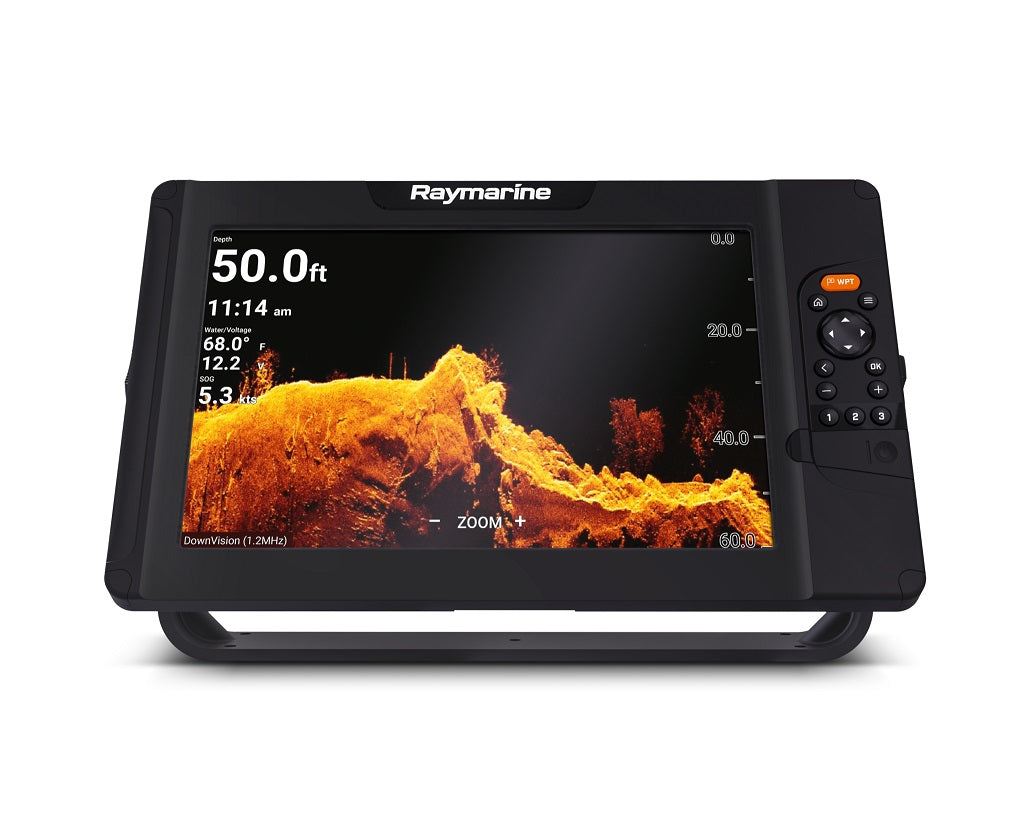

- Element 12 HV Combo w/ LNC3 US Chart (No Transducer) – Model: E70536‑00‑102

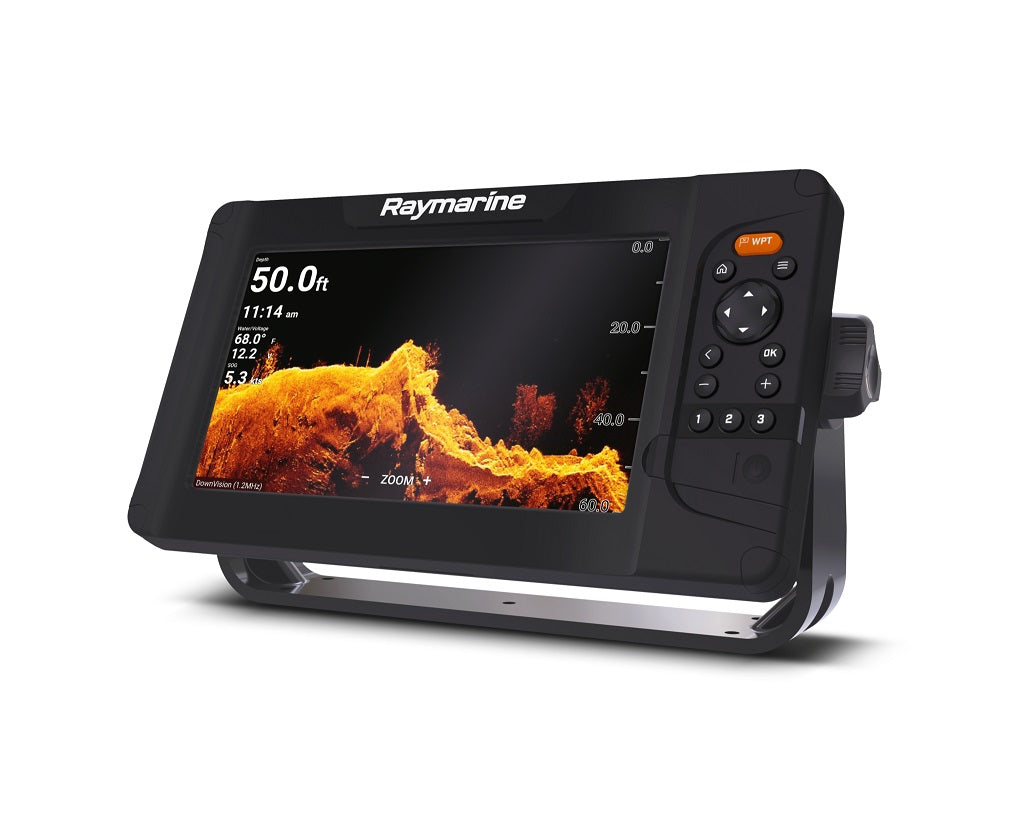

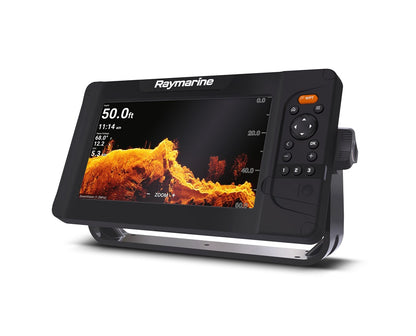

- Element 9 HV Combo w/ LNC3 US Chart (No Transducer) – Model: E70534‑00‑102

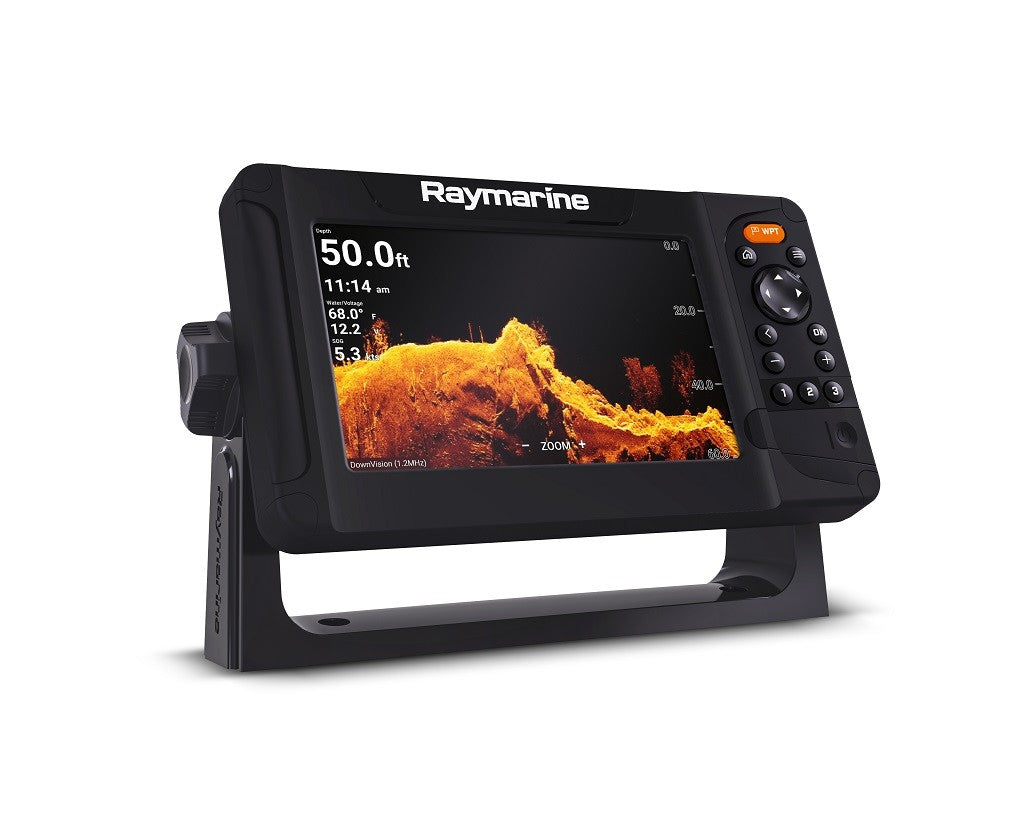

- Element 7 HV Combo w/ LNC3 US Chart (No Transducer) – Model: E70532‑00‑102

Key Features

- HyperVision™ 1.2 MHz CHIRP Sonar offering 3× the clarity of conventional imaging.
- RealVision™ 3D and DownVision™ / SideVision™ CHIRP views for structure and fish recognition.
- RealBathy™ live mapping creates personal bathymetric charts on the fly.
- Quad‑core processor – instant chart redraw and smooth 3D rendering.
- Intuitive keypad navigation with dedicated waypoint marking button.
- Preloaded LightHouse NC3 US Charts with Fishing Hot Spots.
- NMEA 2000 network port for autopilot, engine, and sensor integration.
- Supports Navionics, C‑MAP, and Raymarine charting options.
- Wi‑Fi 802.11 b/g/n and Bluetooth 4.0 LE connectivity.
- IPX6 / IPX7 waterproof rating and 8–16 V DC power range.

Model Comparison

Model	Element 12 HV	Element 9 HV	Element 7 HV
Display Size	12.0" LCD	9.0" LCD	7.0" LCD
Resolution	1280 × 800 (WXGA)	800 × 480 (WVGA)	800 × 480 (WVGA)
Brightness	1,500 nits	1,500 nits	1,500 nits
Sonar Type	CHIRP, DownVision™, SideVision™, RealVision 3D, HyperVision	Same	Same
Sonar Frequency	1.2 MHz / 350 kHz	1.2 MHz / 350 kHz	1.2 MHz / 350 kHz
Max Depth (CHIRP)	900 ft	900 ft	900 ft
Processor	Quad‑core	Quad‑core	Quad‑core
Networking	1 × NMEA 2000	1 × NMEA 2000	1 × NMEA 2000
Wireless	Wi‑Fi & Bluetooth 4.0 LE	Wi‑Fi & Bluetooth 4.0 LE	Wi‑Fi & Bluetooth 4.0 LE
Internal Memory	8 GB SSD	8 GB SSD	8 GB SSD
External Card	1 × MicroSD (up to 2 TB)	1 × MicroSD (up to 2 TB)	1 × MicroSD (up to 2 TB)
Power Consumption (@ 12 V DC)	25 W	20 W	15 W
Voltage Range	8–16 V DC	8–16 V DC	8–16 V DC
Waterproof Rating	IPX6 / IPX7	IPX6 / IPX7	IPX6 / IPX7
Dimensions (W × H × D)	14.1 × 8.5 × 2.4 in	11.3 × 6.3 × 2.4 in	9.5 × 5.3 × 2.4 in
Weight	6.5 lb	5.0 lb	3.0 lb

Technical Specifications

- GNSS: Built‑in GPS / GLONASS receiver (10 Hz on 7 HV model).
- Sonar Connection: 15‑pin HyperVision™ transducer port (transducer not included).
- Waypoint Capacity: 10,000 points | 150 routes | 16 tracks.
- Operating Temp: –25 °C to +55 °C (–13 °F to 131 °F).
- Storage Temp: –30 °C to +70 °C (–22 °F to 158 °F).
- Mounting Options: Trunnion / Surface / Flush.
- Supported Charts: LightHouse NC3 US (with Fishing Hot Spots), Navionics, C‑MAP.

What’s in the Box

Element 12 HV Combo (E70536‑00‑102):
- Element 12 HV Display
- Trunnion and Surface Mount Kits + Hardware
- Sun Cover
- Power / NMEA2000 Cable (1.5 m)
- LightHouse NC3 US Chart (microSD)
- Documentation Pack

Element 9 HV Combo (E70534‑00‑102):
- Element 9 HV Display
- Trunnion and Flush Mount Kits + Hardware
- Sun Cover
- Power / NMEA2000 Cable (1.5 m)
- LightHouse NC3 US Chart (microSD)
- Documentation Pack

Element 7 HV Combo (E70532‑00‑102):
- Element 7 HV Display
- Trunnion and Flush Mount Kits + Hardware
- Sun Cover
- Power / NMEA2000 Cable (1.5 m)
- LightHouse NC3 US Chart (microSD)
- Documentation Pack
