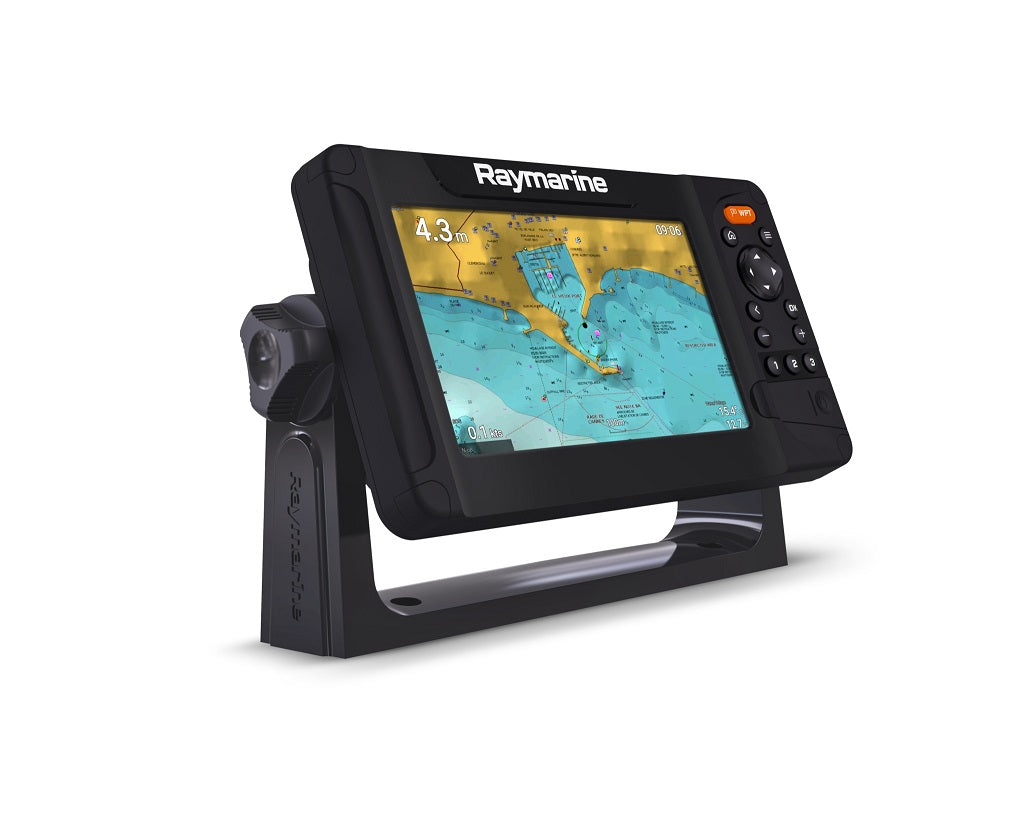

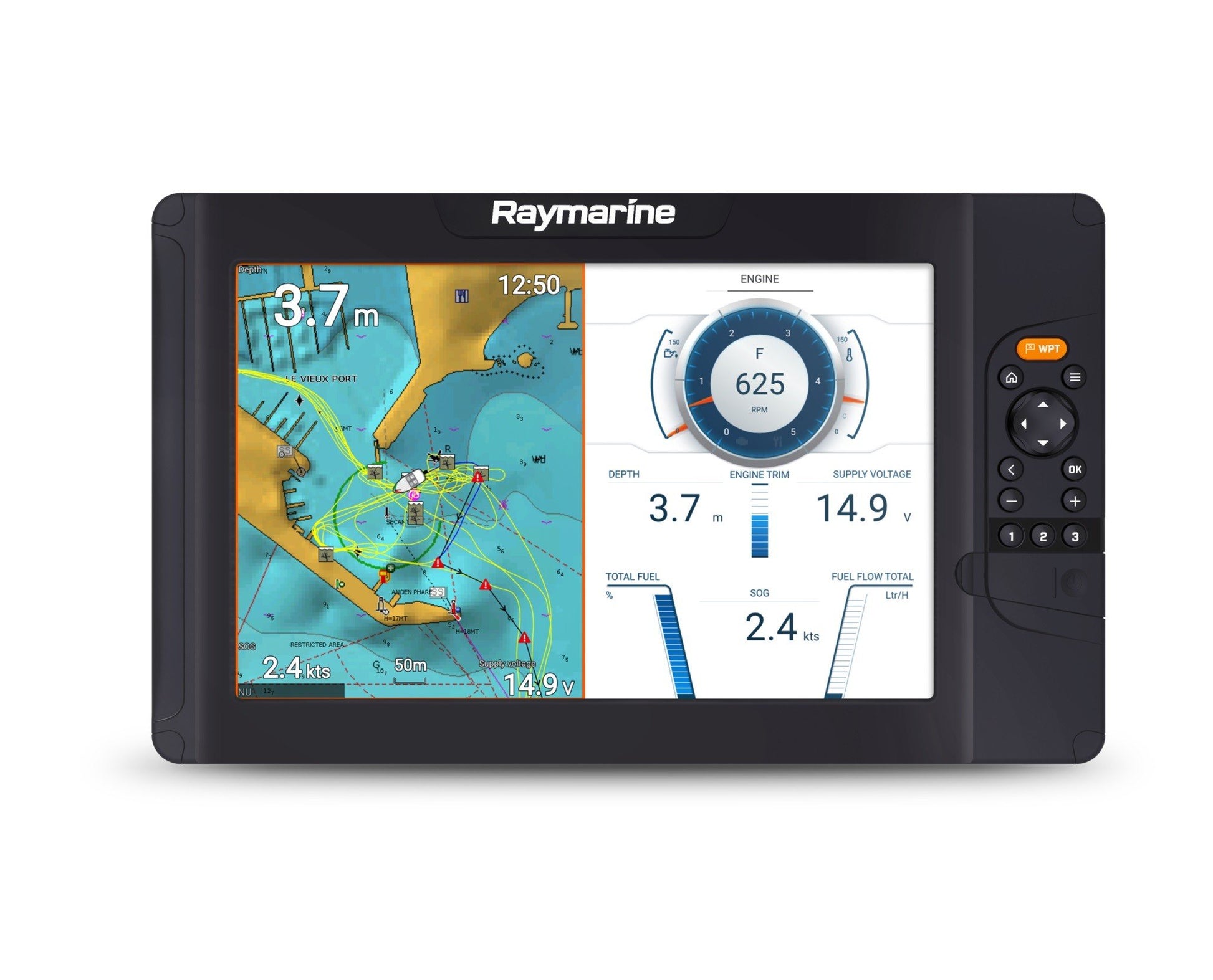

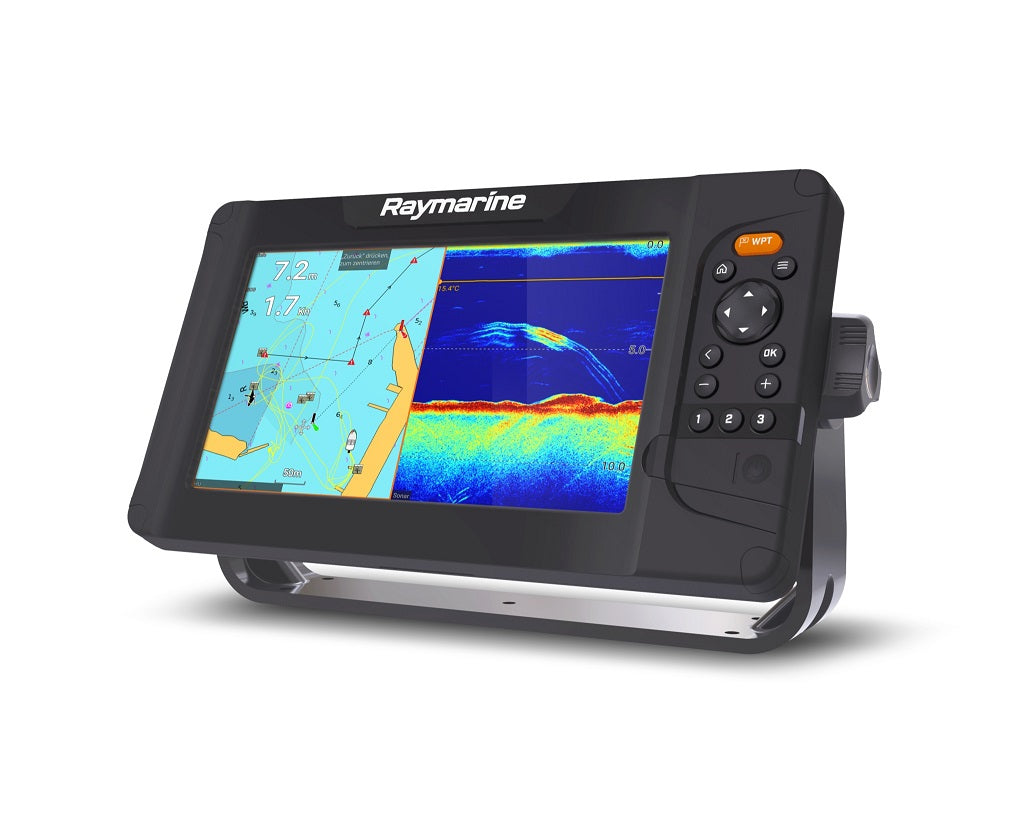

Raymarine Element S MFD No Transducer Lighthouse North America Chart.

$1,062.95

~~$1,149.99~~ $1,062.95

Sold out

Shipping calculated at checkout.

Out of stock

Screen Size: 12 inch 12 inch 9 inch 7 inch

Description

Raymarine Element Series — 12S, 9S & 7S Multifunction Displays (MFD) With Lighthouse North America Chart (No Transducer) 12",9"&7"

Models: E7053500102 (12S) | E7053300102 (9S) | E7053100102 (7S)

Product Description

The Raymarine Element Series offers reliable, fast, and straightforward navigation with bright, sunlight-viewable displays, perfect for sailing, power cruising, and fishing. Powered by a quad-core processor and a high-accuracy 10 Hz GPS/GNSS, these displays provide instant chart updates and responsive performance.

Each model comes equipped with High CHIRP sonar for precise depth and bottom contour imaging, plus RealBathy™ personal sonar mapping to chart uncharted waters in real time. Support for Raymarine LightHouse™ charts—including the LightHouse North America chart—along with Navionics® and C-MAP, allows you to select the maps that best suit your boating style. Optional wireless radar and AIS receivers further expand your situational awareness.

The intuitive LightHouse Sport OS makes navigation simple and customizable, with oversized waypoint keys, programmable quick keys, and live menus that change in real-time for easy chart management. Seamlessly connect to Raymarine’s ecosystem of autopilots, sailing instruments, engines, tanks, and VHF via NMEA2000®, Wi-Fi, and Bluetooth.

Key Features

Super Bright, Sunlight-Viewable Display: 12", 9", or 7" Optically Bonded LCD screens with 1500 nits brightness and excellent wide angles.
Fast Performance: Quad-core processors delivering quick redraws and smooth operation.
Advanced Sonar: Built-in High CHIRP sonar with CPT-S transducer support, delivering detailed images of depth, structure, and bottom contours.
Personal Mapping: RealBathy™ allows you to map uncharted areas for personalized bathymetric data.
Support for LightHouse™ Charts: Includes the popular LightHouse North America chart, featuring fishing hotspots, detailed coastlines, and harbor information. Additional options include Navionics® and C-MAP charts tailored to your region.
Expandable & Connected: Compatible with Quantum™ wireless CHIRP radar, AIS receivers, autopilots, and a range of NMEA2000 sensors.
Easy Customization: Live menus, a large waypoint key, and configurable quick keys enhance control and ease of use.
Robust Design: IPx6/IPx7 waterproof, durable against shocks, vibrations, and extreme temperatures.

Comparison Table

Feature	Element 12S (E70535)	Element 9S (E70533)	Element 7S (E70531)
Display Size	12.0" WXGA (1280×800), 1500 nits	9.0" WVGA (800×480), 1500 nits	7.0" WVGA (800×480), 1500 nits
Dimensions (W×H×D mm)	348 × 229 × 83	287 × 161 × 62	240 × 135 × 62
Weight	6.5 lbs (2.95 kg)	5.0 lbs (2.27 kg)	3.0 lbs (1.36 kg)
Processor	Quad-core	Quad-core	Quad-core
Sonar Type	High CHIRP, single channel	High CHIRP, single channel	High CHIRP, single channel
Sonar Depth	274 m (900 ft)	274 m (900 ft)	274 m (900 ft)
GPS / GNSS	Built-in 10Hz GPS/GLONASS	Built-in 10Hz GPS/GLONASS	Built-in 10Hz GPS/GLONASS
Chart Support	Navionics®, C-MAP, LightHouse NC3 North America	Navionics®, C-MAP, LightHouse NC3 North America	Navionics®, C-MAP, LightHouse NC3 North America
RealBathy™ Mapping	Yes	Yes	Yes
Wireless / Connectivity	Wi-Fi, Bluetooth, NMEA2000	Wi-Fi, Bluetooth, NMEA2000	Wi-Fi, Bluetooth, NMEA2000
Radar Support	Quantum wireless CHIRP radar	Quantum wireless CHIRP radar	Quantum wireless CHIRP radar
Waypoints / Routes / Tracks	5,000 / 50 / 15	5,000 / 50 / 15	5,000 / 50 / 15
Waterproof Rating	IPx6/IPx7	IPx6/IPx7	IPx6/IPx7
