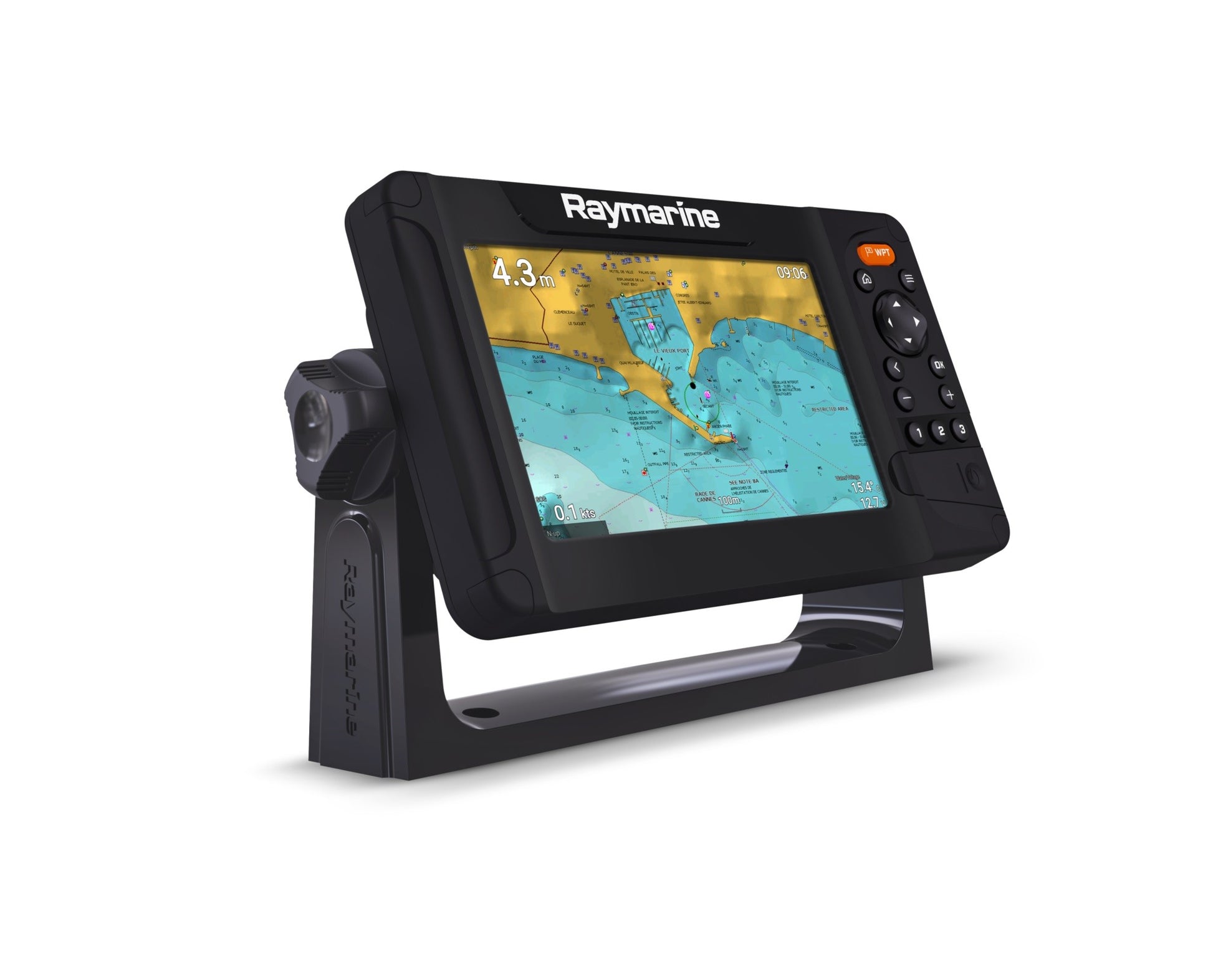

Raymarine Element 7S 7.0" MFD
Models: E70531 | E70531-00-102
Product Description
The Raymarine Element 7S delivers powerful navigation and sonar performance in a compact 7-inch display — perfect for smaller boats, sailboats, and day cruisers. Powered by a quad-core processor and a 10 Hz GPS/GNSS, it provides ultra-fast chart redraws and smooth on-screen performance.
With a built-in High CHIRP sonar for crisp depth and bottom contour imaging, plus RealBathy™ personal sonar mapping, the Element 7S helps you explore uncharted areas and map your favorite fishing grounds in real time.
The intuitive LightHouse Sport operating system makes navigation simple and easy to customize, with programmable quick keys, an oversized waypoint button, and live menus that let you see chart changes instantly.
-
E70531-00-102 includes LightHouse NC3 U.S. chart with fishing hot spots
-
E70531 ships without charts, ideal for custom setups
Key Features
-
7.0" optically bonded WVGA display (800×480), 1,500 nits
-
Quad-core processor for fast redraws and responsive navigation
-
Built-in High CHIRP single-channel sonar (CPT-S compatible)
-
RealBathy™ personal sonar mapping for custom bathymetric creation
-
Built-in GPS/GNSS (10 Hz) for accurate, fast positioning
-
NMEA2000 connectivity for AIS, autopilot, engine, and tank sensors
-
Wi-Fi 802.11 b/g/n for radar and data sharing
-
Rugged IPx6 / IPx7 construction; operating range −25 °C to +55 °C
-
Power: 12 V DC (8–16 V); max 15 W
-
Compatible with Raymarine LightHouse™, Navionics, and C-MAP charts
Comparison Table
| Feature | Element 7S (E70531) | Element 7S w/ LightHouse NC3 USA (E70531-00-102) |
|---|---|---|
| Display | 7.0" Optically bonded WVGA (800×480), 1,500 nits | Same |
| Touch/Control | Non-touch, keypad | Non-touch, keypad |
| Processor | Quad-core | Quad-core |
| Sonar Type | High CHIRP, single channel | High CHIRP, single channel |
| Sonar Connector | 9-pin CPT-S compatible | 9-pin CPT-S compatible |
| Sonar Depth | 274 m (900 ft) | 274 m (900 ft) |
| GPS | Built-in GPS/GLONASS 10 Hz | Built-in GPS/GLONASS 10 Hz |
| Networking | NMEA2000, Wi-Fi 802.11 b/g/n | NMEA2000, Wi-Fi 802.11 b/g/n |
| Radar Support | Quantum wireless (Wi-Fi) | Quantum wireless (Wi-Fi) |
| RealBathy™ Mapping | Yes | Yes |
| Waypoint / Routes / Tracks | 5,000 wpts / 200 wpt groups / 50 rts / 15 tracks | Same |
| External Memory | 1 × microSD slot | 1 × microSD slot |
| Power Consumption | 12 V DC (8–16 V); max 15 W | Same |
| Operating Temp | −25°C to +55°C | −25°C to +55°C |
| Waterproof Rating | IPx6 / IPx7 | IPx6 / IPx7 |
| Dimensions (mm) | 240 × 135 × 62 | 240 × 135 × 62 |
| Weight | 3.0 lbs | 3.0 lbs |
| Cartography | Optional (supports LightHouse NC2, Navionics, C-MAP) | Includes LightHouse NC3 U.S. chart with Fishing Hot Spots |
| Best For | Boat owners wanting flexibility to add their own charts | Users wanting a ready-to-navigate system with U.S. charts |
What’s in the Box
Element 7S (E70531)
-
Element 7S display
-
Surface mount gasket
-
Suncover
-
Trunnion knobs ×2
-
Trunnion bracket
-
Documentation pack
-
Surface mount stainless steel fixings ×4 (M4×40 screw, washer, locking nut)
-
Power / NMEA2000 cable (1.5 m power lead + 0.5 m NMEA2000 lead)
Element 7S w/ LightHouse NC3 USA (E70531-00-102)
-
Element 7S display
-
LightHouse NC3 U.S. Chart microSD with Fishing Hot Spots
-
Surface mount gasket
-
Suncover
-
Trunnion knobs ×2
-
Trunnion bracket
-
Documentation pack
-
Surface mount stainless steel fixings ×4 (M4×40 screw, washer, locking nut)
-
Power / NMEA2000 cable (1.5 m power lead + 0.5 m NMEA2000 lead)
