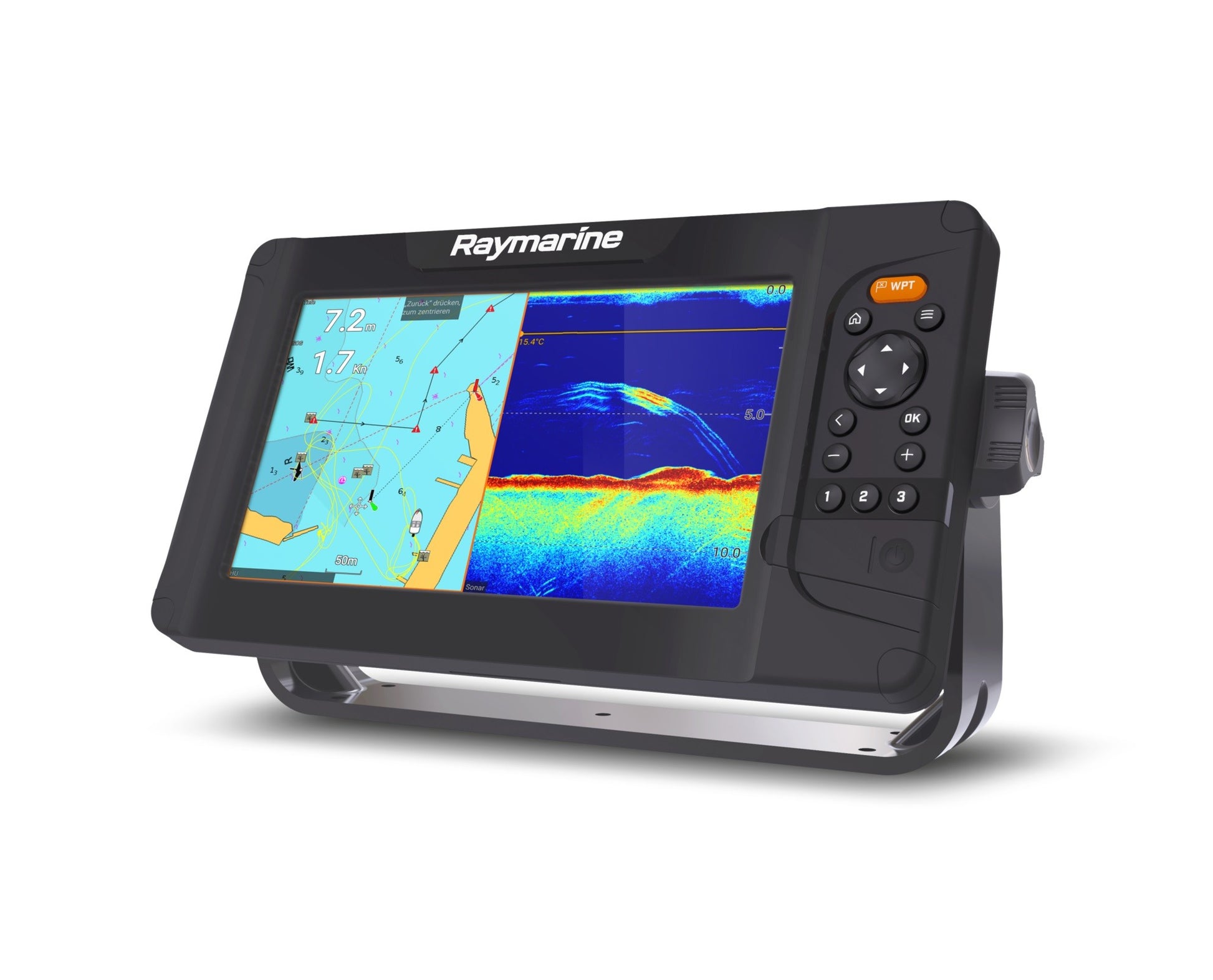

Raymarine Element 9S No Transducer Lighthouse North America Chart
Couldn't load pickup availability
Description
Description
Raymarine Element 9S 9.0" MFD
Models: E70533 | E70533-00-102
Product Description
The Raymarine Element 9S offers rugged, sunlight-viewable navigation and charting in a compact 9" display. Powered by a quad-core processor and a fast 10 Hz GPS/GNSS, it provides responsive chart redraws and smooth system performance.
Equipped with High CHIRP sonar, Element 9S allows depth and bottom contour imaging with precision, while RealBathy™ personal sonar mapping enables you to create detailed bathymetric maps in real-time.
The unit supports Raymarine LightHouse charts, Navionics, and C-MAP, and provides NMEA2000 connectivity for AIS, autopilot, sailing instruments, engines, tanks, and VHF. The user interface is simple and intuitive, with oversized waypoint keys, programmable quick keys, and live chart menus, making it ideal for small boats, day cruisers, and fishing vessels.
-
E70533-00-102 includes LightHouse NC3 USA chart with fishing hot spots
-
E70533 ships without a chart for custom setups
Key Features
-
9.0" optically bonded WVGA display (800×480), 1,500 nits
-
Quad-core processor for fast redraw and responsive performance
-
High CHIRP single-channel sonar with CPT-S transducer support
-
RealBathy™ personal sonar mapping
-
Fast 10 Hz GPS/GNSS sensor (GPS/GLONASS)
-
NMEA2000 connectivity for AIS, autopilot, engine, tanks, and VHF
-
Oversized waypoint key and three user-programmable quick keys
-
Rugged IPx6 / IPx7 enclosure, operating −25 °C to +55 °C
-
Power: 12 V DC (8–16 V); max 20 W
-
Supports Raymarine LightHouse NC, Navionics, C-MAP charting
Comparison Table
| Feature | Element 9S (E70533) No Chart |
Element 9S w/ LightHouse NC3 (E70533-00-102) |
|---|---|---|
| Display | 9.0" Optically bonded WVGA (800×480), 1,500 nits | Same |
| Touch/Control | Non-touch, keypad | Non-touch, keypad |
| Processor | Quad-core | Quad-core |
| Sonar Type | High CHIRP, single channel | High CHIRP, single channel |
| Sonar Connector | 9-pin, supports CPT-S transom/thru-hull | Same |
| Sonar Depth | 274 m (900 ft) | 274 m (900 ft) |
| GPS | Built-in GPS/GLONASS 10 Hz | Built-in GPS/GLONASS 10 Hz |
| Networking | NMEA2000, Wi-Fi 802.11 b/g/n | NMEA2000, Wi-Fi 802.11 b/g/n |
| Radar Support | Quantum wireless (Wi-Fi) | Quantum wireless (Wi-Fi) |
| RealBathy™ | Yes | Yes |
| Waypoint / Routes / Tracks | 5,000 wpts / 200 wpt groups / 50 rts / 15 tracks | Same |
| External Memory | microSD slot | microSD slot |
| Operating Temp | −25°C to +55°C | −25°C to +55°C |
| Waterproof Rating | IPx6 / IPx7 | IPx6 / IPx7 |
| Power | 12 V DC (8–16 V); max 20 W | 12 V DC (8–16 V); max 20 W |
| Cartography | Optional (LightHouse NC2, Navionics, C-MAP) | LightHouse NC3 USA w/ fishing hot spots |
| Best For | Small boats, custom chart setup | Small boats, ready-to-go with US charts and fishing hotspots |
What’s in the Box
Element 9S (E70533)
-
Element 9S display
-
Surface mount gasket
-
Suncover
-
Trunnion knobs ×2
-
Documentation pack
-
Surface mount stainless steel fixings ×4 (M4x40 machine screw, M4 flat washer, M4 locking nut)
-
Power / NMEA2000 cable (1.5 m power lead + 0.5 m NMEA2000 lead)
Element 9S w/ LightHouse NC3 (E70533-00-102)
-
Element 9S display
-
LightHouse NC3 USA chart microSD with fishing hotspots
-
Surface mount gasket
-
Suncover
-
Trunnion knobs ×2
-
Documentation pack
-
Surface mount stainless steel fixings ×4 (M4x40 machine screw, M4 flat washer, M4 locking nut)
-
Power / NMEA2000 cable (1.5 m power lead + 0.5 m NMEA2000 lead)
Have a question?
Notified by email when this product becomes available
$651.95
