Raymarine EV100 Power Pilot with 0.5L Pump.

Raymarine EV‑100 Power Pilot Series
Complete Autopilot Solutions for Small Hydraulic Powerboats

The Raymarine EV‑100 Power Pilot delivers precise, fuel‑efficient autopilot control for small to mid‑sized hydraulic steered power vessels. Ideal for single outboard boats, this compact solution integrates the 9‑axis EV‑1 Sensor Core, ACU‑100 control unit, and a .5 L hydraulic pump for seamless handling in changing conditions.

Using Raymarine Hydro‑Balance™ technology, the EV‑100 automatically compensates for hydraulic elasticity and prevents drive hunting, delivering silky‑smooth course tracking. The system is fully automatic — no manual setup or sea trial calibration is required — and adjusts continuously using the EV‑1’s aerospace‑inspired adaptive algorithms.

---

Model Numbers

- EV‑100 Power Pilot with p70Rs Control Head – Model: T70154
- EV‑100 Power Pilot without Control Head – Model: T70250

---

Key Features

- Ready‑to‑run — no complex installation or compass calibration required.
- EV‑1 Sensor Core: 9‑axis motion sensing adapts automatically to vessel dynamics.
- Hydro‑Balance™ technology: reduces steering oscillation and drive noise.
- Accurate course keeping: efficient autopilot steering for better fuel economy.
- Fully integrated .5 L Hydraulic Pump (12 V) for rams 50 – 110 cc (3.1 – 6.7 in³).
- Connects to Axiom chartplotters for direct track navigation control.
- SeaTalkng / NMEA2000 network compatible.
- Optional p70Rs rotary control head for dedicated autopilot operation.
- Compact form factor: ideal for outboard or small inboard installations.

---

Model Comparison

---

Technical Specifications

- Voltage: 12 V DC system only.
- Hydraulic Ram Capacity: 50–110 cc (3.1 – 6.7 in³).
- Network: SeaTalkng / NMEA 2000.
- Accuracy: ± 2° dynamic heading.
- Operating Temp: –20 °C to +55 °C (–4 °F to 131 °F).
- Mounting: bulkhead / below deck.
- Control Modes: Auto / Standby / Track / Power Steer.
- Connectivity: Axiom chartplotter interface for course and route following.

---

What’s in the Box

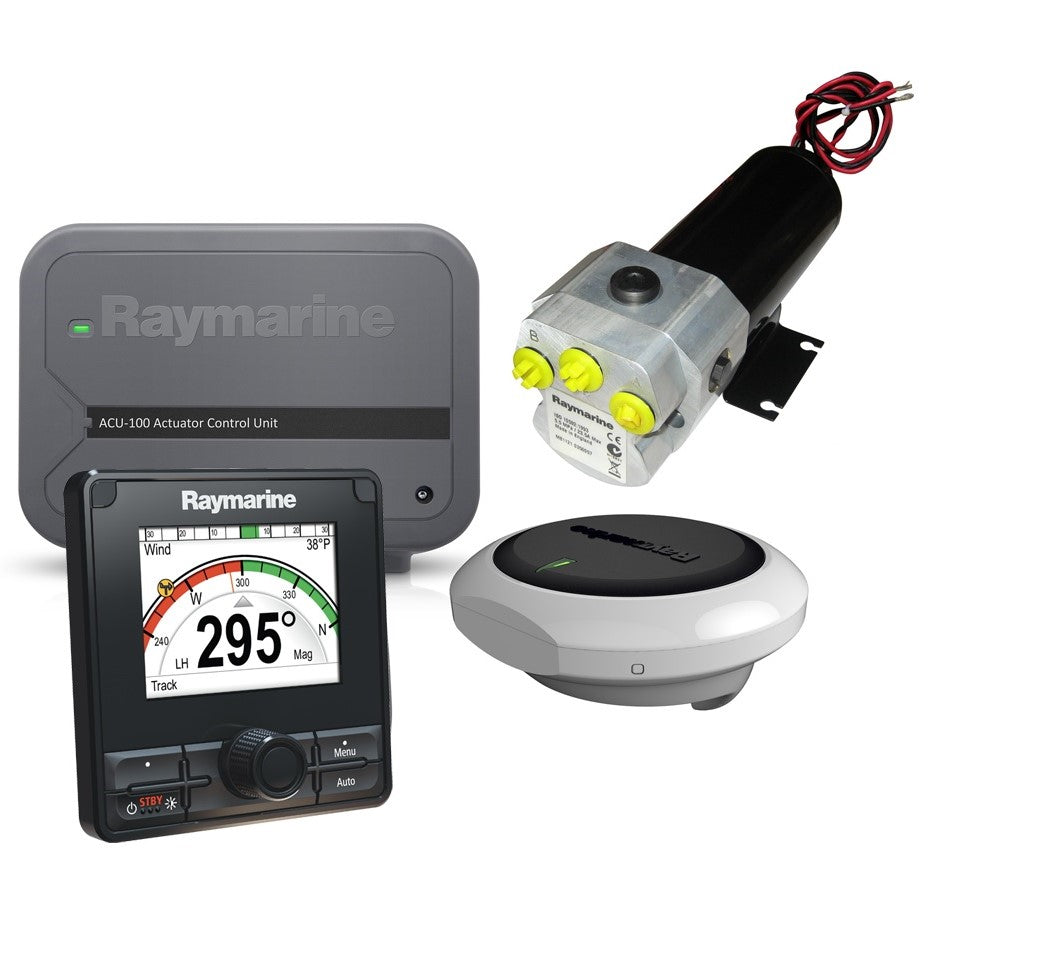

T70154 – EV‑100 Power Pilot with p70Rs:
- E70096 EV‑1 Sensor Core
- E70098 ACU‑100 Actuator Unit
- E12139 0.5 L Hydraulic Pump (12 V)
- R70160 Evolution Cabling Kit
- E70329 p70Rs Control Head

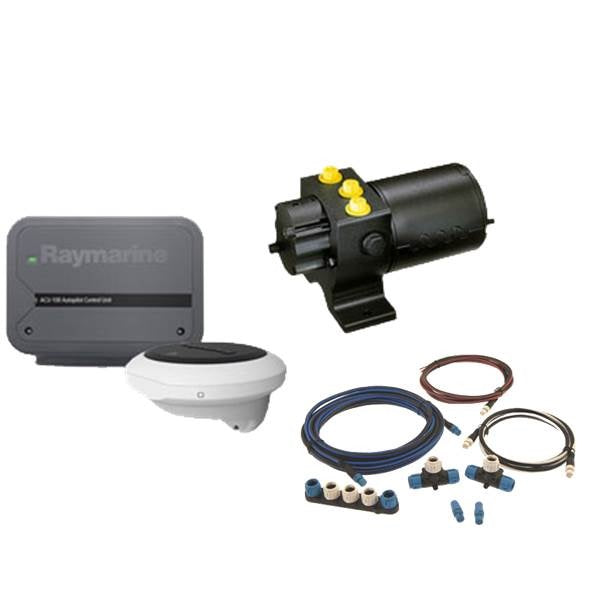

T70250 – EV‑100 Power Pilot without Control Head:
- E70096 EV‑1 Sensor Core
- E70098 ACU‑100 Actuator Unit
- E12139 0.5 L Hydraulic Pump (12 V)
- R70160 Evolution Cabling Kit
