Raymarine EV‑100 Tiller Pilot Series
Complete Autopilot Systems for Tiller‑Steered Sailboats

The Raymarine EV‑100 Tiller Pilot is the trusted autopilot solution for tiller‑steered sailboats up to 13,200 lb (6,000 kg) displacement. Ideal for solo sailors and coastal cruisers, this compact pilot combines the powerful EV‑1 Sensor Core, ACU‑100 control unit, and Q047 tiller drive unit for precise, responsive helm correction in all conditions.

Designed for cockpit installation and easy DIY mounting, the EV‑100 Tiller Pilot features Hydro‑Balance™ drive control and Evolution TrackIQ™ algorithms for tight track‑keeping, even under sail heel and gusty winds. No manual calibration is required — the system learns and adapts automatically to changing sea states and boat motion.

---

Model Numbers

- EV‑100 Tiller Pilot with p70s Control – Model: T70153
- EV‑100 Tiller Pilot without Control (Chartplotter Operation) – Model: T70249

---

Key Features

- Complete all‑in‑one tiller autopilot for sailboats up to 6,000 kg displacement.
- Cockpit‑mounted drive design — easy to install, detach, and store.
- 9‑axis EV‑1 Sensor Core with aerospace‑grade motion processing.
- Hydro‑Balance™ steering control eliminates drive hunting and ensures smooth course corrections.
- TrackIQ™ adaptive algorithms for precise track and tack performance.
- SeaTalkng / NMEA2000 network compatibility for integrated data and navigation.
- Dedicated p70s control head (option on T70153) or Axiom chartplotter integration (T70249).
- No compass swing or sea trial needed – plug in and sail.

---

Model Comparison

---

Technical Specifications

- Maximum Vessel Displacement: 13,200 lb (6,000 kg).
- Input Voltage: 12 V DC (10.8 – 16 V range).
- Control Modes: Auto, Standby, Track, Tack Assist.
- Heading Accuracy: ± 2° dynamic (steady course even in pitch and roll).
- Operating Temp: –20 °C to +55 °C (–4 °F to 131 °F).
- Water Ingress: IPX6‑rated drive and connectors.
- Connectivity: SeaTalkng / NMEA 2000 via Evolution network kit.
- Drive Mounting: Cockpit bulkhead socket (quick‑release for storage).

---

What’s in the Box

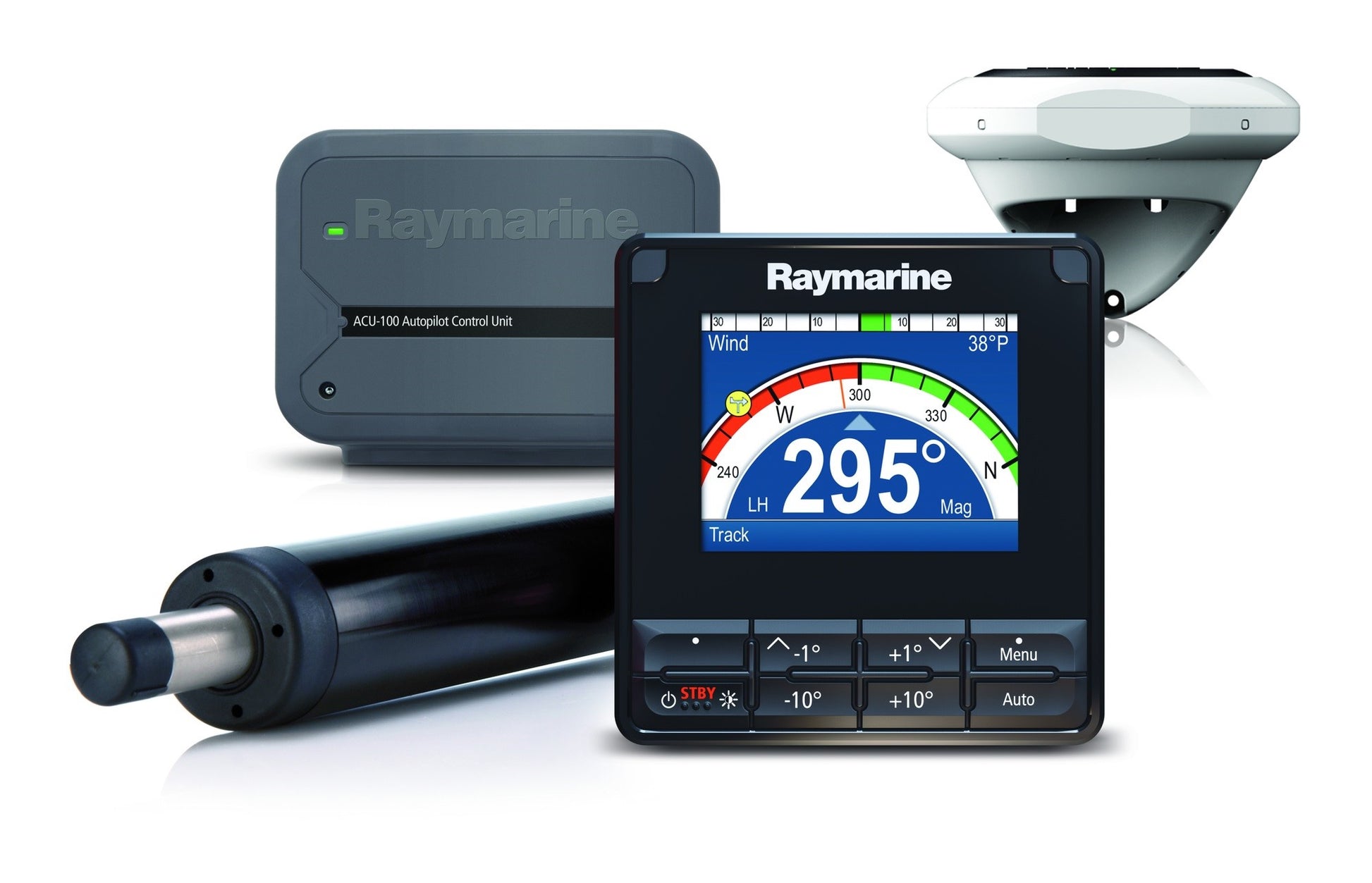

T70153 – EV‑100 Tiller Pilot with p70s Control:
- E70096 EV‑1 Sensor Core
- E70098 ACU‑100 Actuator Control Unit
- E70328 p70s Autopilot Control Head
- Q047 Tiller Drive Unit
- R70160 Evolution Cabling Kit
- D001 Tiller Pins (× 2)
- D002 Mounting Sockets (× 2)
- M81181 RayPilot Remote Plug & Socket Assembly

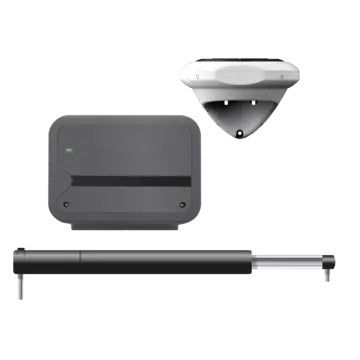

T70249 – EV‑100 Tiller Pilot without Control:
- E70096 EV‑1 Sensor Core
- E70098 ACU‑100 Actuator Control Unit
- Q047 Tiller Drive Unit
- R70160 Evolution Cabling Kit
- D001 Tiller Pins (× 2)
- D002 Mounting Sockets (× 2)
- M81181 RayPilot Remote Connector Kit
