Raymarine EV Autopilot.

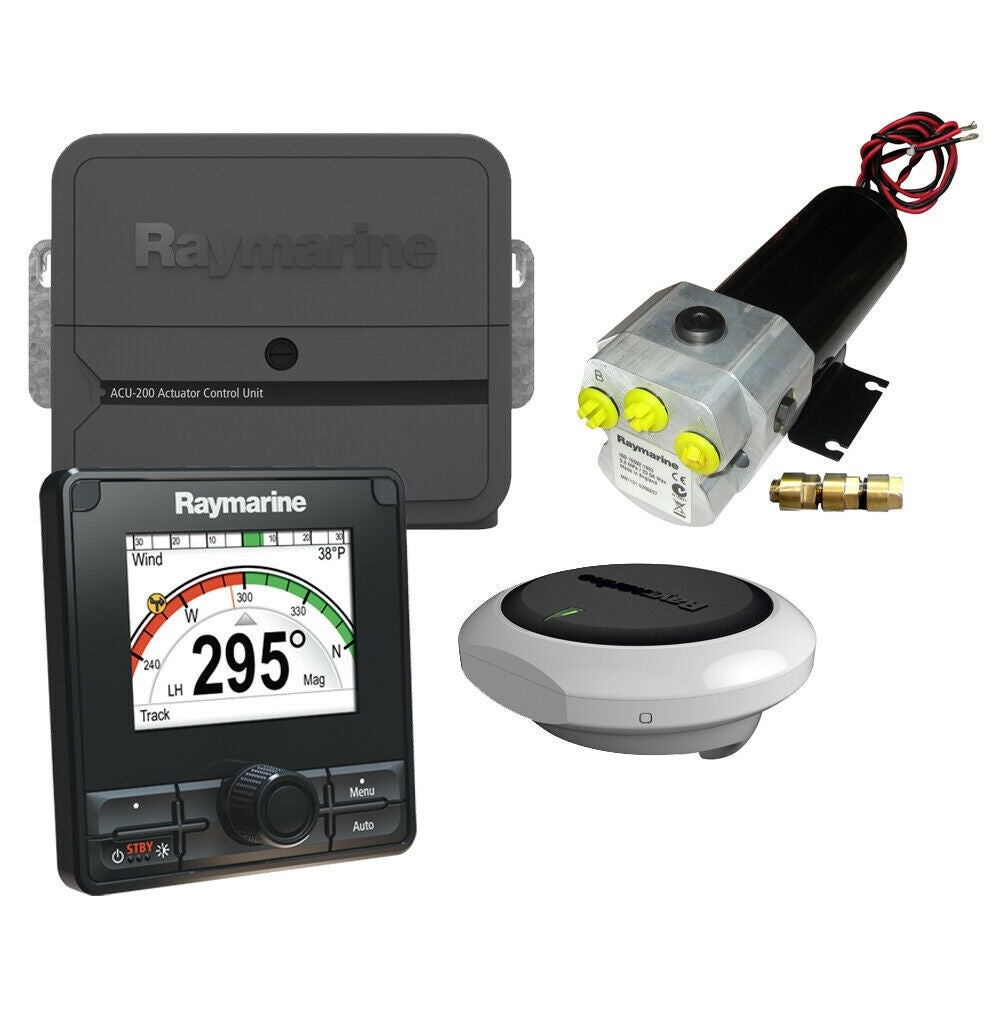

Raymarine EV200 Power Pilot & Raymarine EV300 Solenoid Autopilot
Model: T70157 (Type-1 Autopilot System Package) | Model: T70160 Solenoid Autopilot

The Raymarine EV200 Power Pilot is engineered for mid-sized power vessels with hydraulic steering using Type-1 hydraulic pumps (4.914 cubic inch or 80cc–230cc rams). This advanced Evolution Ai autopilot package includes the push-button and rotary P70RS control head, EV-1 9-axis sensor core, and ACU-200 actuator control unit with a reversing 12V hydraulic pump. It seamlessly integrates with SeaTalk, SeaTalkng, and NMEA 2000 networks, delivering precise heading data for advanced navigation features like MARPA and radar overlays.

Key Features:

• New LightHouse user interface with wide 160° viewing angles and anti-reflective coating for improved visibility

• Start-Up Wizard for fast, simple configuration

• Supported autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, Jog Steer

• Simple group dimming and illumination controls compatible with i70 Instruments and e7 multifunction displays

• EV Sensor Core provides precision monitoring of heading, pitch, roll, and yaw with solid-state sensor technology

• IPX6 and IPX7 waterproof rating

• Compatible with both S1/S1G and S2/S2G corepacks

• Includes P70RS control head, EV-1 sensor, ACU-200 actuator, and Type-1 hydraulic pump for hydraulic rams

---

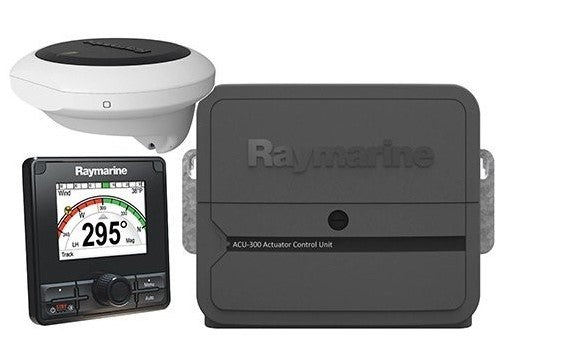

Raymarine EV300 Solenoid Autopilot
Model: T70160

Designed for vessels with solenoid-controlled hydraulic steering, the EV300 Solenoid autopilot combines Raymarine’s Evolution Ai algorithms with FLIR Systems’ aerospace technology, delivering highly accurate and reliable autopilot control with minimal setup—no calibration required.

Key Features:

• Evolution Ai for superior autopilot performance

• No calibration required for easy installation

• SeaTalkng network compatible with integrated auxiliary power (ACU-300)

• Includes P70RS autopilot control head, EV-1 Sensor Core, ACU-300 actuator control unit with M81105 rotary rudder reference

• Rugged design with drip-resistant ACU and IPX6 waterproof EV sensor core

• ACU power: 12/24V with operating range 10.8 – 31.2V DC

• EV Sensor Core powered by SeaTalkng, monitoring heading, pitch, roll, and yaw via 3-axis accelerometers, compass, and gyro sensors

---

Comparison Table

---

What’s in the Box

EV200 Power Pilot (T70157):

• EV-1 Sensor Core

• P70RS Autopilot Control Head

• ACU-200 Actuator Control Unit

• Type 1 Hydraulic Pump

• Evolution Cabling Kit

• EV Unit O-Ring Pack (set of 2)

• Wall Mounting Bracket

EV300 Solenoid Autopilot (T70160):

• EV-1 Sensor Core

• P70RS Autopilot Control Head

• ACU-300 Actuator Control Unit (includes M81105 Rotary Rudder Reference)

• Evolution Cabling Kit

• EV Unit O-Ring Pack (set of 2)

• Wall Mounting Bracket

---
