Raymarine EV Power Pilot Requires Drive Unit.

Raymarine EV Series Power Pilots
Models: T70162 (EV400 Power Pilot) | T70156 (EV200 Power Pilot)

The Raymarine EV Series Power Pilots bring advanced Evolution Ai autopilot control to large and mid‑size power vessels. Each system integrates intelligent steering algorithms, aerospace‑grade sensors, and simple plug‑and‑play installation for effortless command and exceptional course accuracy. With robust waterproof design and compatibility across Raymarine drive units and data networks, the EV Series ensures reliable performance in all conditions.

---

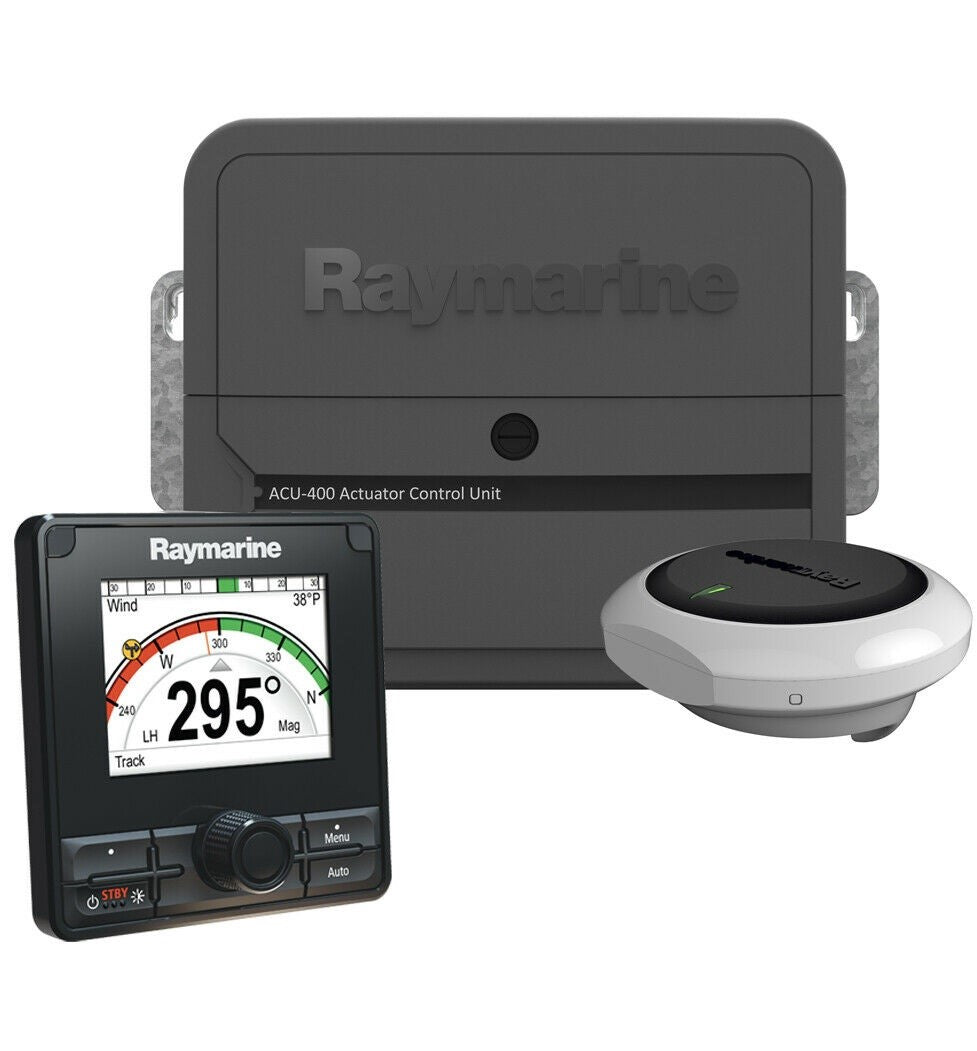

Raymarine EV400 Power Pilot

Model: T70162 – EV‑400 Autopilot System Package

The EV400 Power Pilot is an advanced autopilot solution for large power vessels using Type 2 and Type 3 drive systems. It includes the P70RS control head, EV‑1 sensor core, and ACU‑400 actuator control unit, working together to deliver precision steering and superior reliability. The new LightHouse user interface features a bright, anti‑reflective display and a rotary control knob with intuitive on‑screen menus.

Key Features:

• LightHouse interface with 160° wide viewing angles and anti‑reflective screen

• Fast setup with an intelligent Start‑Up Wizard

• Rotary control knob and push‑button operation for simple control

• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, Jog Steer

• EV Sensor Core – 9‑axis solid‑state monitoring of heading, pitch, roll, and yaw

• Advanced MARPA targeting, radar overlay & heading data integration

• IPX6 & IPX7 waterproof, ruggedized enclosure

• SeaTalk / SeaTalkng / NMEA 2000 / SeaTalk1 compatible

• ACU‑400 provides reliable drive power & SeaTalkng bus power

• Group illumination control with Raymarine i70 Instruments and MFDs

• Ideal for large power vessels using Type 2 and Type 3 hydraulic or rotary drives

---

Raymarine EV200 Power Pilot

Model: T70156 – Requires Drive Unit

The EV200 Power Pilot delivers the same Evolution Ai technology in a streamlined package for mid‑sized power boats. Its plug‑and‑play architecture eliminates compass calibration and lengthy setup steps. With automagic tuning and a versatile EV sensor core that mounts above or below deck in any orientation, the EV200 offers exceptional accuracy and fuel efficiency for extended voyages.

Key Features:
- Automagic™ operation — no manual calibration or compass setup required
- Simple installation with plug‑and‑play connections and no centerline restriction
- 9‑axis aerospace‑grade EV sensor core for full motion monitoring
- Evolution Ai algorithms for adaptive autopilot precision
- Improved fuel efficiency through accurate, energy‑optimized steering
- Supports mechanical and hydraulic drive options (requires separate drive unit)
- Durable construction with below‑deck or above‑deck flexibility

---

Model Comparison

---

What’s in the Box

EV400 Power Pilot (T70162)
- P70RS Autopilot Control Head
- EV‑1 Sensor Core
- ACU‑400 Actuator Control Unit

EV200 Power Pilot (T70156)
- EV Sensor Core (9‑Axis)
- Quick‑Install Hardware Set and Cables (Drive Unit Sold Separately)
