Raymarine EV Sail Pilot Requires Drive Unit.

Raymarine EV Series Sail Pilots
Models: T70161 (EV400 Sail Pilot) | T70155 (EV200 Sail Pilot)

The Raymarine EV Series Sail Pilots deliver intelligent, precise autopilot control for sailboats of all sizes. Built upon Raymarine’s Evolution Ai technology, these systems integrate solid‑state 9‑axis motion sensing, adaptive steering algorithms, and intuitive user interfaces for effortless command and exceptional reliability. With rugged waterproof construction and flexible installation options, the EV Sail line ensures optimized steering performance for every voyage.

---

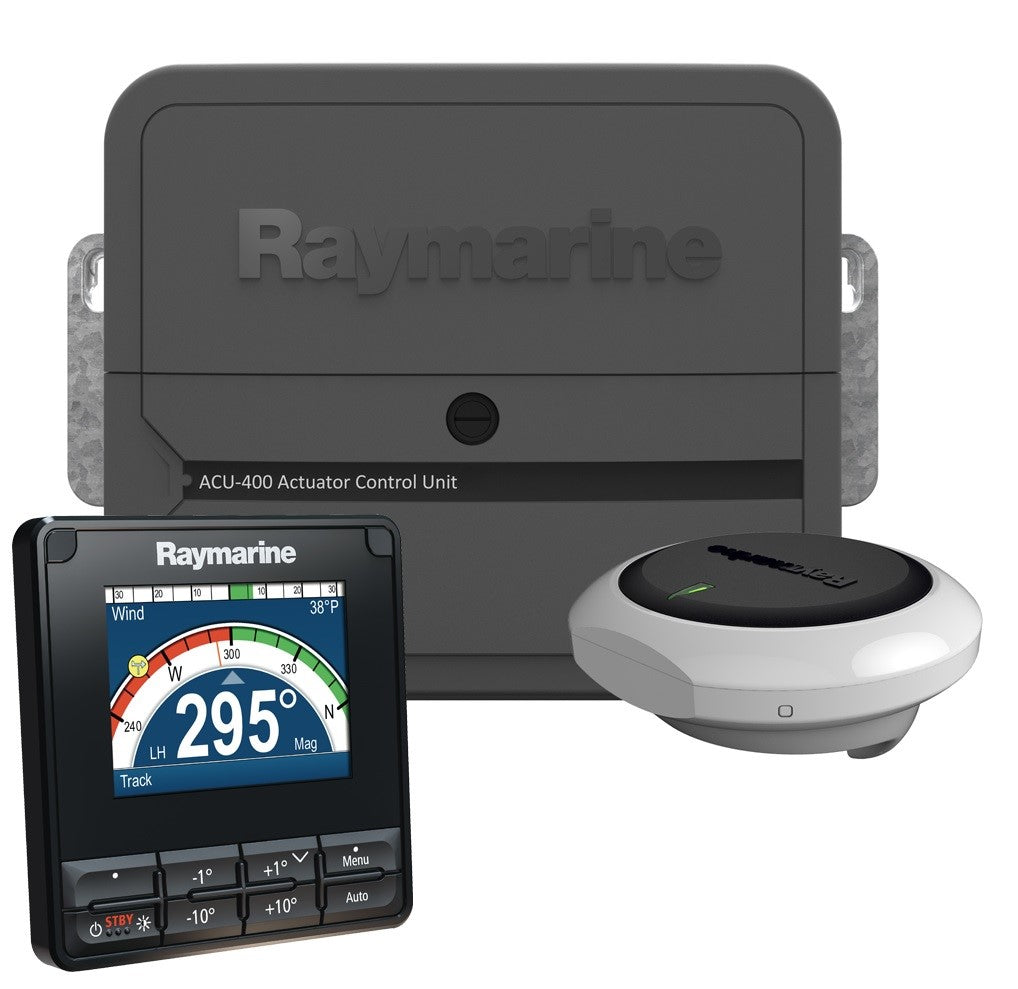

Raymarine EV400 Sail Pilot

Model: T70161 – EV‑400 Autopilot System Package
Drive Unit: Required (Type 2 / Type 3 Hydraulic or Rotary Drives)

Designed for large sailing vessels, the EV400 Sail Pilot package includes the P70S autopilot control head, EV‑1 sensor core and ACU‑400 actuator control unit. The system delivers fast, precise response and superb stability in all conditions. The P70S features the advanced LightHouse interface with a wide 160° viewing angle display and anti‑reflective coating for clarity even in bright sunlight.

Key Features:

• LightHouse interface with wide‑angle, anti‑reflective display optimized for sailing

• Intelligent Start‑Up Wizard for quick and accurate calibration

• Supported autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, Jog Steer

• EV Sensor Core (9‑axis solid‑state) monitors heading, pitch, roll, yaw for high‑precision motion control

• Rapid and reliable heading data for MARPA, radar overlay, and chartplotter features

• IPX6 & IPX7 waterproof housing — for above or below deck installation

• SeaTalk / SeaTalkng / NMEA 2000 / SeaTalk1 network compatibility

• Group illumination with other Raymarine displays (i70, MFDs)

• Designed for large sailboats with Type 2 & Type 3 drive systems

---

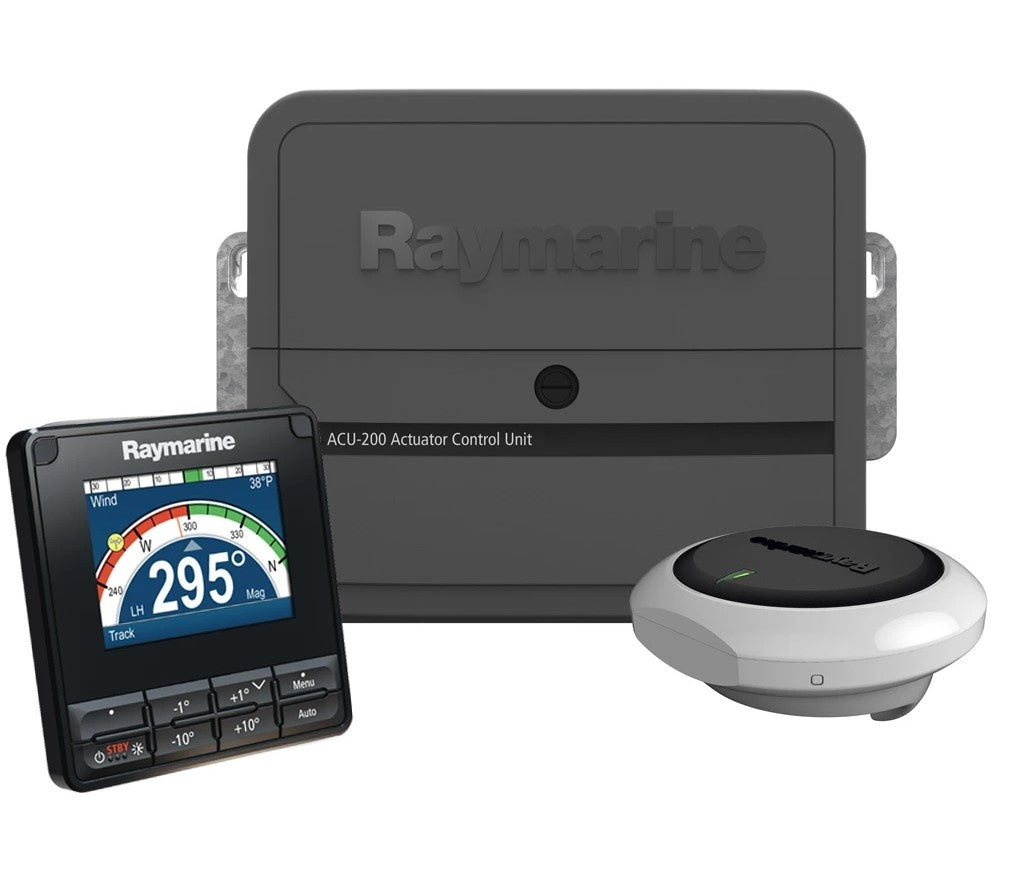

Raymarine EV200 Sail Pilot

Model: T70155 – Requires Drive Unit

The Raymarine EV200 Sail Pilot delivers Evolution Ai performance for medium‑sized sailboats. It features the same intuitive LightHouse interface and adaptive autopilot intelligence, ensuring precise, fuel‑efficient navigation. With low power consumption and flexible control options (P70S for sail or P70RS for power), it fits seamlessly into modern vessel networks.

Key Features:
- New LightHouse interface with enhanced day/night visibility
- Wide 160° viewing angles and anti‑reflective display technology
- Fast Start‑Up Wizard for quick configuration
- Supported autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, Jog Steer
- Ultra‑low power consumption (132 mA / 1.6 W) — 27% less than previous ST70 models
- Compatible with SeaTalkng, NMEA 2000 and SeaTalk1 networks (no bridging required)
- Control options: P70S (push‑button for sail) / P70RS (rotary for power)
- Multiple data format displays and group dimming support
- Ideal for medium sailing vessels requiring versatile installation

---

Model Comparison

---

What’s in the Box

EV400 Sail Pilot (T70161):
- P70S Autopilot Control Head
- EV‑1 Sensor Core
- ACU‑400 Actuator Control Unit

EV200 Sail Pilot (T70155):
- EV Sensor Core (9‑axis)
- P70S Autopilot Control Head (Varies by configuration)
- Hardware Kit & Network Cables (Drive Unit Required)
