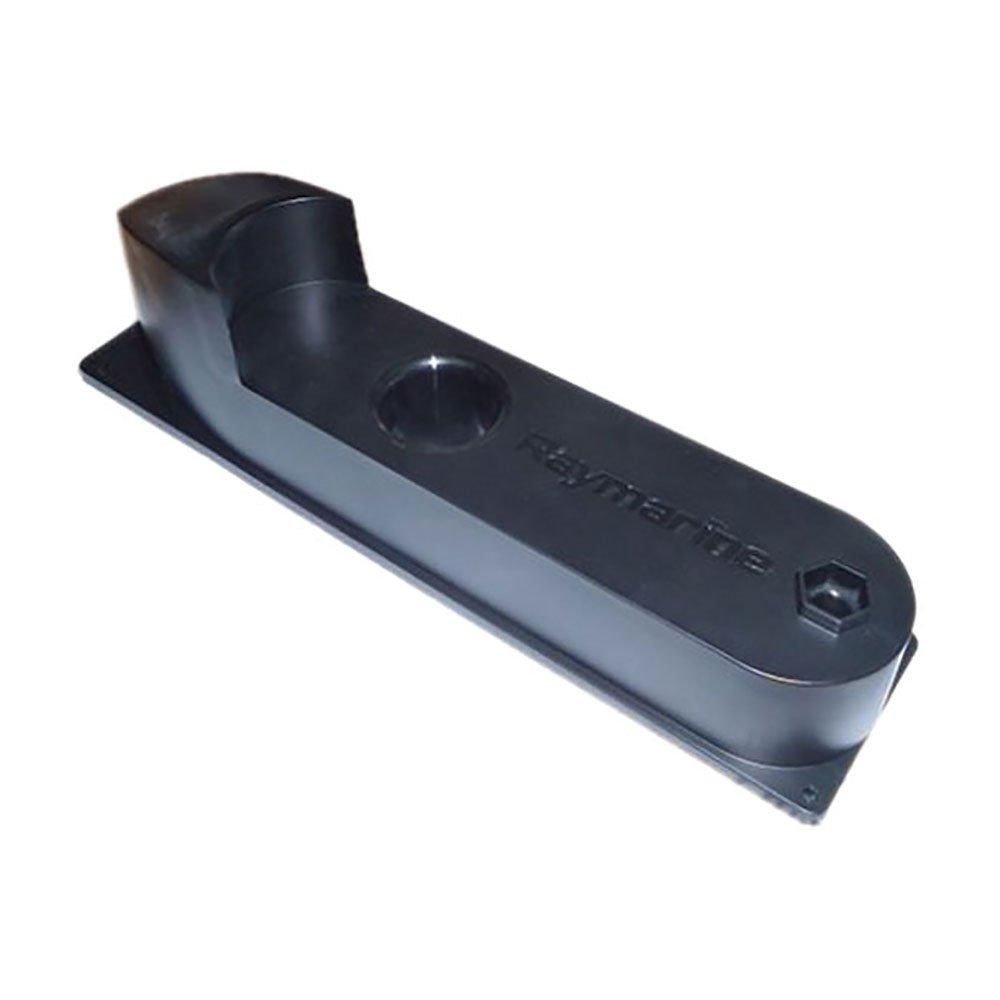

Raymarine Fairing Block For HV-300TH Transducer

Product Description

The Raymarine Fairing Block for HV-300TH Transducer optimizes through-hull installations by matching hull deadrise angles from 0° to 25°, ensuring proper transducer alignment.

Product Overview

This fairing block enhances HyperVision sonar performance on marine vessels by streamlining water flow over the HV-300TH transducer, reducing turbulence for clearer DownVision, SideVision, and CHIRP imaging during navigation and fishing.

Key Specifications

• Adjustable for hull deadrise 0°-25° via on-site cutting

• Compatible with single HV-300TH or split-pair HV-300THP transducers

• Durable plastic construction for marine hull mounting

• Dimensions: Length 267 mm, Height 170 mm, Width 64 mm

Technical Specifications

• Requires hull template cutting using provided guides and tools (file, drill bits)

• Supports port/starboard symmetric installations 300 mm below waterline

• Prevents keel obstruction; Uses marine sealant for waterproof seal

• Often sold separately from transducer kits

What's in the Box

• Pre-formed fairing block material

• Cutting template and installation instructions

• No tools or sealant included
