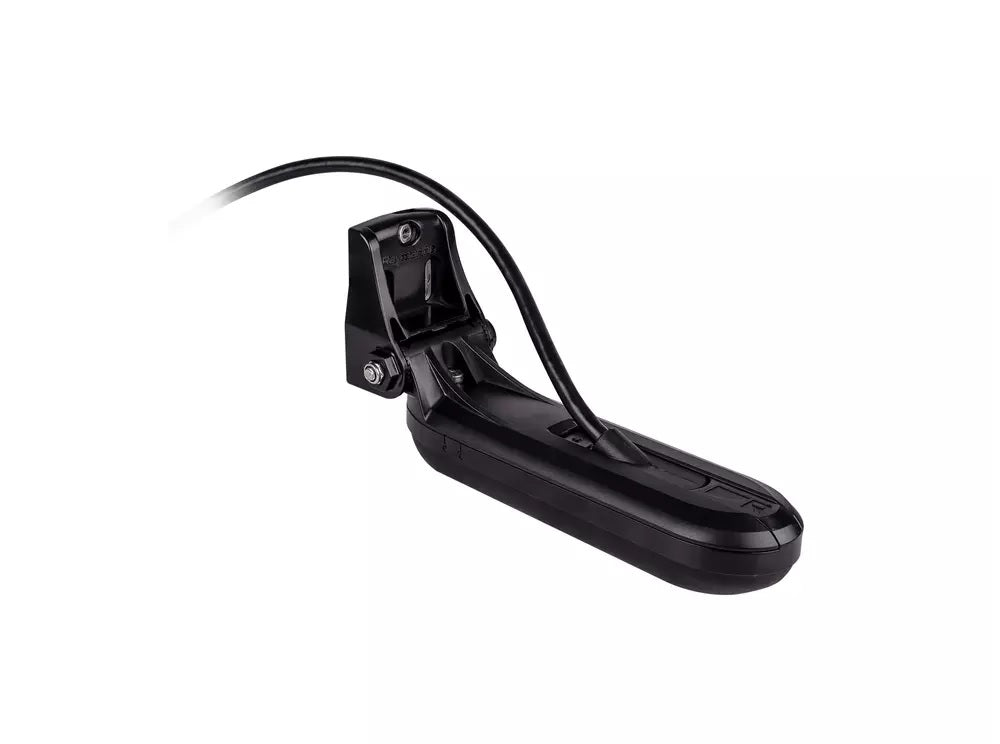

• Raymarine HV-100.02 HyperVisio Transom Mount Transducer
1 1
Vendor: Raymarine
Sku: RAYE70643

Raymarine HV-100.02 HyperVisio Transom Mount Transducer

$290.95
$290.95
Sold out
Shipping calculated at checkout.
22 in stock

Description

Caret Down

Raymarine HV-100.02 HyperVision Transom Mount Transducer

Model: E70643

Model: E70643
  • Transom Mount
  • Deadrise Angles: 0 - 90°

The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.

1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.

Specifications
Material Plastic
Max Depth 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900
Frequency 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP
Beam Width 3D: 180° / Down: 60° / Conical: 25°
Records Depth / Temperature
Hull Material Fiberglass / Metal
Cable Length 19 Ft. / 6 M.
Dimensions Length: 224.99 mm (8.86 in), Height: 112.69 mm (4.44 in), Width: 76.00 mm (2.99 in)

What's in the Box:
  • E70643 HyperVision 3D transducer with 6 m (19.69 ft) fitted cable
  • Transom bracket
  • Bracket fixing screws (4.2x19 mm A4 stainless steel) x3
  • M5x10 hex bolt (A4 stainless steel)
  • M5 washer (A4 stainless steel)
  • Hanger bracket
  • Escutcheon plate (used when routing cable through transom or a bulkhead)
  • Adjustment slot washers x2
  • Escutcheon plate fixings (#8x13 SUS316) x4
  • Cable clips x3
  • M6x70 hex bolt (A4 stainless steel)
  • M6 washer (A4 stainless steel)
  • M6 locking nut
  • Documentation
View full details
