Raymarine HV-300THP HyperVisio Thru-Hull Transducers.

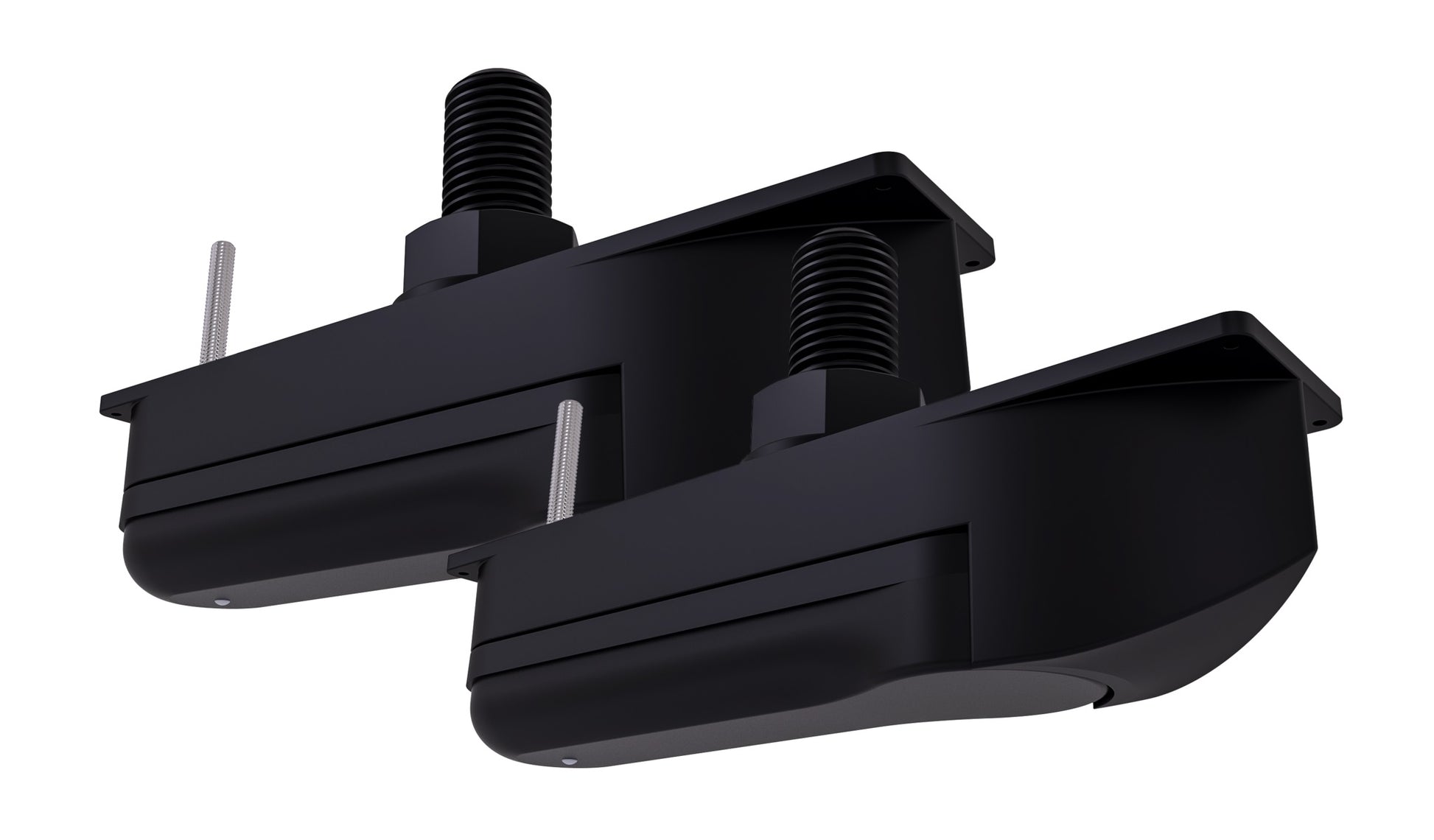

Raymarine HV-300THP HyperVision Thru-Hull Transducer Pair

Model: T70448

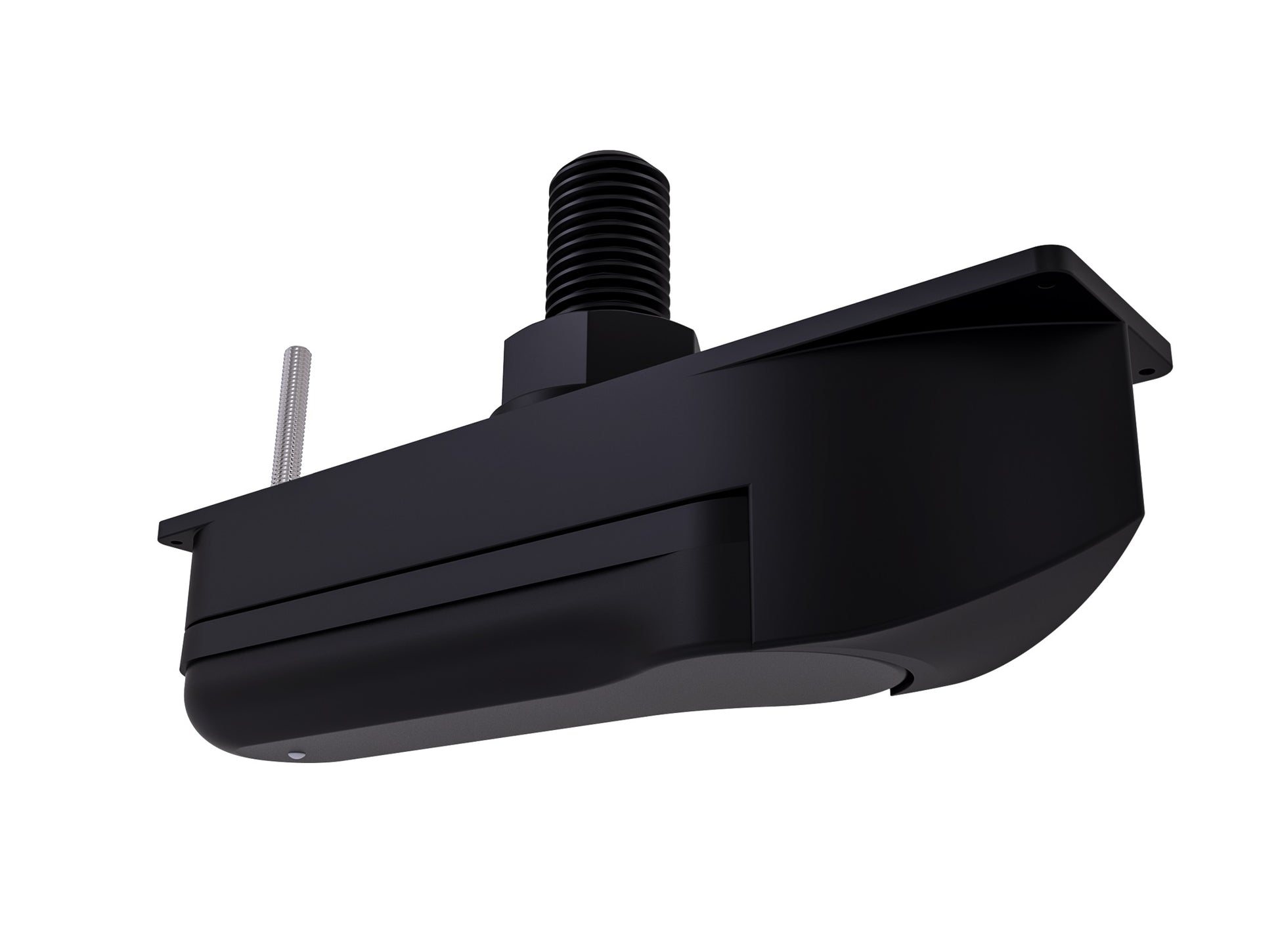

Raymarine HV-300TH HyperVision Thru-Hull Transducer

Model: A80604

 Key Features

The Raymarine HV-300THP HyperVision Thru-Hull Transducer Pair and the HV-300TH HyperVision Thru-Hull Transducer provide advanced HyperVision™ 3D sonar technology with multiple frequencies within a single transducer housing. These transducers deliver simultaneous RealVision 3D, DownVision™, SideVision™, and Conical High Frequency CHIRP sonar, suitable for shallow to medium depths.

Crafted from durable plastic and designed for fiberglass and metal hulls (not recommended for wooden hulls), they feature a low-profile 0° tilted element design. The included fairing block can be trimmed to match hull dead rise angles up to 25°, reducing drag and cavitation for more efficient performance.

The HV-300 series transducers incorporate a built-in Attitude and Heading Reference System (AHRS) to stabilize sonar images even in turbulent conditions, delivering crystal-clear images for structure tracking, fish detection, and bottom mapping.

Supported sonar frequencies include:

• 1.2 MHz High-Frequency HyperVision for ultra-clear images up to 40 m (125 ft)

• 350 kHz standard frequency for medium-range imaging up to 85 m (275 ft)

• 200 kHz traditional CHIRP sonar for long-range fish finding and bottom mapping up to 274 m (900 ft)

---

Specifications

---

What’s in the Box

HV-300THP (T70448):

• Port Transducer Array with 2 m cable

• Starboard Transducer Array with 2 m cable

• RealVision 3D Y-Cable

• 8 m Extension Cable

• Anti-rotation bolt kit

• Installation instructions

HV-300TH (A80604):

• Single Plastic Through-Hull Transducer with 6 m cable

• Fairing block

• Anti-rotation bolt kit

• Installation instructions
