Raymarine i50 Display Series.

$524.95

~~$499.99~~ $524.95

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Model: i50 Depth Display i50 Speed Display i50 Depth Display i50 Tridata Display

Description

Raymarine i50 Instrument Series

The Raymarine i50 series offers compact, user-friendly, and highly visible instruments dedicated to speed, depth, and tridata (combined data) display for both power and sailing vessels. Designed as a perfect complement to the latest Raymarine multifunction systems, the i50 instruments feature large digits, clear backlighting, and simple push-button controls for day and night operation. Their modest footprint matches legacy ST60+ instrumentation, simplifying upgrades.

Models:

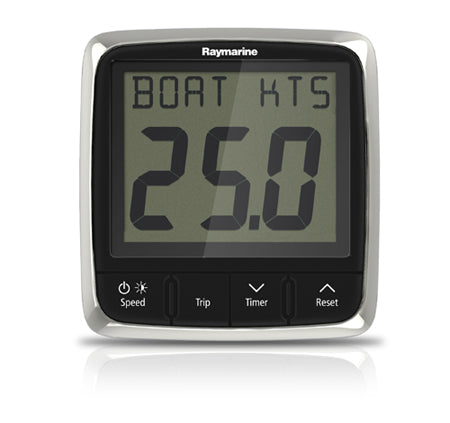

E70058 – i50 Speed Display

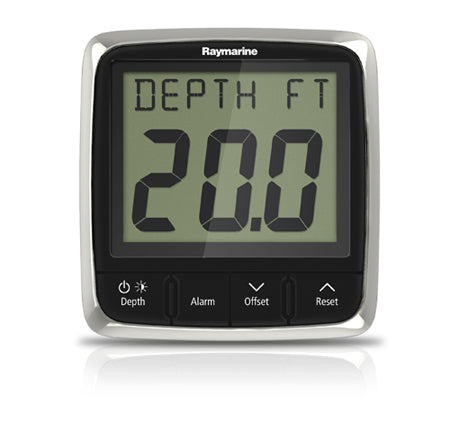

E70059 – i50 Depth Display

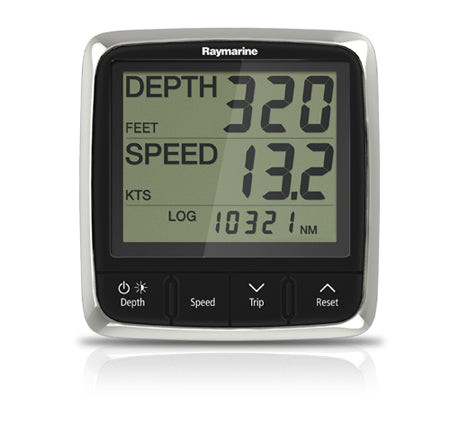

E70060 – i50 Tridata Display (Speed, Depth, and Temperature combined)

Key Features

Large, high-contrast LCD with red backlighting for excellent visibility
i50 Tridata combines speed, depth, log, and temperature on an easy-to-read 3-line display
Simple push-button operation with local and group dimming control
Fully compatible with Raymarine SeaTalk and SeaTalkng/NMEA 2000 networks
Can be installed as Master display (own transducer) or Repeater (network data)
Rugged IPX6 waterproof design suitable for marine environments
Footprint identical to older ST60+ units: 110 mm x 115 mm for easy retrofit

Specifications

Specification	E70058 (Speed)	E70059 (Depth)	E70060 (Tridata)
Display	LCD with red backlight	LCD with red backlight	3-line LCD with red backlight
Functions	Speed, Log, Trip Log	Depth, Log, Trip Log	Speed, Depth, Temperature, Log, Trip Log
Power Voltage	10-16 V DC	10-16 V DC	10-16 V DC
Power Consumption	<1 W (display only); 2.4 W max with transducer	<1 W (display only); 2.4 W max with transducer	<1 W (display only); 2.4 W max with transducer
Current Draw	45-65 mA (display only), 200 mA max with transducer	45-65 mA (display only), 200 mA max with transducer	45-65 mA (display only), 200 mA max with transducer
Connections	2 x SeaTalk and transducers (SeaTalkng, NMEA 2000 compatible)	2 x SeaTalk and transducers	2 x SeaTalk and transducers
Operating Temp	-20°C to +55°C	-20°C to +55°C	-20°C to +55°C
Storage Temp	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C
Humidity	Up to 93%	Up to 93%	Up to 93%
Waterproof Rating	IPX6	IPX6	IPX6
Dimensions	110mm x 115mm	110mm x 115mm	110mm x 115mm

Design and Use

The i50 series instruments are specifically designed for reliable, clear presentation of critical data with intuitive controls. The Tridata model (E70060) combines all vital information—speed, depth, and temperature—in a single easy-to-read display space, saving helm real estate. They seamlessly network with Raymarine autopilots and other navigation gear.
