Raymarine i50 System With ST900/P120 & P319 Retractable Thru-Hulls.
Couldn't load pickup availability
Description
Description
Raymarine i50 Depth, Speed & Tridata Instrument Displays
Compact SeaTalkNG / NMEA 2000® Marine Instruments for Precision Performance
The Raymarine i50 instrument range delivers crisp, accurate depth and speed readouts in compact, network‑ready displays designed for sailors and power boaters alike. Each unit features a high‑contrast LCD display with oversized digits and red backlighting for easy day or night use. Built for simple installation and low power draw, the i50 series connects seamlessly with Raymarine’s autopilots and networked navigation systems via SeaTalkNG or legacy SeaTalk.
Model Numbers
- i50 Tridata with ST900/P120 & P319 Transducers – Model: T70582
- i50 Speed Pack with ST900/P120 Thru‑Hull – Model: T70583
Key Features
- Three‑line readouts show depth, speed, and log/temperature data simultaneously.
- Red LED backlighting for superior nighttime visibility.
- SeaTalkNG / NMEA 2000® / SeaTalk compatible.
- Built‑in interfaces for depth and speed/temperature transducers.
- Compact design for helm panels with surface or trunnion mount options.
- Low power consumption (< 2.4 W) suitable for small vessels and network expansions.
- Local and group dimming control across Raymarine instrument networks.
Model Comparison
| Model | i50 Tridata (T70582) | i50 Speed Pack (T70583) |
|---|---|---|
| Primary Data | Depth, Speed, Log, Temp | Speed, Trip, Log, Temp |
| Display | 3‑line LCD with large digits | Single data mode / oversized digits |
| Backlight | Red LED | Red LED |
| Transducer Included | ST900/P120 Speed/Temp + P319 Depth | ST900/P120 Speed/Temp |
| Networking | SeaTalkNG / NMEA 2000 / SeaTalk | SeaTalkNG / NMEA 2000 / SeaTalk |
| Mount Type | Surface / optional trunnion | Surface / optional trunnion |
| Power Use | < 1 W (display) / 2.4 W (max with XDCR) | < 1 W (display) / 2.4 W (max with XDCR) |
| Water Rating | IPX6 | IPX6 |
| Voltage Range | 10 – 16 V DC | 10 – 16 V DC |
| Weight | Approx. 0.45 kg | Approx. 0.45 kg |
Product Highlights

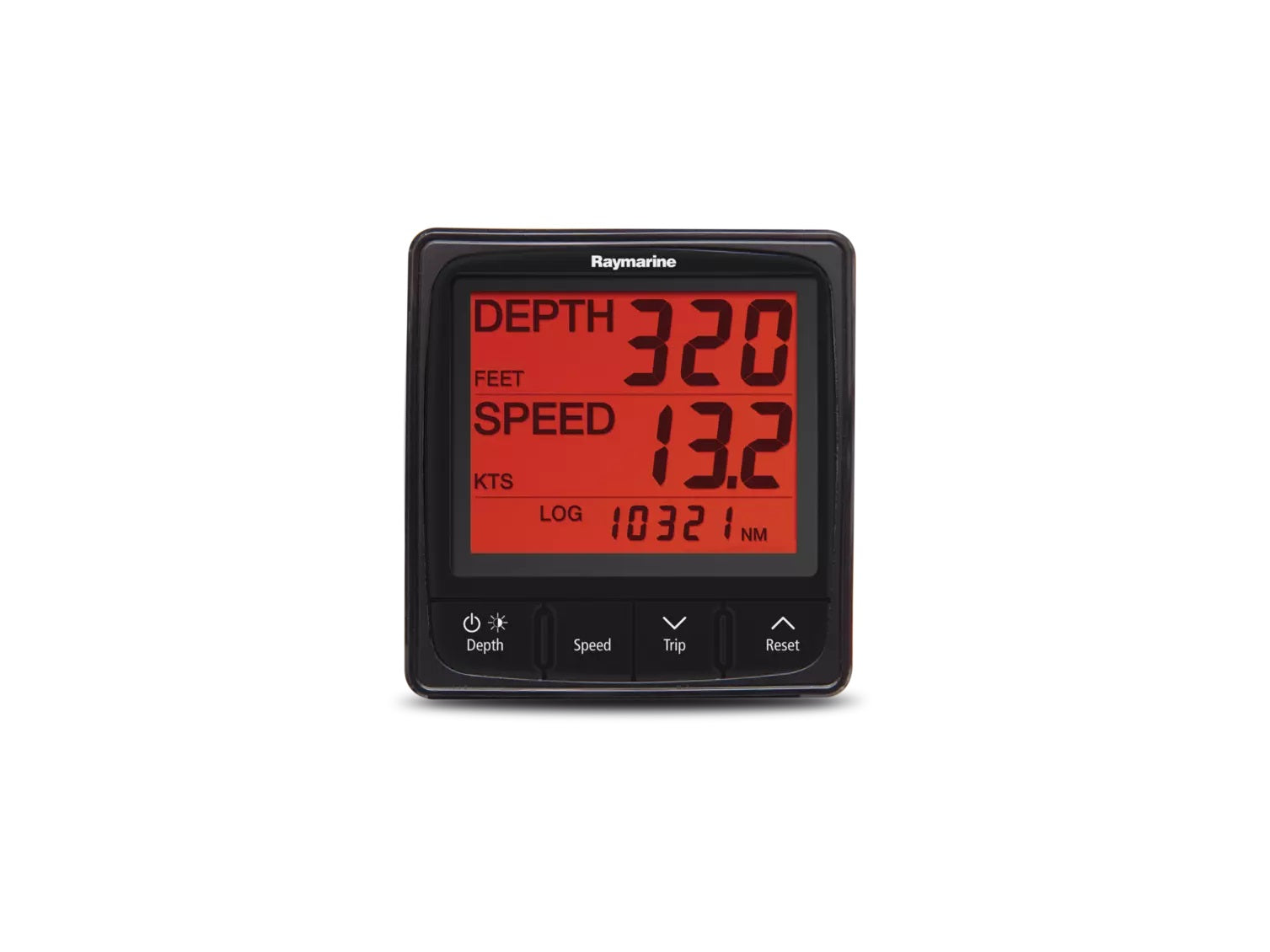

i50 Tridata (T70582)
- Displays depth, speed, and trip info on a three‑line LCD for instant data awareness.
- Integrates easily with autopilots and MFDs for expanded navigation visibility.
- Includes both depth (P319) and speed/temperature (ST900/P120) thru‑hull transducers.

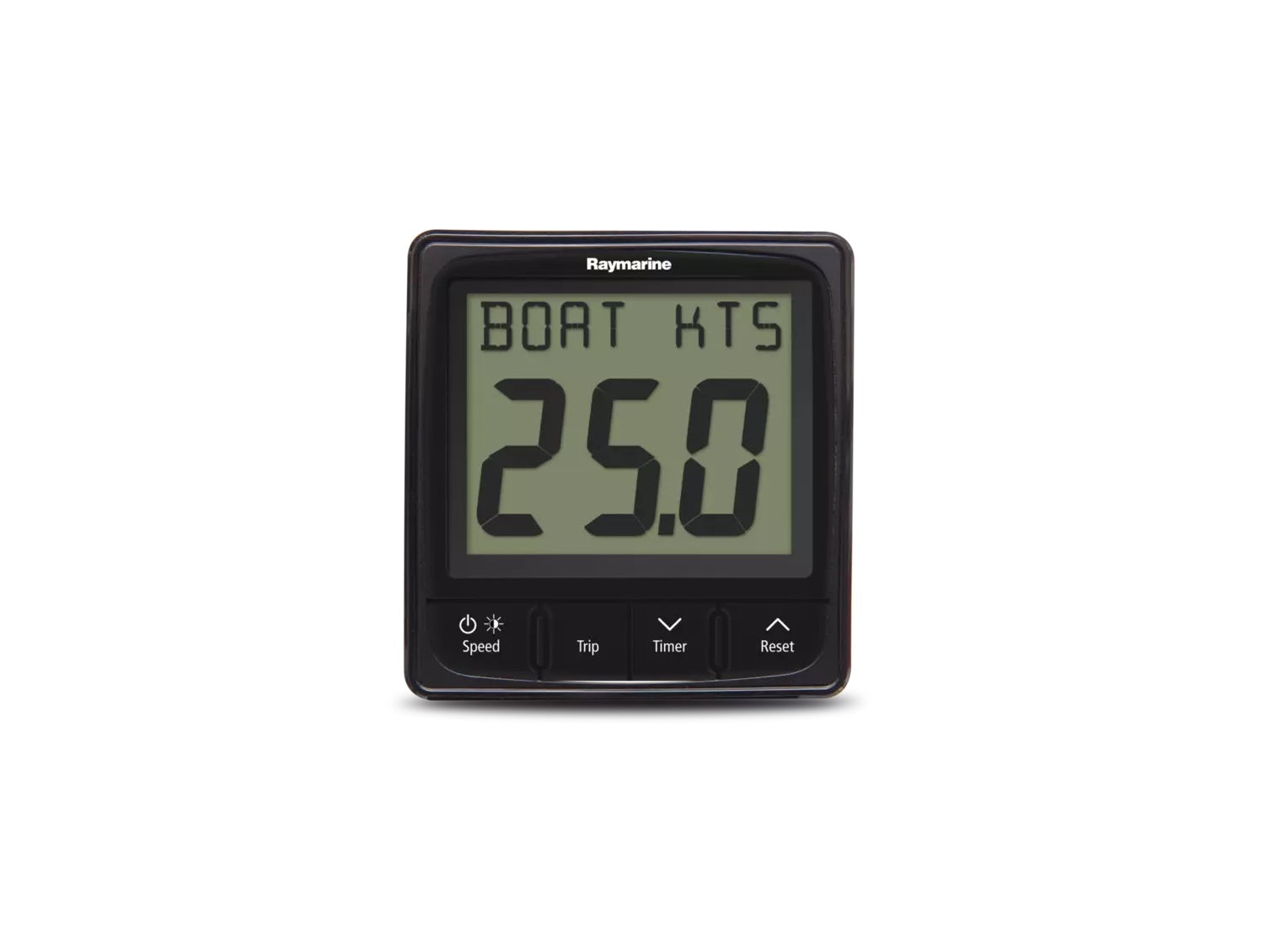

i50 Speed Pack (T70583)
- Dedicated speed instrument with trip and temperature readouts.
- Ideal for smaller craft needing a simple, accurate water‑speed solution.
- Includes ST900/P120 retractable thru‑hull speed/temperature transducer.
What’s in the Box
i50 Tridata (T70582):
- i50 Instrument Display
- Suncover and matching bezels (for i70s/p70s/eS Series designs)
- Gasket and mounting hardware
- 400 mm SeaTalkNG spur cable
- SeaTalkNG blanking plug
- ST900/P120 Speed/Temp Thru‑Hull Transducer
- P319 Depth Thru‑Hull Transducer
- Documentation
i50 Speed Pack (T70583):
- i50 Instrument Display
- Suncover and bezels (for SeaTalkNG series compatibility)
- 400 mm SeaTalkNG spur cable
- SeaTalkNG blanking plug
- Mounting hardware
- ST900/P120 Speed/Temp Thru‑Hull Transducer
- Documentation
