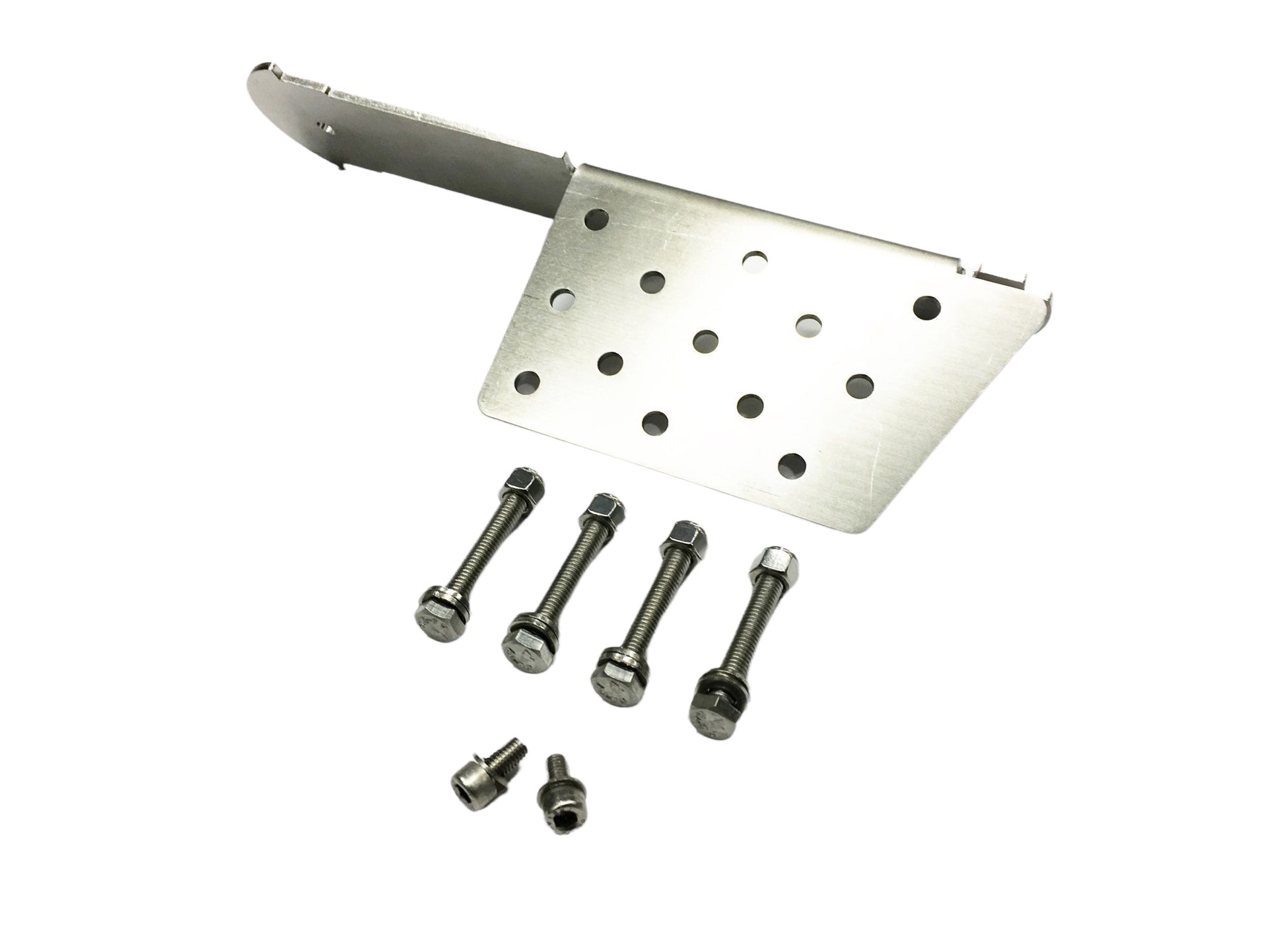

Raymarine Jack Plate Mount For RV-100 Transducer

Product Description

Raymarine Jack Plate Mount for RV-100 Transducer provides secure mounting for RealVision 3D transom transducers on jack plates.

Product Overview

Bass boats, flats boats, and skiffs use this stainless steel bracket to mount RV-100 transducers on hydraulic jack plates. It positions the transducer optimally for 3D sonar imaging while avoiding prop wash and cavitation during high-speed operation.

Key Specifications

• Stainless steel construction for corrosion resistance.

• Bolts directly to standard jack plate mounting patterns.

• Adjustable positioning for optimal transducer angle.

• Compatible with RV-100 RealVision 3D transom mount transducer.

Technical Specifications

• Designed for outboard motor jack plate installations.

• Includes spacer kit (A80482) option for additional motor clearance.

• Maintains parallel transducer alignment with water surface.

• Supports full RV-100 CHIRP DownVision and 3D sonar performance.

What's in the Box

• A80480 stainless steel jack plate mounting bracket.

• Bolts, washers, Nylock nuts, and installation instructions.

• Optional spacer kit sold separately.
