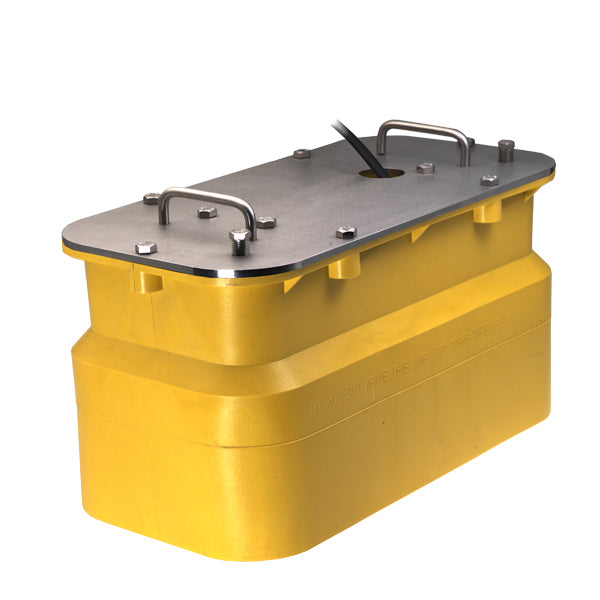

Raymarine M265LM Transducer In-Hull CHIRP

Product Description

Raymarine M265LM Transducer delivers dual CHIRP in-hull sonar for low and medium frequency depth detection in fiberglass boats.

Product Overview

Trailered sailboats and powerboats install this transducer inside solid fiberglass hulls (0-30° deadrise) to avoid external mounting while achieving excellent shallow-to-mid water resolution. It eliminates hull drilling for convenient marine fishfinding and navigation.

Key Specifications

• Dual CHIRP: Low 42-65 kHz (25°/16° beam), Medium 85-135 kHz (16°/11° beam).

• 1 kW RMS power with 10m (33 ft) cable length.

• Urethane housing in adjustable mounting tank.

• Compatible with Axiom Pro RVX, CP470/570 modules.

Technical Specifications

• Maximum depth: 3,000 ft (low), 1,500 ft (medium).

• 8 internal broadband ceramics providing 73 kHz total bandwidth.

• Hull material: Solid fiberglass only; no cored construction.

• 11-pin connector for direct Raymarine sonar integration.

What's in the Box

• M265LM CHIRP transducer with 10m cable.

• In-hull mounting tank and hardware kit.

• Deadrise adjustment fairing block.
