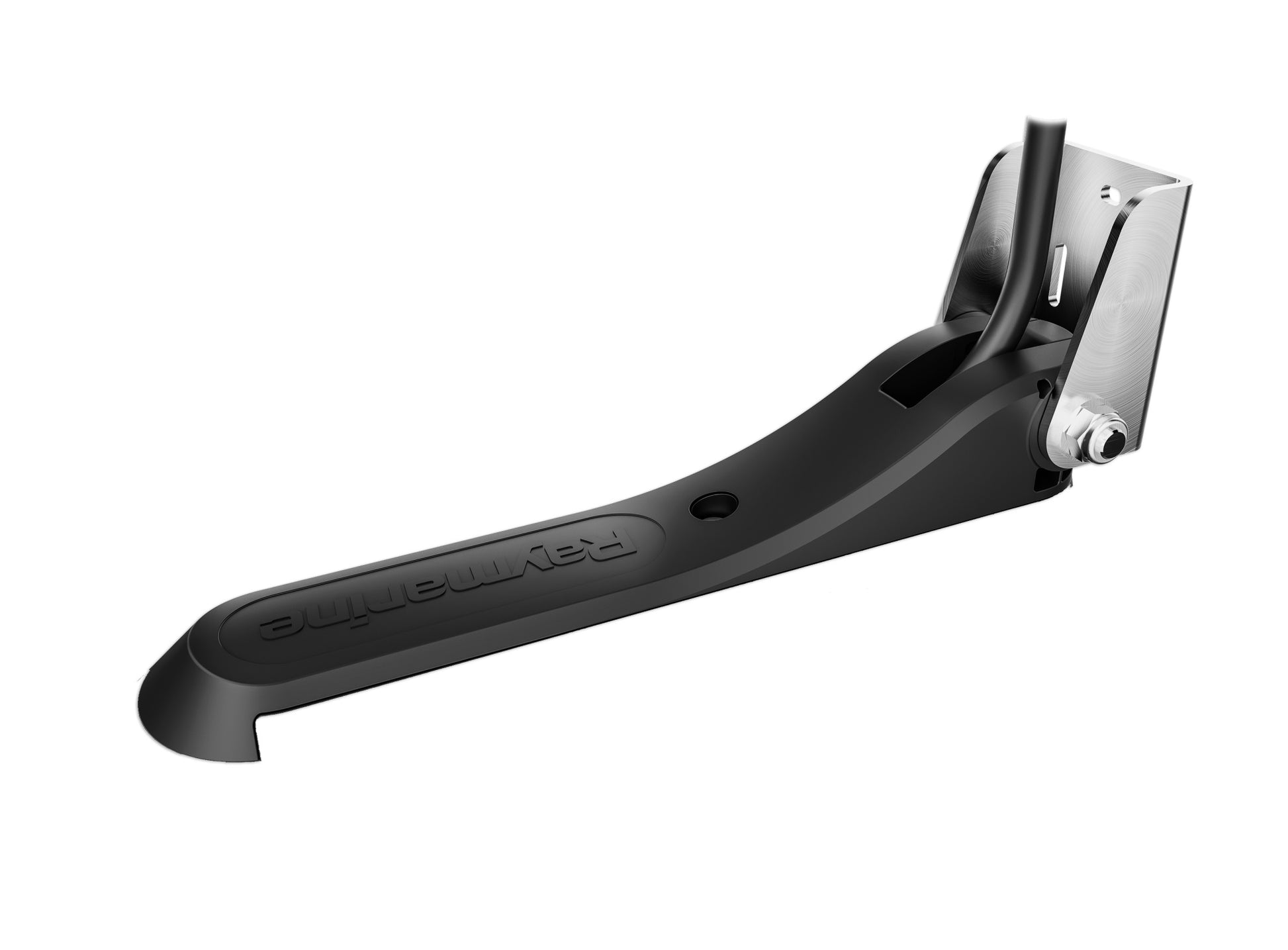

Raymarine Mounting Bracket For RV-100

Product Description

Raymarine RV-100 Mounting Bracket provides transom attachment for the RV-100 RealVision 3D transducer. This stainless steel bracket enables secure sonar installation on outboard-powered motor boats with kick-up protection.

Product Overview

Bass boat and skiff operators use this bracket to mount RV-100 transducers for RealVision 3D, DownVision, and SideVision scanning. The kick-up design protects against debris strikes during shallow water navigation and trailering.

Key Specifications

• Stainless steel transom bracket with kick-up pivot mechanism.

• Includes transducer carrier bracket and pivot hardware.

• Self-tapping mounting screws for fiberglass hulls.

• Compact design fits 20-30° transom deadrise angles.

Technical Specifications

• Compatible with RV-100 and RVM-100 transducers only.

• Adjustment slots for precise height and angle alignment.

• Corrosion-resistant 316 stainless steel construction.

• Supports 8m transducer cable routing through transom.

What's in the Box

• Single R70521 RV-100 Transom Mounting Bracket kit.

• Mounting screws and pivot hardware included.
