Raymarine P70 Pilot Controls.

Raymarine Autopilot Control Heads

Models:

• p70Rs Autopilot Control with Rotary Knob (Model: E70329)

• p70s Autopilot Control (Model: E70328)

Features

p70Rs Autopilot Control (E70329)

• 3.5" super bright oversized sunlight-readable optically bonded LCD for maximum visibility

• All-weather, low-power display technology delivering brighter colors and sharp contrast

• Rotary control knob for intuitive course changes and power steer mode

• Supports autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer

• Displays pilot information with automatic 3-step setup for leisure, cruising, and performance

• Simple system and group dimming/illumination

• Easy-to-use Lighthouse user interface with sculpted rubber keypad for precise operation in all conditions

• SeaTalkng networking for seamless integration with Raymarine systems and NMEA2000 networks

• New glass bridge industrial design complements Raymarine eS and gS series multifunction displays

• Supplied with black (eS Series style) and gunmetal (e Series style) bezels and protective suncover

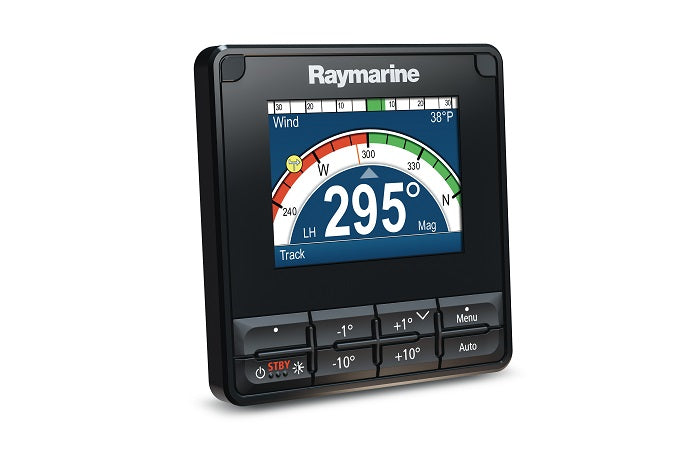

p70s Autopilot Control (E70328)

• 3.5" super bright oversized sunlight-readable optically bonded LCD

• All-weather, low-power display for clear visibility with bright colors and sharp contrast

• Push-button control designed primarily for sailboats

• Supports autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer

• Displays pilot information with automatic 3-step setup for leisure, cruising and performance

• Simple system and group illumination dimming

• Lighthouse user interface with sculpted rubber keypad

• SeaTalkng networking with NMEA2000 support

• Glass bridge design to match eS and gS series multifunction displays

• Supplied with black (eS style) and gunmetal (e Series) bezels and protective suncover

Comparison Table

What’s in the Box

• Autopilot Control Head (p70Rs or p70s model ordered)

• Black bezel (eS Series style) fitted

• Gunmetal bezel (e Series style) spare

• Protective suncover

• Panel seal gasket

• 400 mm (15.7 in) SeaTalkng spur cable (A06038)

• Mounting fixings (4 x M3x16 panhead screws)

• Documentation
