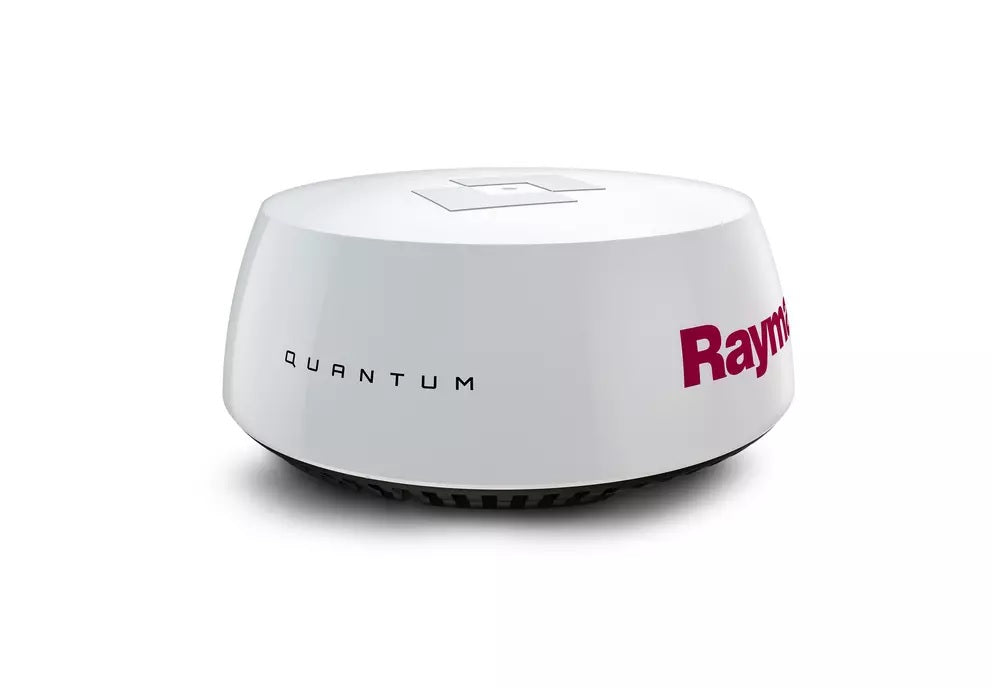

Raymarine Quantum Q24C 18in Wifi Dome With Cables.

Raymarine Quantum Q24C 18" CHIRP Radar Series
Compact Solid‑State Marine Radar with Wi‑Fi and Cable Connectivity

The Raymarine Quantum Q24C, powered by FLIR CHIRP pulse compression technology, redefines compact radar performance for sailors and power cruisers alike. Delivering crystal‑clear target separation and unrivaled short‑range detection (18 ft minimum) through FLIR’s proprietary ATX™ target separation technology, Quantum ensures superior detail and long‑range imaging up to 24 nm.

Its solid‑state transmitter, Wi‑Fi connectivity, and thin RayNet cabling simplify installation while reducing power draw and weight by over 50% compared to magnetron radars. Quantum Q24C starts instantly for immediate awareness and provides safe, low‑emission operation ideal for battery‑powered vessels.

---

Model Numbers

- Quantum Q24C with 15 m Cables – Model: T70266
- Quantum Q24C with 10 m Cables – Model: T70243
- Quantum Q24C (No Data Cable) – Model: E70210

---

Key Features

- CHIRP Pulse Compression delivers superior resolution and short‑range target detail.
- FLIR ATX™ Target Separation renders boats, buoys, and weather cells with exceptional clarity.
- Instant startup — ready in seconds without magnetron warm‑up.
- Integrated Wi‑Fi and RayNet connectivity for simple installation.
- Compact, lightweight design (≈ 5.6 kg / 12.3 lb).
- Energy efficient: 17 W transmit / 7 W standby / 2 W sleep mode.
- 24 nm maximum range with detection down to 18 ft (6 m).
- Same mount pattern as previous Raymarine radars for drop‑in replacement.
- Safe solid‑state emissions with low radiation output.

---

Model Comparison

---

Technical Specifications

- Voltage: 12 / 24 V DC (10.8 – 31.2 V range)
- Antenna: Patch Array (X‑Band, CHIRP Pulse Compression)
- Peak Power Output: 20 W Solid State
- Operating Temp: –10 °C to +55 °C | Storage: –25 °C to +70 °C
- Polarization: Horizontal | Rotation: 24 rpm nominal
- Dimensions: Ø 541 mm × H 209.5 mm
- Mount: Compatible with standard Quantum patterns

---

What’s in the Box

T70266 – 15 m Cable Kit:
- Quantum Q24C Radome
- 15 m Power Cable + 15 m Data Cable
- 4 × M8 Bolts with washers
- Documentation pack

T70243 – 10 m Cable Kit:
- Quantum Q24C Radome
- 10 m Power Cable + 10 m Data Cable
- 4 × M8 Bolts with washers
- Documentation pack

E70210 – Wi‑Fi / Wired Model (10 m Power):
- Quantum Q24C Radome
- 10 m Power Cable
- 4 × M8 Bolts with washers
- Documentation pack
