Raymarine RAY VHF Series.

Raymarine Marine VHF Radios

Raymarine’s marine VHF radio range offers reliable, feature-rich communication solutions with built-in GPS receivers and seamless integration with onboard electronics. Models range from compact to full-sized and include Digital Selective Calling (DSC), multi-station support, AIS capability, loudhailer functions, and advanced network connectivity.

Models:

• RAY73 (Model: E70517)

• RAY63 (Model: E70516)

• RAY53 (Model: E70524)

---

Model Overviews and Key Features

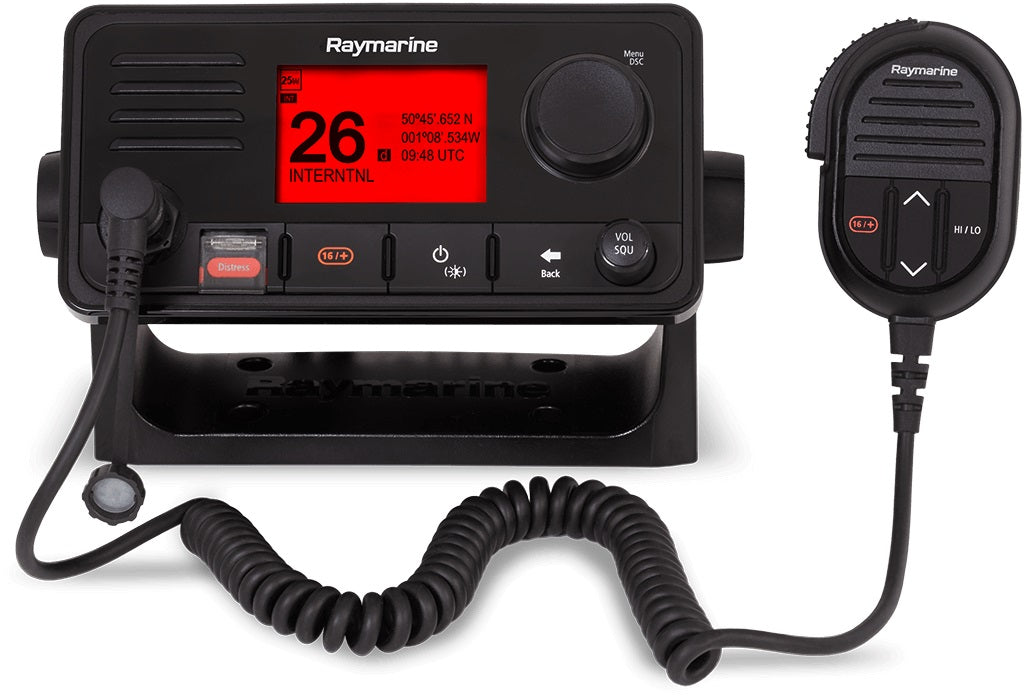

RAY73 – Full-Sized VHF with AIS & Loudhailer

• Digital Selective Calling (DSC)

• Built-in Class D AIS receiver for target data on chartplotters, radar, and instruments

• Integrated GPS/GNSS receiver with external antenna connection

• Fog signaling and public address with optional hailing horn (M95435)

• Wired and wireless RayMic handset stations supported

• NMEA2000 and NMEA0183 networking

• Audio output for optional passive remote speakers (A80542)

• Surface and trunnion mount kits included

• Large controls and screen for easy offshore use

• Matches Axiom multifunction displays

RAY63 – Full-Function VHF with GPS & DSC

• DSC Class D

• Built-in GPS/GNSS with external antenna port

• Supports wired and wireless RayMic controllers for multi-station use

• NMEA2000 and NMEA0183 integration

• Audio output for remote speakers

• Surface and trunnion mounting kits

• Designed to complement Axiom displays

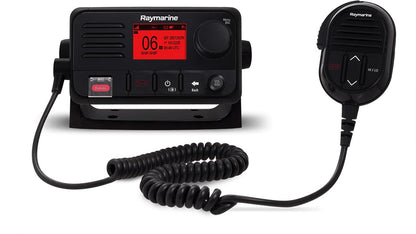

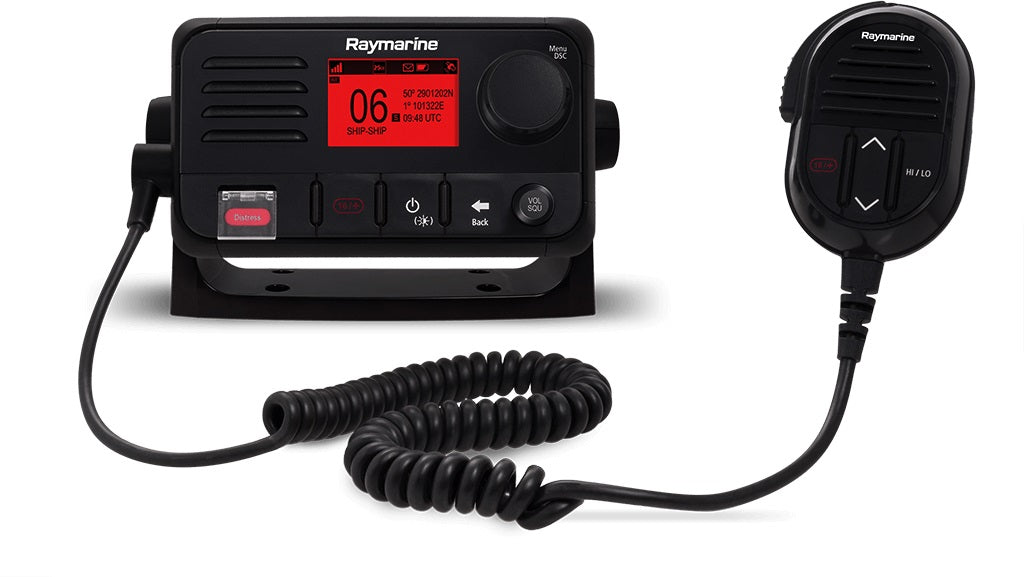

RAY53 – Compact VHF with GPS & DSC

• Small size with full VHF and Class D DSC

• Built-in GPS/GNSS receiver with external antenna option

• NMEA2000 and NMEA0183 compatible

• Audio output for passive remote speakers

• Surface and trunnion mount kits

• Fits smaller boats, matches Axiom series

---

Comparison Table

---

What’s in the Box

RAY73 (E70517):

• Ray73 VHF DSC Radio

• Sun cover

• Panel mount gasket

• Fistmic handset

• Mounting bracket (trunnion) and knobs

• Fistmic hook plate

• Documentation

• Protective antenna boot

• SeaTalkng blanking plug

• SeaTalkng 400 mm (15.7 in.) spur cable

• Mounting hardware (screws, nuts, washers)

RAY63 (E70516):

• Ray63 VHF DSC Radio

• Sun cover

• Panel mount gasket

• Fistmic handset

• Mounting bracket (trunnion) and knobs

• Fistmic hook plate

• Documentation

• Protective antenna boot

• SeaTalkng blanking plug

• SeaTalkng 400 mm (15.7 in.) spur cable

• Mounting hardware (screws, nuts, washers)

RAY53 (E70524):

• Ray53 VHF DSC Radio

• Sun cover

• Panel mount gasket

• Mounting bracket (trunnion) and knobs

• Fistmic hook plate

• Documentation

• Protective antenna boot

• SeaTalkng blanking plug

• SeaTalkng 400 mm (15.7 in.) spur cable

• Mounting hardware (screws, nuts, washers)
