Vendor: Raymarine
Sku: RAYE70493

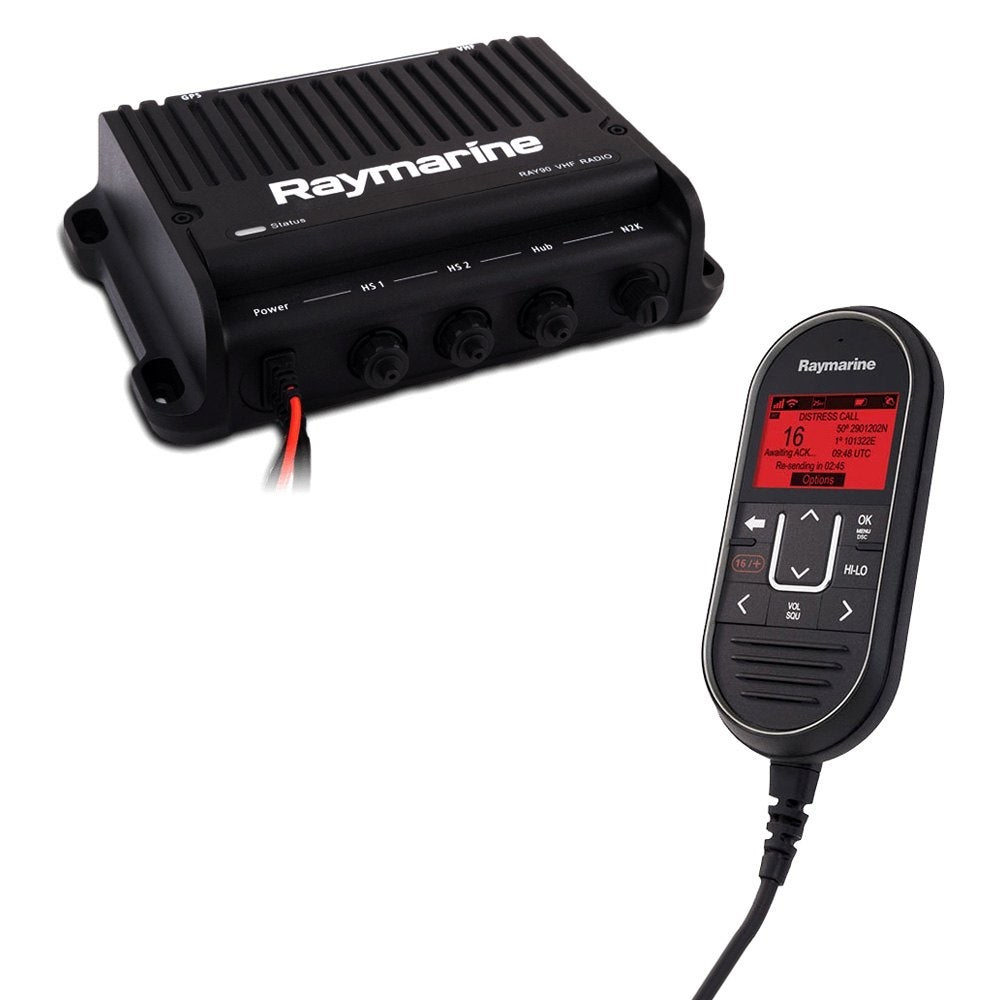

Raymarine RAY VHF Modular Radio.

$978.95
$1,099.99 $978.95
Sold out
-11%
Shipping calculated at checkout.
Low stock: 2 left
Model: RAY91 with AIS

Description

Caret Down

Raymarine Modular VHF Radios

Models:

  • RAY91 Modular Dual-Station VHF Radio with AIS (Model: E70493)

  • RAY90 Modular VHF Radio (Model: E70492)

 Key Features

RAY91 – Dual-Station VHF Radio with AIS

  • Black box, dual-station capable design for flexible mounting

  • Built-in Automatic Identification System (AIS) Class B receiver for real-time vessel tracking

  • Wired handset and passive speaker included

  • Optional wireless RayMic handset and active speaker available

  • Expandable to two RayMic handsets for full multi-station control

  • Built-in loudhailer and fog signal generator with 30-watt output and 2-way talkback

  • Optional external GPS receiver and Class D DSC for emergency and secure communications

  • Integrated position tracking for monitoring up to 5 nearby DSC-equipped vessels

  • Supports ATIS system for inland waterways (Europe)

  • NMEA2000 and NMEA0183 networking for seamless AIS data sharing with multifunction displays

  • Aluminum transceiver for enhanced heat dissipation and vibration resistance

  • 25W transmitter and commercial-grade electronics for robust and reliable performance

RAY90 – Modular VHF Radio (No AIS)

  • Compact black box radio with hidden transceiver module and wired handset

  • Dual-station capable; expandable to two handsets with optional RayMic controls

  • Built-in loudhailer and fog signal generator with 30W output and 2-way talkback

  • 25W transmitter ensures clear communications in challenging conditions

  • Integrated GPS via optional GA150 passive antenna (required for DSC functions)

  • Supports channel scanning, dual-watch, and tri-watch monitoring modes

  • Position tracking for up to five nearby DSC-equipped vessels

  • NMEA2000 and NMEA0183 connectivity for integration with Raymarine navigation systems

  • Durable aluminum chassis for heat control and rugged reliability

Comparison Table

Feature RAY91 (E70493) RAY90 (E70492)
AIS Receiver Built-in, Class B AIS Not included
VHF Class Class D DSC Class D DSC
Transmitter Power 25W / 1W selectable 25W / 1W selectable
Dual-Station Support Yes (up to 2 RayMic handsets) Yes (up to 2 RayMic handsets)
Wireless Handset Support Yes (optional RayMic) Yes (optional RayMic)
Loudhailer Output 30W with 2-way talkback 30W with 2-way talkback
Position Tracking Tracks up to 5 DSC vessels Tracks up to 5 DSC vessels
External GPS Antenna Optional (GA150 required) Optional (GA150 required)
Networking Compatibility NMEA2000, NMEA0183 NMEA2000, NMEA0183
Waterproofing IPX6 & IPX7 IPX6 & IPX7
Operating Voltage 12V DC (9–16V) 12V DC (9–16V)
Power Consumption <6A at 13.6V (High Power) <6A at 13.6V (High Power)
Frequency Range 156.000–157.425 MHz (VHF Marine Bands) 156.000–157.425 MHz (VHF Marine Bands)
Dimensions (H × W × D) 2.48" × 9.25" × 6.3" 2.48" × 9.25" × 6.3"


What’s in the Box

RAY91 (E70493):

  • Ray91 VHF DSC Radio (with integrated power and data cable)

  • RayMic handset and cradle

  • RayMic adaptor cable (12-pin female to 12-pin male with RCA audio)

  • Passive speaker and mounting gasket

  • Speaker mounting screws (x4)

  • Documentation and installation guide

  • DeviceNet to SeaTalkng adaptor

  • Handset cradle mounting screws (x4)

  • VHF radio mounting screws (x4)

RAY90 (E70492):

  • Ray90 VHF DSC Radio (with integrated power and data cable)

  • RayMic wired handset and cradle

  • Passive speaker and mounting gasket

  • Speaker mounting screws (x4)

  • Documentation and installation guide

  • DeviceNet to SeaTalkng adaptor

  • Handset cradle mounting screws (x4)

  • VHF radio mounting screws (x4)
