Raymarine RMK10 Remote Keypad Series.

Raymarine RMK‑10 Remote Keypad Series
Compact HybridTouch™ Keypad Control for Raymarine Multifunction Displays

The Raymarine RMK‑10 Remote Keypad provides complete control of Raymarine chartplotters and multifunction displays from remote or secondary helm positions. Compact, rugged, and network‑powered, the RMK‑10 duplicates the operation of MFDs, offering full keypad and rotary control for a‑Series, c‑Series, e‑Series, eS‑Series, and gS‑Series displays running LightHouse II or later.

Its multifunction rotary controller combines a cursor pad and knob for precise chart, menu, and autopilot interactions. The RMK‑10 can be surface or flush mounted, and connected via RayNet network for controlling one display or multiple linked systems. Fully backlit with dedicated buttons for autopilot, waypoints, and brightness control, it’s the ideal solution for overhead boxes, chair arm mounts, or below‑deck repeater stations.

---

Model Numbers

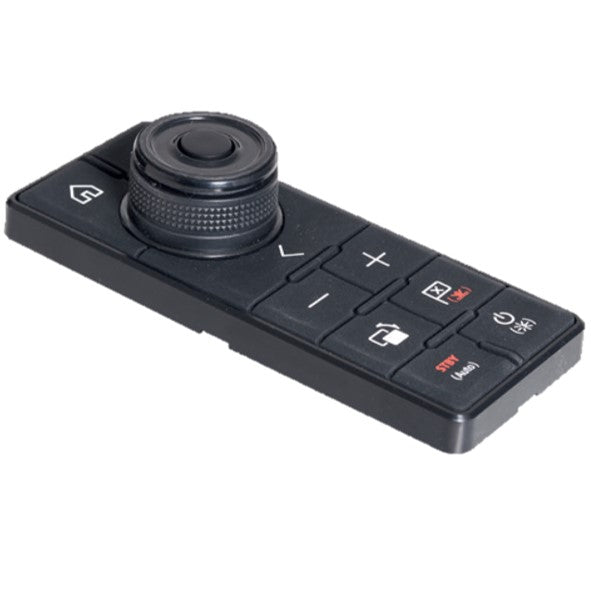

- RMK‑10 Remote Keypad (Portrait & Landscape Faceplates) – Model: T70293

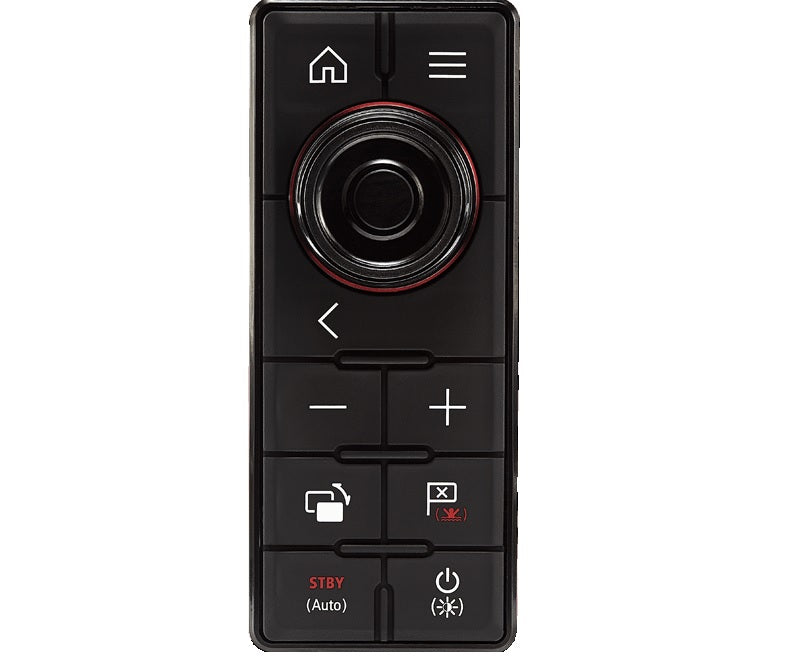

- RMK‑10 Remote Keypad (Portrait Only) – Model: A80438

---

Key Features

- Full navigation system control of a/c/e/eS/gS Series MFDs via RayNet network.
- Dedicated keys for Home, Menu, Zoom In/Out, Window, Waypoint, and Autopilot.
- Rotary controller with cursor pad for precise onscreen operation.
- Backlit keys and dimmable illumination for low‑light environments.
- HybridTouch™ compatibility adds tactile control to multitouch displays.
- Surface or flush mount installation.
- Compact footprint for helm panels, armrests, or secondary stations.
- RayNet network connectivity – controls single display or multi‑unit helm clusters.
- Rugged marine design: IPX6 rated and PoE Class 1 powered (1.8 W max).

---

Model Comparison

---

Technical Specifications

- Network/Power: RayNet port (PoE Class 1; 1.8 W max).
- Nominal Voltage: 12 V / 24 V DC (10.8 – 31.2 V range).
- Current Draw: Approx. 0.16 A @ 12 V nominal.
- Operating Temperature: –25 °C to +55 °C (–13 °F to 131 °F).
- Waterproof Rating: IPX6.
- Compatibility: a‑, c‑, e‑, eS‑, and gS‑Series MFDs (LightHouse II +).
- Supported Functions: Navigation, chart zoom, autopilot, menu access, system control.

---

What’s in the Box

RMK‑10 (T70293 – Portrait & Landscape Kits):
- RMK‑10 Keypad
- Portrait + Landscape Faceplates
- 2 m RayNet Network Cable
- 2 m Right‑Angled Power Cable
- Mounting Gasket and Fixings (× 4)
- Documentation Pack

RMK‑10 (A80438 – Portrait Only):
- RMK‑10 Keypad (Portrait Faceplate and Mat)
- 2 m RayNet Network Cable
- 2 m Right‑Angled Power Cable
- Mounting Gasket and Fixings (× 4)
- Documentation Pack
