Raymarine RV-200 and RV-300 All-In-One Through Hull Transducers
Models:
-

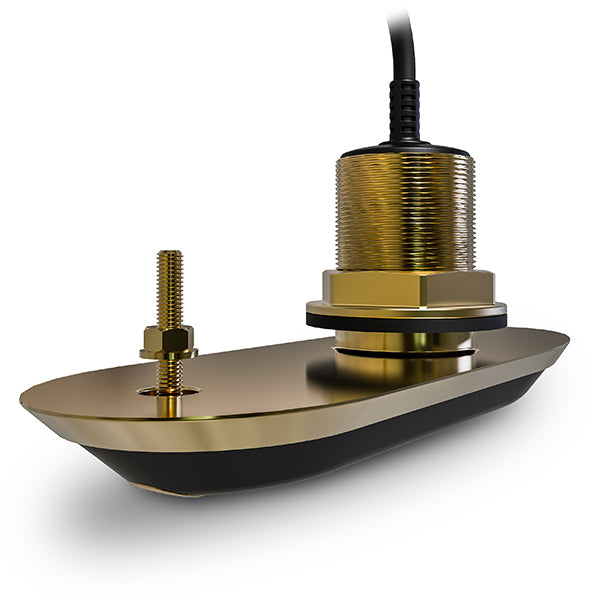

RV-200 Bronze All-In-One Through Hull Transducer (Model: A80465)
-

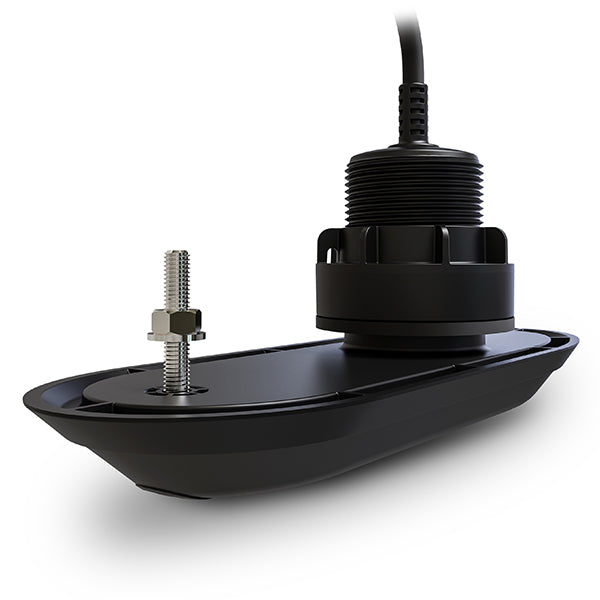

RV-300 Plastic All-In-One 0° Through Hull Transducer (Model: A80470)
Key Features
Both the Raymarine RV-200 and RV-300 transducers are designed for inboard and outboard powerboats, delivering lifelike underwater images with RealVision 3D™ sonar, DownVision™, SideVision™, and high-frequency CHIRP fish targeting. Both transducers feature a built-in Attitude and Heading Reference System (AHRS) that stabilizes sonar imagery by compensating for vessel motion, enabling crystal-clear images even in waves and swells. A fast-response water temperature sensor provides accurate temperature data.
-
RV-200 features a rugged cast-bronze housing suitable for fiberglass or wooden hulls.
-
RV-300 features a rugged plastic housing compatible with fiberglass, steel, or aluminum hulls.
-
Both are arranged with a 0° offset for boats with flat bottoms (0°–5° deadrise).
-
Near-flush, low-profile designs minimize drag and cavitation and are suitable for trailered boats without the need for a fairing block.
Combined Comparison Table
| Feature | RV-200 (A80465) | RV-300 (A80470) |
|---|---|---|
| Material | Cast Bronze | Rugged Plastic |
| Max Depth (Sonar/CHIRP) | 900 ft (274 m) | 900 ft (274 m) |
| Max Depth (3D) | 300 ft (91 m) | 300 ft (91 m) |
| Max Depth (DownVision) | 600 ft (183 m) | 600 ft (183 m) |
| Max Depth (SideVision) | 300 ft (91 m) | 300 ft (91 m) |
| Frequency | Wide Spectrum CHIRP 25–250 kHz | Wide Spectrum CHIRP 25–250 kHz |
| Beam Width | 3D: 180°, DownVision: 60°, Conical: 25° | 3D: 180°, DownVision: 60°, Conical: 25° |
| Cable Length | 8 m (26 ft) | 8 m (26 ft) |
| Compatible Hull Types | Fiberglass, Wood | Fiberglass, Steel, Aluminum |
| Supported Deadrise | 0° to 5° | 0° to 5° |
| Waterproof Rating | IPX6 / IPX7 / IPX8 | IPX6 / IPX7 / IPX8 |
| Operating Temperature | −2°C to +55°C (28°F to 131°F) | −2°C to +55°C (28°F to 131°F) |
| Storage Temperature | −20°C to +70°C (-4°F to 158°F) | −20°C to +70°C (-4°F to 158°F) |
| Weight | 2.588 kg (5.70 lbs) | ~2.2 kg (4.85 lbs) |
| Dimensions (L×W×H) | 308 × 105.3 × 166 mm (12.13" × 4.15" × 6.54") | 310.5 × 106.7 × 166 mm (12.22" × 4.20" × 6.54") |
What’s in the Box
-
RV-200 or RV-300 All-In-One Through Hull Transducer (model ordered)
-
8-meter (26-foot) cable with connector
-
Anti-rotation bolt kit
-
Installation instructions and template
