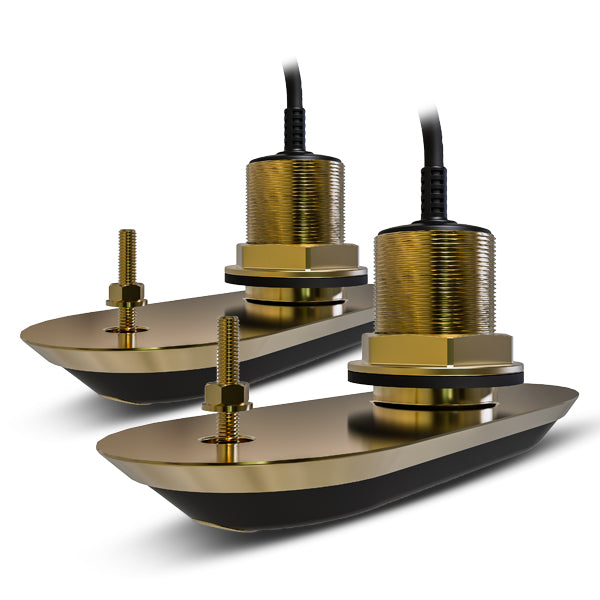

Raymarine RV-200 RealVision 3D Pair Bronze Thru Hull.

$2,269.99

~~$2,269.99~~ $2,269.99

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Model: 20deg 20deg 12deg

Description

Raymarine RV-200 Series Bronze Through-Hull Transducer Packs
RealVision 3D™ Wide Spectrum CHIRP Sonar with AHRS and Temperature Sensing

The Raymarine RV-220 and RV-212 transducer systems provide advanced 4-channel Wide Spectrum CHIRP sonar technology including DownVision™, SideVision™, high-frequency CHIRP fish targeting, and RealVision 3D™ imaging. Featuring built-in attitude and heading reference system (AHRS), they automatically stabilize sonar imagery to ensure clear, crisp images even with vessel motion such as waves and swells.

These rugged, cast-bronze through-hull transducers are designed for fiberglass or wooden hulls and are ideal for boats with varying hull deadrise angles thanks to internal tilt compensation—eliminating the need for fairing blocks. Their low-profile, near-flush design reduces drag and cavitation, making them suitable for trailered boats. A paired set transmits port and starboard to cover a full 180° below the boat, accommodating deep keels and other underwater hull features.

Model Numbers

RV-220 Bronze Through Hull Transducer Pack (20° Deadrise Compensation) – Model: T70319
RV-212 Bronze Through Hull Transducer Pack (12° Deadrise Compensation) – Model: T70318

Key Features

4-channel Wide Spectrum CHIRP sonar: RealVision 3D, DownVision, SideVision, and high-frequency CHIRP targeting.
Built-in AHRS for stabilized sonar imagery automatically compensating for vessel attitude.
Fast-response integrated water temperature sensor.
Internal tilt angle to suit hull deadrise: 13°–20° (RV-220), 1°–12° (RV-212), no fairing blocks required.
Rugged cast-bronze body, suitable for fiberglass and wooden hulls; not for metal hulls.
Low-profile, near-flush installation minimizes drag and cavitation.
Paired port and starboard transducers provide comprehensive 180° underwater coverage.
Includes 2-meter transducer cables, RealVision 3D Y-cable, and 8-meter extension cable for a total of 10 meters length.
Anti-rotation bolt kits included for secure installation.

Technical Specifications

Feature	RV-220 (T70319)	RV-212 (T70318)
Hull Deadrise Range	13° to 20°	1° to 12°
Material	Cast Bronze	Cast Bronze
Mounting Type	Through-Hull	Through-Hull
Max Depth (RealVision 3D)	~300 ft (90 m)	Similar
Max Depth (DownVision)	~600 ft (180 m)	Similar
Max Depth (Port/Starboard)	~300 ft (90 m)	Similar
Max Depth (Cone)	~900 ft (275 m)	Similar
Sonar Types	CHIRP, DownVision, SideVision, 3D	Same
Beam Width (Horizontal/Vertical)	180° / 25°	Same
Cable Total Length	10 meters (33 feet)	10 meters (33 feet)
Suitable Hull Materials	Fiberglass, Wood (not metal)	Fiberglass, Wood (not metal)
