Raymarine RV-400 Thru-Hull Pair Stainless Steel.

Raymarine RV-400 Series RealVision 3D Through-Hull Transducer Packs

Model Numbers:

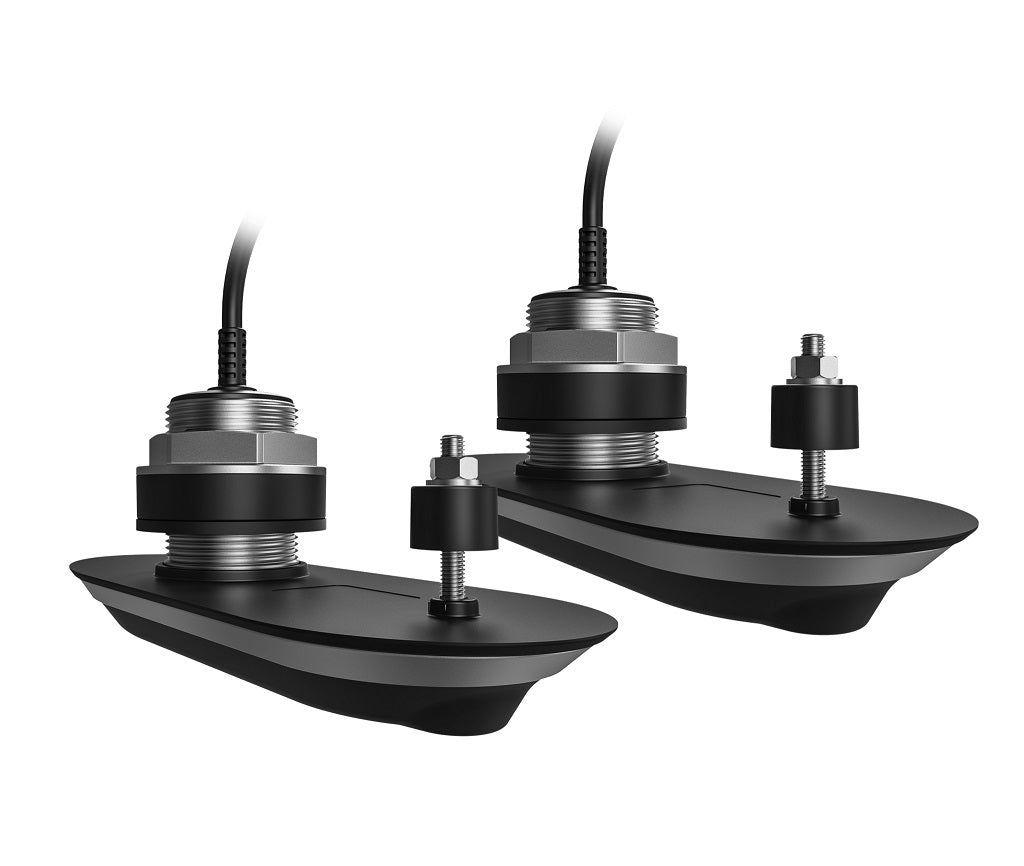

• RV-420 Stainless Steel Through-Hull Pack (20° Tilt) – Model: T70451

• RV-412 Stainless Steel Through-Hull Pack (12° Tilt) – Model: T70450

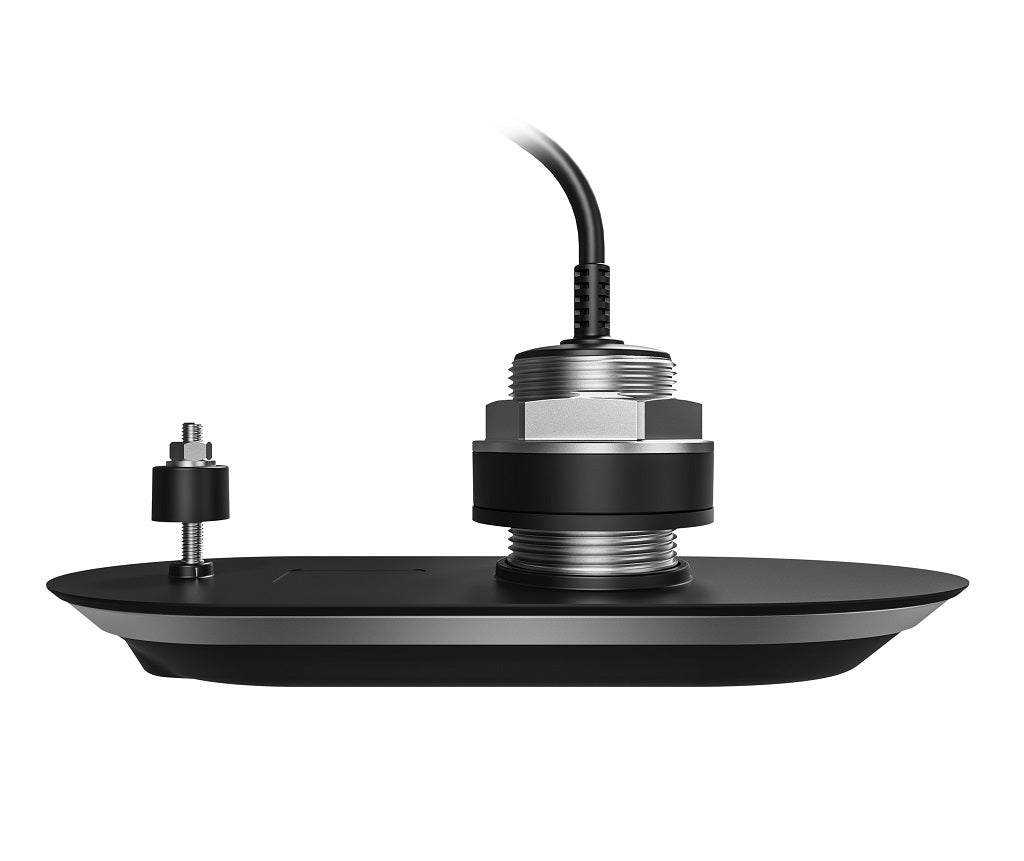

• RV-400 Stainless Steel All-In-One Through Hull Transducer (0° Tilt) – Model: A80615

---

Key Features

The Raymarine RV-400 Series (RealVision 3D) transducers provide ultimate clarity and stability for inboard and outboard boats. Crafted with rugged stainless steel for fiberglass, wood, or metal hulls, these transducer pairs deliver DownVision™, SideVision™, High CHIRP, and RealVision 3D™ sonar in one low-profile package.

Each transducer includes a built-in Attitude and Heading Reference System (AHRS) that auto-stabilizes 3D sonar imagery even in rough conditions. The low-profile tilted-element design accommodates specific hull angles, eliminating the need for fairing blocks and reducing drag and cavitation.

With precise temperature sensing and wide-spectrum CHIRP performance, these through-hulls provide crystal-clear imaging for structure tracking, fish detection, and bottom mapping—ideal for serious fishermen and demanding navigators. The RV-400 All-In-One transducer (0° tilt) works well on boats with flat bottoms and trailerable boats.

They are compatible with Raymarine RealVision 3D sonar modules and Axiom Pro RVM chartplotters.

---

Model Comparison Table

---

Technical Specifications

• Construction: Stainless Steel Low-Profile Through-Hull

• Frequency: RealVision, High CHIRP (50-60/200-350 kHz)

• Beam Width: 3D (180°), DownVision (60°), Conical (25°)

• Max Depth: 3D (300 ft), DownVision (600 ft), Conical (900 ft)

• Temperature Sensor: Fast-response thermistor

• Operating Compatibility: Raymarine RealVision 3D / RVM Series systems

• Hull Material Support: Fiberglass, wood, or metal

---

What’s in the Box

RV-420 Pack (T70451):

• RV-420P Port Transducer Array (2 m cable)

• RV-420S Starboard Transducer Array (2 m cable)

• RealVision 3D Y-Cable

• RealVision 3D 8 m Extension Cable

• Anti-rotation Bolt Kit

• Installation Instructions

RV-412 Pack (T70450):

• RV-412P Port Transducer Array (2 m cable)

• RV-412S Starboard Transducer Array (2 m cable)

• RealVision 3D Y-Cable

• RealVision 3D 8 m Extension Cable

• Anti-rotation Bolt Kit

• Installation Instructions

RV-400 Transducer (A80615):

• Stainless Steel All-In-One Through Hull Transducer with 8 m (26 ft) cable

• Anti-rotation Bolt Kit

• Transducer Locknut

• Installation Instructions
