Product Description

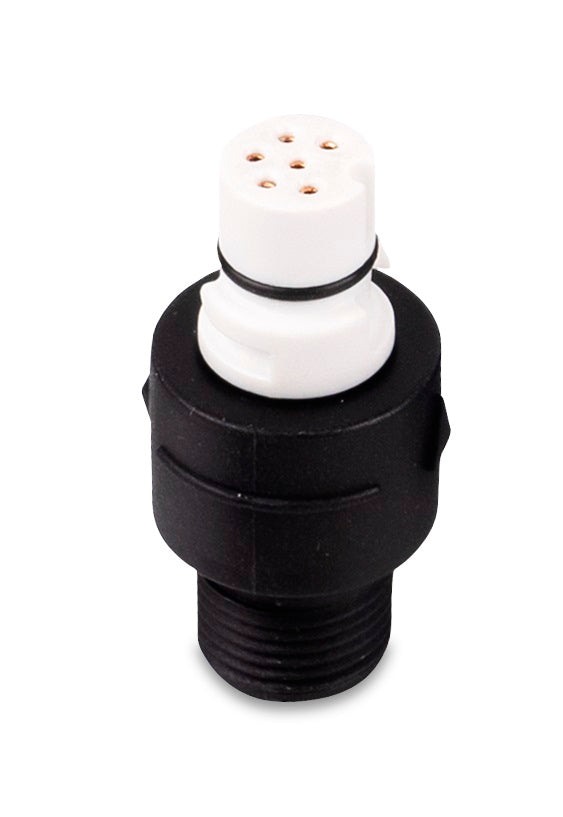

Raymarine (A06083) SeaTalkNG Adapter features DeviceNet Male to SeaTalkNG Female connectors for hybrid network integration. This straight spur adapter connects NMEA 2000 DeviceNet devices directly to Raymarine SeaTalkNG systems.
Product Overview
Marine technicians deploy the A06083 to link third-party NMEA 2000 sensors or displays to SeaTalkNG backbones on boats. It enables protocol bridging at device ends or cable terminations during network expansions. The adapter simplifies mixed-brand installations without additional cabling.
Key Specifications
-
DeviceNet male (threaded) to SeaTalkNG female (white spur) configuration.
-
Compact straight design for tight console or bulkhead mounting.
-
Waterproof marine-grade materials resist corrosion in saltwater.
Technical Specifications
-
Supports SeaTalkNG to NMEA 2000 DeviceNet protocol conversion at 250 kbps.
-
Backbone-powered with 12V DC and bidirectional data transmission.
What's in the Box
-
Single A06083 DeviceNet Male to SeaTalkNG Female Adapter.
-
No mounting hardware or extension cables provided.
