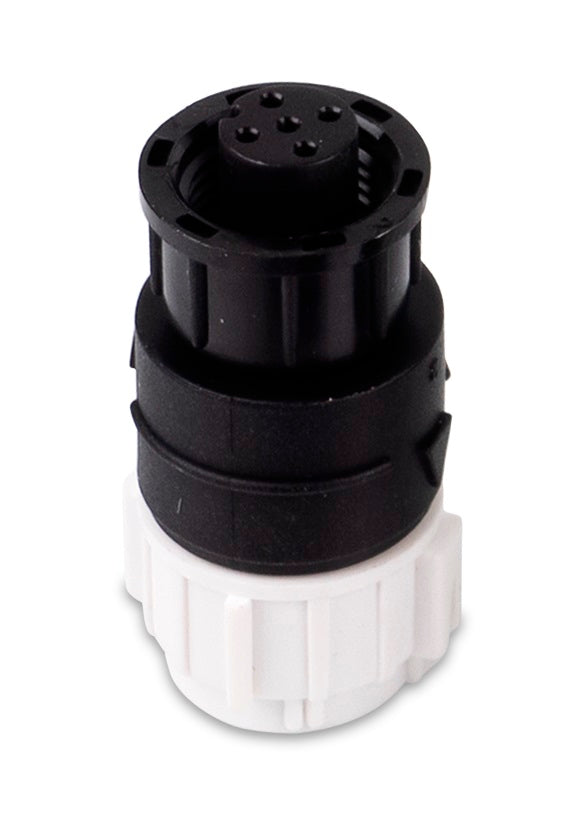

Raymarine SeaTalkNG Adapter STNG Male to Devicenet F

Product Description

Raymarine RAYA06082 (A06082) SeaTalkNG Male to DeviceNet Female Adapter provides direct protocol conversion between SeaTalkNG and NMEA 2000 networks. This compact spur adapter integrates Raymarine devices into third-party NMEA 2000 systems on boats.

Product Overview

Installers use the A06082 in marine electronics setups to connect SeaTalkNG spur cables or devices directly to DeviceNet female ports on NMEA 2000 backbones. It simplifies hybrid network configurations for navigation instruments and sensors. The straight connector design supports easy access during system expansion.

Key Specifications

• SeaTalkNG male to DeviceNet female connector configuration.

• Plug-and-play for Raymarine and non-Raymarine NMEA 2000 components.

• Waterproof construction suitable for marine saltwater environments

Technical Specifications

• Converts SeaTalkNG protocol to standard NMEA 2000 DeviceNet without signal loss.

• Supports 12V DC power and bidirectional data at 250 kbps baud rate.

• Dimensions suit compact installations: package approx. 0.8cm x 10.4cm x 14.6cm.

• No external power or terminators required; backbone-powered.

What's in the Box

• Single A06082 SeaTalkNG Male to DeviceNet Female Adapter.

• No cables, mounting hardware, or additional accessories included.
