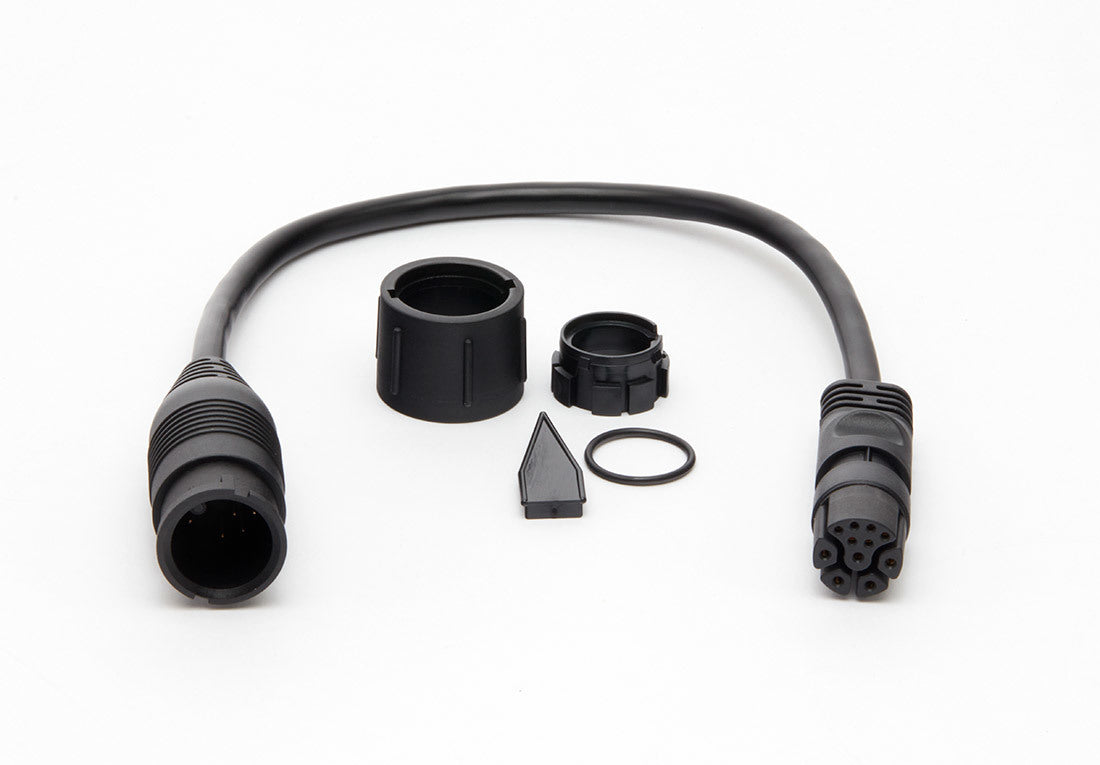

Raymarine Single Channel CHIRP Operation Cable

Product Description

Raymarine Single Channel CHIRP Operation Cable connects single-channel CHIRP transducers to CP450C/CP470/CP570 sonar modules.

Product Overview

Boat installers use this cable for standard single CHIRP transducer installations on Raymarine sonar systems. It supports medium or high-frequency transducers for dedicated depth sounding during marine navigation and fishing.

Key Specifications

• Direct connection for single-channel CHIRP transducers.

• Compatible with Raymarine CP470, CP570, RVX1000, and Axiom Pro RVX.

• Waterproof marine-grade connectors for reliable operation.

• Standard length for typical console-to-transducer routing.

• Transducers: Designed for single Airmar B75 or B175 (including High, High-Wide, Medium, or Low bands).

Technical Specifications

• Supports CHIRP frequencies 25-255 kHz across single channel.

• Maintains 1kW RMS power handling without signal loss.

• 8-pin transducer connector to sonar module port.

• Designed for transom, thru-hull, or in-hull transducer types.

What's in the Box

• Single A80328 CHIRP Operation Cable.

• No Y-cables or extension cables included.
