Raymarine 175MW 1Kw 20Deg Tilt Wide Beam CHIRP Thru Hull Series.

$2,199.00

~~$2,199.00~~ $2,199.00

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Model: SS175MW (Stainless Steel) SS175MW (Stainless Steel) B175MW (Bronze) B150M – 300 W (Bronze)

Description

Raymarine CHIRP Tilted Element Thru‑Hull Transducer Series
Premium AIRMAR® 1 kW and 300 W Depth & Temperature Sensors

Built on AIRMAR’s innovative Tilted Element™ technology, Raymarine’s CHIRP‑ready thru‑hull transducers offer a low‑profile design that delivers outstanding depth performance and fish‑target separation without sacrificing speed or accuracy. Each model features patented Xducer ID® technology for automatic recognition and optimal CHIRP tuning when paired with compatible Raymarine sounders or AIRMAR modules.

Designed for anglers and boaters who demand uncompromising clarity and reliability, these tilted element sensors correct for hull deadrise, ensuring the acoustic beam is always vertically aligned for maximum echo return and accuracy.

Model Numbers

- SS175MW – 1 kW 20° Tilt Medium Ultra‑Wide CHIRP – Model: A80802
- B175MW – 1 kW 20° Tilt Medium Ultra‑Wide CHIRP – Model: A80801
- B150M – 300 W 20° Tilt Medium CHIRP – Model: A80805

Key Features

- TEM™ (Tilted Element Mount) corrects for hull angles to maximize echo returns.
- CHIRP‑ready single‑band operation for superior target separation and detail.
- Ultra‑wide beam coverage with accurate depth and temperature sensing.
- Suitable for fiberglass, wood, or metal hulls (up to 24° deadrise).
- Ideal for vessels requiring flush‑mount low‑drag performance.
- Xducer ID® auto‑detection ensures optimal sounder configuration.

Model Comparison

Model	SS175MW	B175MW	B150M
Power	1 kW	1 kW	300 W
Freq Range	60–100 kHz	60–100 kHz	95–155 kHz
Beam Angle	57°–73° × 16°	57°–73° × 16°	26°–17°
Max Depth	400 m	400 m	183 m
Material	Stainless Steel	Bronze	Bronze
Hull Type	All materials	Fiberglass/Wood	Fiberglass/Wood
Boat Length	≤ 11 m	≤ 11 m	≤ 8 m
Hole Size	95 mm	95 mm	51 mm
Weight	2.7 kg	2.7 kg	1.4 kg

Product Highlights

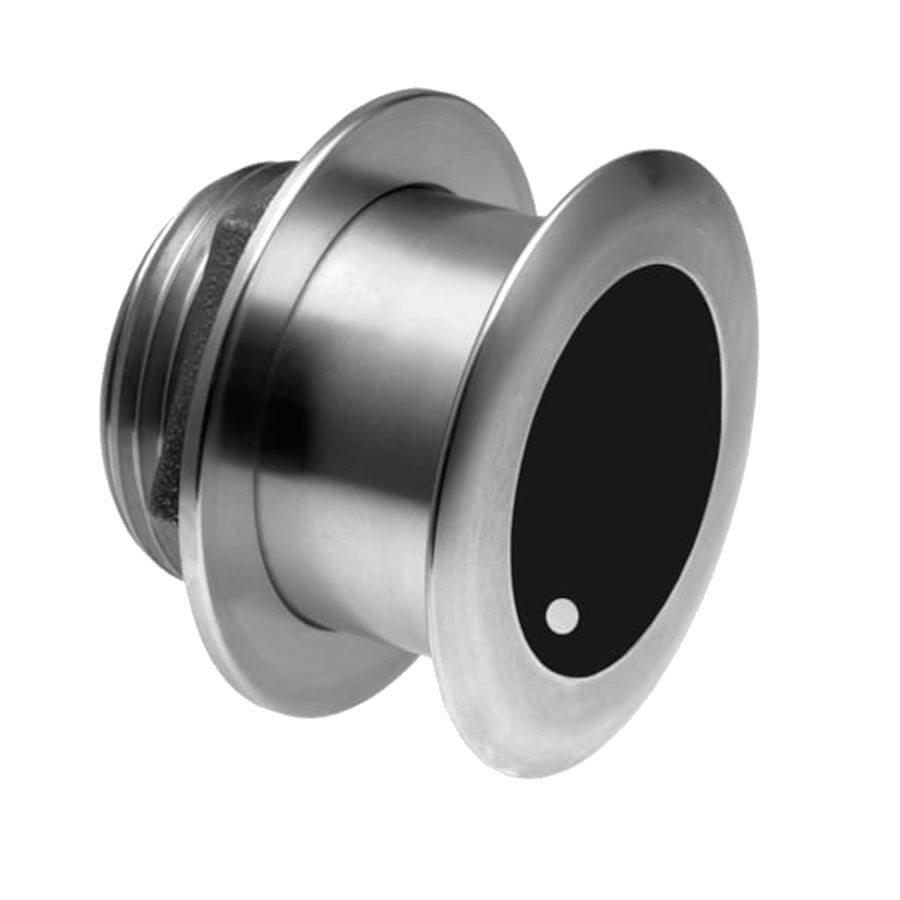

SS175MW – 1 kW Stainless Steel (20° Tilt)
- 60–100 kHz band (40 kHz bandwidth).
- Ultra‑wide 57°–73° beam for excellent mid‑depth pelagic coverage.
- Perfect for boats up to 11 m with any hull material.

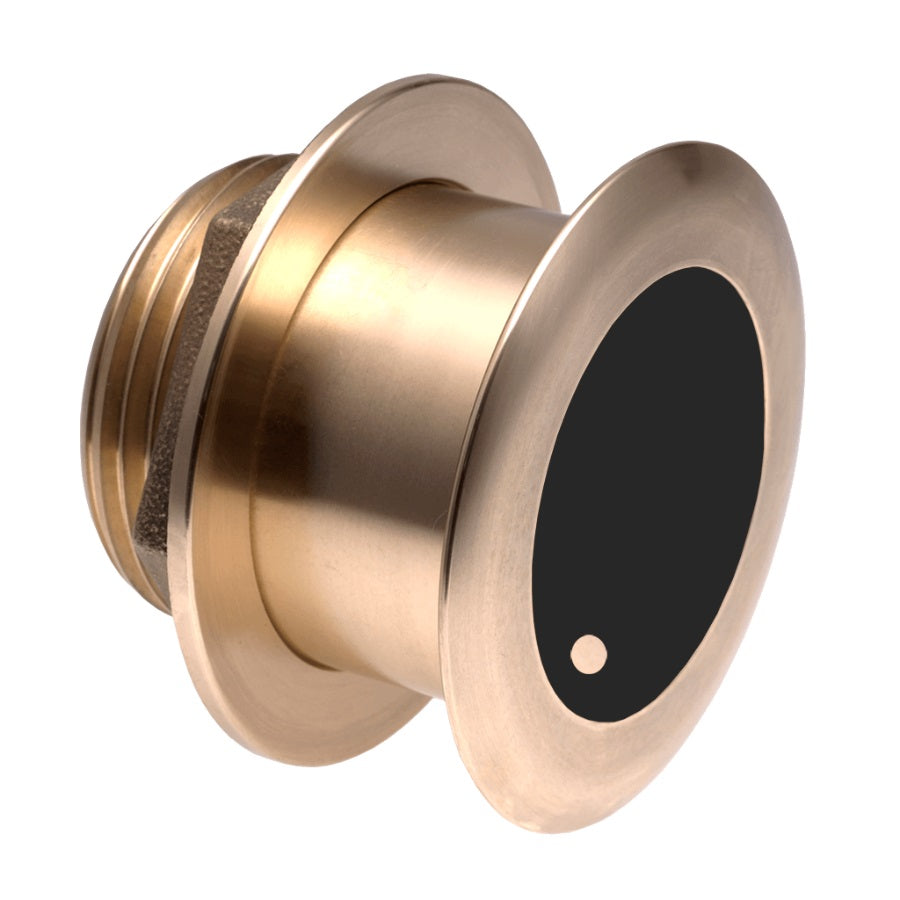

B175MW – 1 kW Bronze (20° Tilt)
- Same performance as SS175MW, bronze housing for fiberglass and wood hulls.
- Superior beam width and CHIRP clarity for deep‑targeting and pelagic fishing.

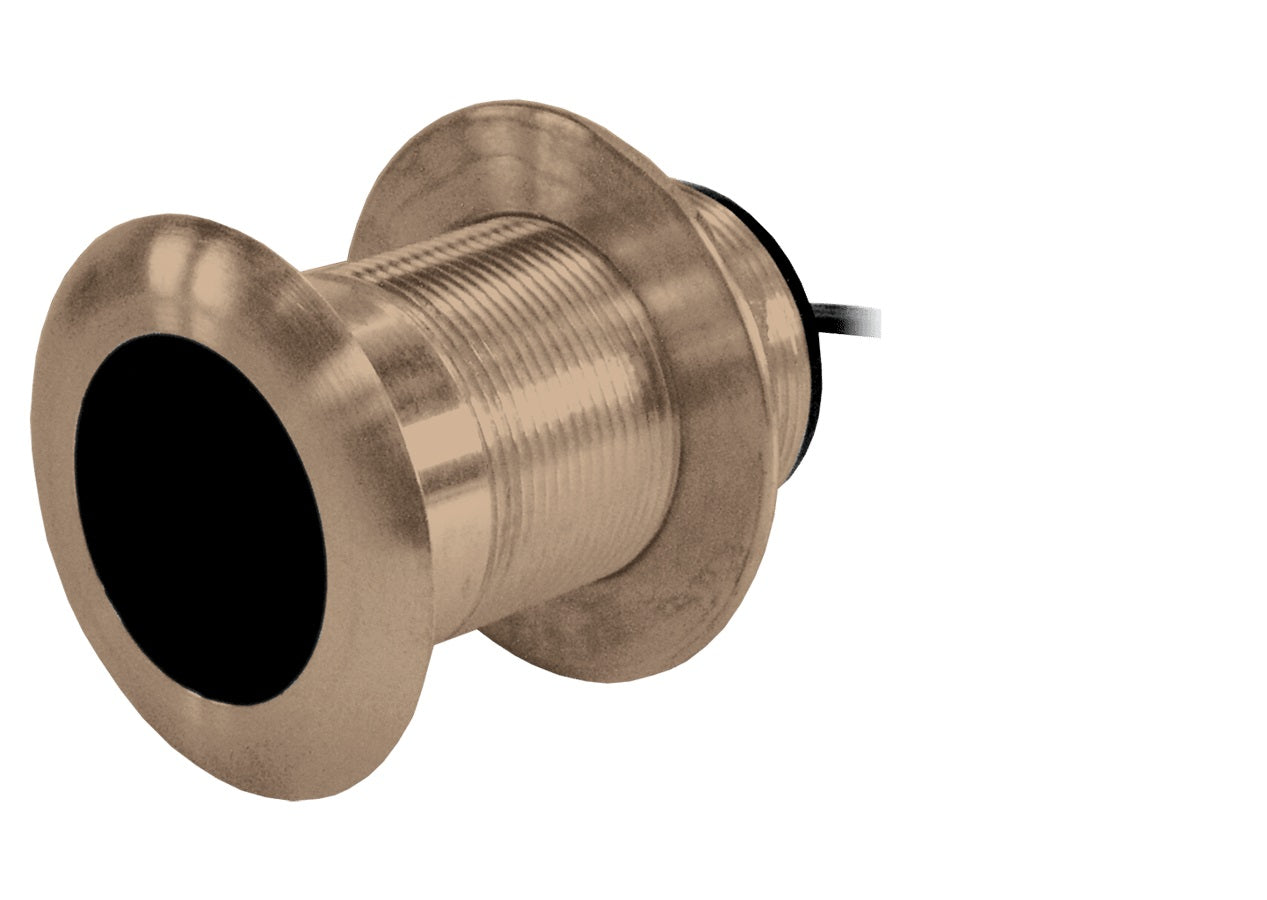

B150M – 300 W Medium (20° Tilt)
- 95–155 kHz frequency range with narrow 26°–17° beam.
- Excellent choice for inshore and coastal fishing down to 183 m (600 ft).
- Compact, low‑profile design for smaller planing or trailered vessels.
