Raymarine TM185 1Kw Depth and Temperature CHIRP Transom Mount Series.

Raymarine TM CHIRP Transom Mount Transducer Series
High‑Performance Depth and Temperature Transducers by AIRMAR®

Raymarine’s TM CHIRP transducers from AIRMAR® deliver exceptional target definition, true CHIRP clarity, and wide coverage for anglers and yachtsmen. Each model is optimized for specific depth ranges and fishing applications using AIRMAR’s Xducer ID® technology, which provides automatic calibration and peak performance with compatible CHIRP sonar modules. Compact urethane housings and stainless brackets make these transducers ideal for smaller planing or trailered boats where a thru‑hull installation is not practical.

Model Numbers

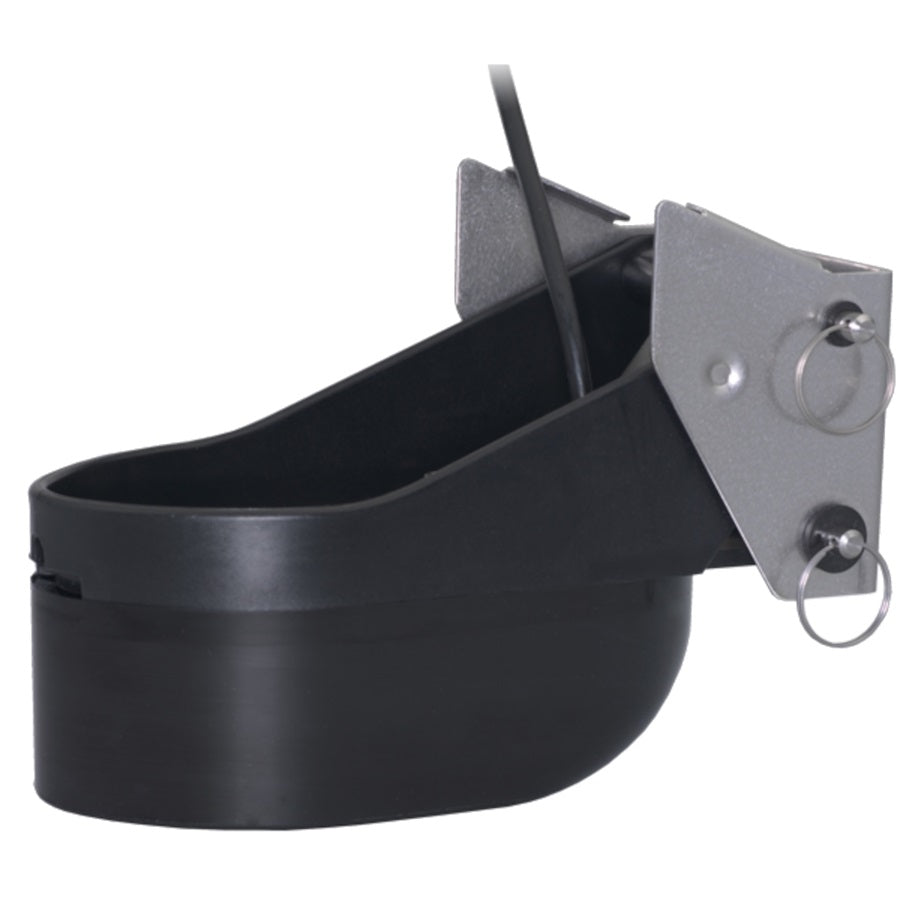

- TM185MW – 1 kW Medium Ultra‑Wide CHIRP Transducer – Model: A80803
- TM185HW – 1 kW High‑Wide CHIRP Transducer – Model: A80804

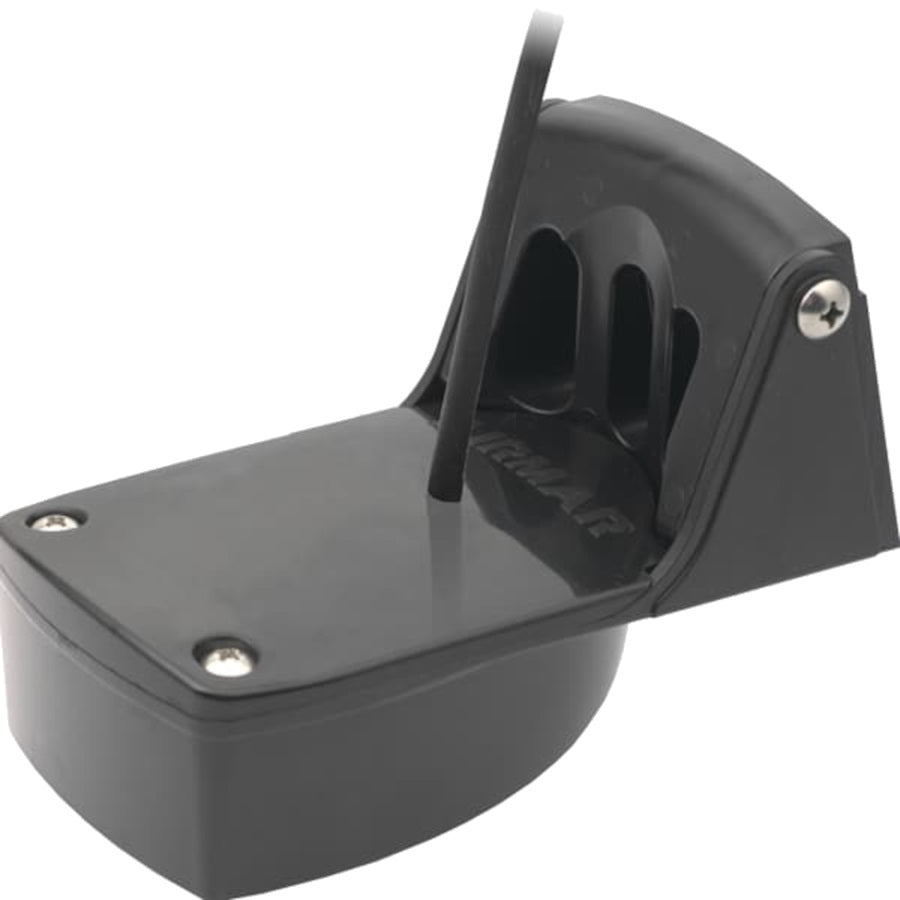

- TM150M – 300 W Medium CHIRP Transducer – Model: A80806

Key Features

- Depth and temperature sensing with fast response.
- CHIRP‑ready clarity for superior target separation.
- Compatible with fiberglass, metal, and wood hulls.
- Sturdy, low‑profile design for planing and trailered boats.
- Simple transom installation with urethane or stainless construction.
- Patented Xducer ID® technology for automatic recognition and setup.

Model Comparison

Product Highlights

TM185MW – Medium Ultra‑Wide
- 60–100 kHz band with ultra‑wide beam (57°–73°).
- Covers more water for mid‑depth and pelagic species.
- Depth tracking to 400 m (1,300 ft).

TM185HW – High‑Wide
- 150–250 kHz band with fixed 25° beam.
- Superior shallow‑water detail and dual column coverage.
- Ideal for up to 10 m boats, planing or displacement hulls.

TM150M – Medium (Compact CHIRP)
- 95–155 kHz medium‑band with narrow beam angles.
- Excellent target clarity for inshore or freshwater fishing.
- Suited for boats up to 8 m (26 ft).
