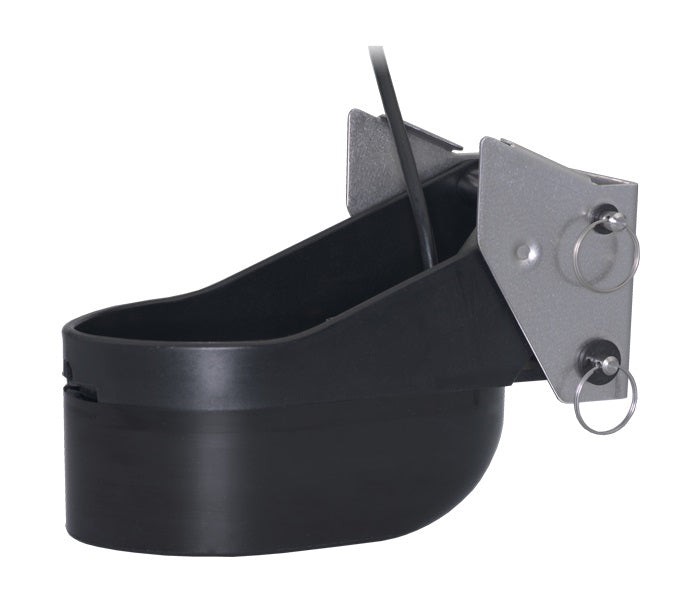

Raymarine TM265LH Transom Mount Chirp Transducer

Product Description

Raymarine TM265LH Transom Mount CHIRP Transducer delivers dual-frequency sonar for depth and temperature measurement in marine applications.

Product Overview

Powerboats from 25-40 feet use this externally mounted transducer on fiberglass, wood, or metal hulls for CHIRP fishfinding and navigation. It provides wide coverage in shallow water via high band and deep-water penetration via low band.

Key Specifications

• Dual CHIRP: Low 42-65 kHz (25°-16° beam), High 130-210 kHz (10°-6° beam).

• 1 kW RMS power handling with 10m (33 ft) cable.

• Transom mount for 0-25° deadrise angles.

• Urethane housing with stainless steel bracket.

Technical Specifications

• Maximum depth: 3,000 ft (low), 1,000 ft (high).

• 8 internal broadband ceramics for 103 kHz total bandwidth.

• Compatible with CP450C, CP470, CP570 sonar modules.

• Hull types: fiberglass, wood, metal; outboard/I/O installations.

What's in the Box

• TM265LH transducer with 10m cable.


• TM265LH transducer with 10m cable.

• Stainless steel mounting bracket and hardware.

• No fairing block included.
