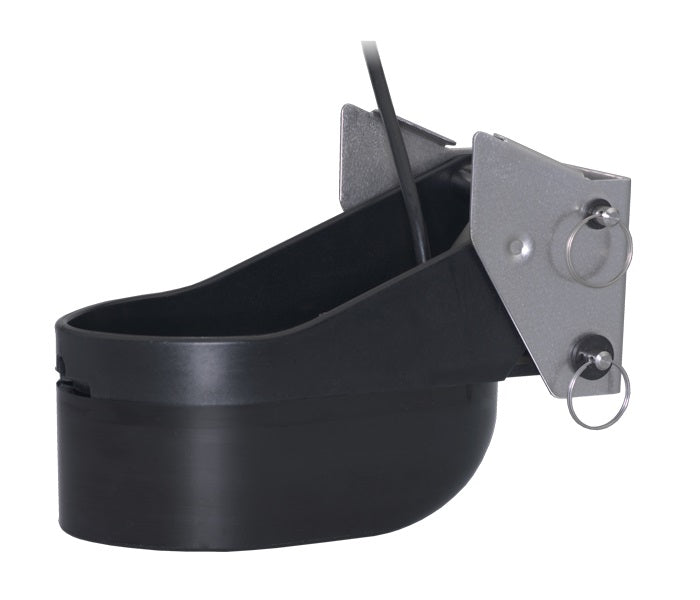

Raymarine TM265LM Transom Mount Chirp Transducer

Product Description

Raymarine TM265LM Transom Mount CHIRP Transducer provides dual low-medium frequency sonar for depth and temperature sensing.

Product Overview

This transducer mounts externally on transoms of 25-40 ft powerboats with fiberglass, wood, or metal hulls for CHIRP fishfinding. It excels in mid-depth performance with popular frequencies covering baitfish and bottom structure during marine navigation.

Key Specifications

• Dual CHIRP: Low 42-65 kHz (25°-16° beam), Medium 85-135 kHz (16°-11° beam).

• 1 kW RMS power with 10m (33 ft) cable.

• Stainless steel bracket for 3°-28° deadrise transoms.

• Urethane housing for corrosion resistance.

Technical Specifications

• Maximum depth: 3,000 ft (low), 1,500 ft (medium).

• 73 kHz total bandwidth with 8 broadband ceramics.

• Compatible with CP450C, CP470, CP570 sonar modules.

• Supports outboards, I/O, jet drives up to 40 ft LOA.

What's in the Box

• TM265LM transducer with 10m cable.

• Stainless steel transom bracket and mounting hardware.

• No fairing block required.
